Help CenterIW-60 Hydraulic Manual Punching Machine
Related Products
-
Q35Y-30 Combined Steel Hole Punching MachineUS$ 17,698 - 18,998MOQ: 1 Set -
Q35Y-25 Combined Universal Steel Punching MachineUS$ 16,698 - 17,898MOQ: 1 Set
-
Q35Y-20 Universal Manual Hole Punching MachineUS$ 7,398 - 7,998MOQ: 1 Set
-
Q35Y-16 Combined Universal Hydraulic Hole Punching MachineUS$ 7,198 - 7,698MOQ: 1 Set
-
Q35Y-20 Universal Hydraulic Profile Bending MachineUS$ 7,398 - 7,998MOQ: 1 Set
Specifications
1.IW-60 hydraulic manual punching machinebined
3.single cylinder
4.universal
5.ISO9001

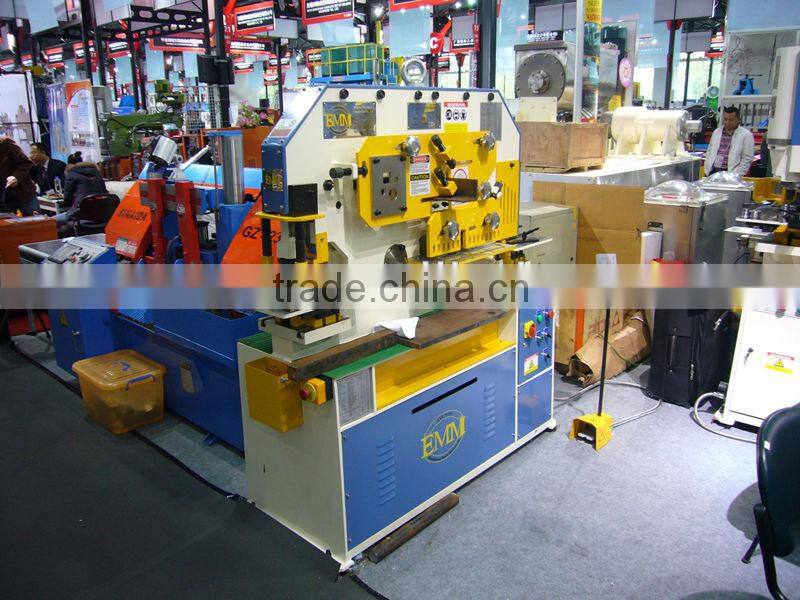

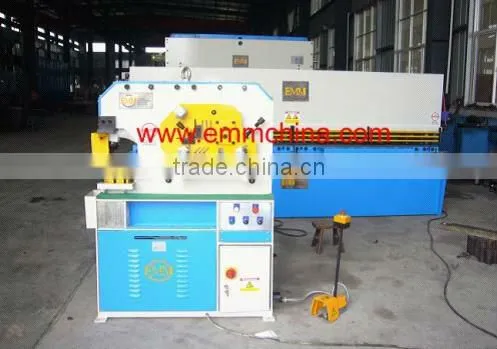

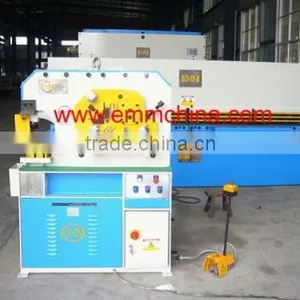

IW-60 hydraulic manual punching machine
Products Special Benefits advantage Feature of IW-60 hydraulic manual punching machine

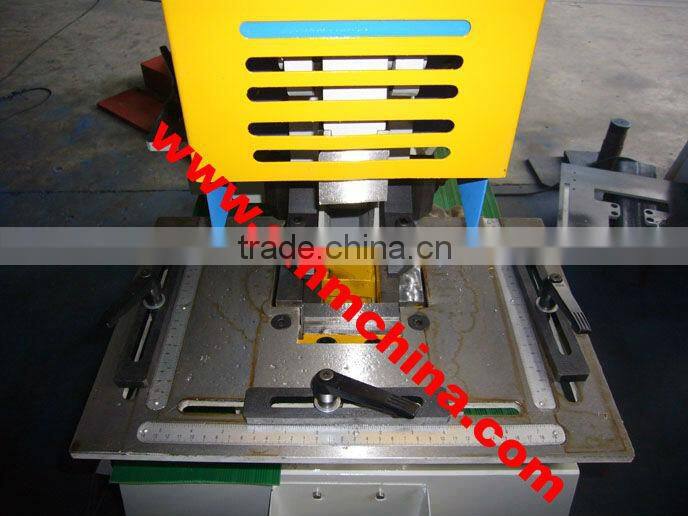

The universal machines are supplied with standard tooling include repetition support table at punching, shearing and notching stations and with easily adjust hold down at five stations to safely and control the operations, comprehensive safety guards are fitted as standard on all working stations.
Free standing on suitable floor, the ironworker machines just require electrical connection to be ready for work. For two operator utilization, the hydraulic system is activated by two shielded for switch control , one operating the punching end cylinder, the other operating shearing end cylinder, the shear cylinder provides the power to three shearing stations and notching station.
The system gives precision accurate power inching at all give five works stations and allows the ironworker machine to be stop at any position giving safe and accurate tool setting and working positioning. Limit switches at both ends of the machine control stroke length at all stations.
Technical Specification of IW-60 hydraulic manual punching machine
| NO | Item | Hydraulic Ironworker | Unit in mm | Force (60Ton) |
| IW-60 | ||||
| 1 | Flat plateshearing | Angle of shearing | ° | 8° |
| Max. shearing thickness | mm | 15 | ||
| Flat bar | (W×T) mm | 200*15 | ||
| 300*15 | ||||
| 2 | Notching | Thickness | mm | 8 |
| Width | mm | 42 | ||
| Depth | mm | 100 |
standard export packing with steel pallet of IW-60 hydraulic manual punching machine .
Presale Service
We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
Service during the Sale
1. We are manned with professional salesmen and technicians to provide the information, technical support and the optimal solutions with high cost performance.
2. Based on the specific requirements of customers and the lead time, we will formulate a rigorous operation process. Through the close cooperation of Commodity Department, Sales Department, Technical Department and the Ocean Shipping Department, we are devoted to timely supplying customers with superior machines.
3. Generally, certain quantity of quick-wear parts will be delivered with the goods. The delivery deadline depends on the specific order, which is usually within 1 to 3 months.
After-Sale Service
1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the
warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
1. What's the function of the IW-60 hydraulic manual punching machine?
Re: This machine can punching ,shearing,notching, bending different kind of workpiece.
