Help CenterQ35Y-30 Combined Steel Hole Punching Machine
Related Products
-
Q35Y-25 Combined Universal Steel Punching MachineUS$ 16,698 - 17,898MOQ: 1 Set -
Q35Y-20 Universal Manual Hole Punching MachineUS$ 7,398 - 7,998MOQ: 1 Set
-
Q35Y-16 Combined Universal Hydraulic Hole Punching MachineUS$ 7,198 - 7,698MOQ: 1 Set
-
Q35Y-20 Universal Hydraulic Profile Bending MachineUS$ 7,398 - 7,998MOQ: 1 Set
-
Q35Y-40 Metal Punching MachineUS$ 7,300 - 15,000MOQ: 1 Set
Specifications
1.Q35Y-30 combined steel hole punching machinebined
3.dual cylinder
4.universal
5.ISO9001

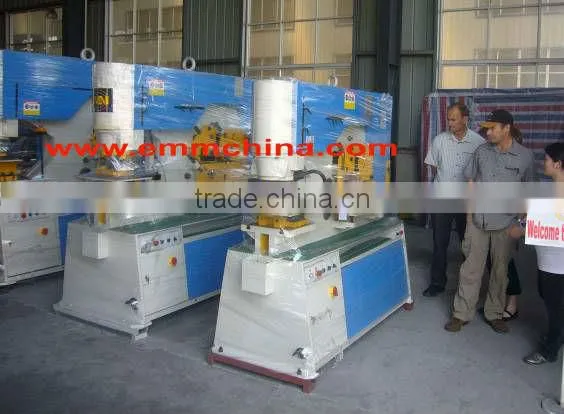

Q35Y-30 combined steel hole punching machine
Products Special Benefits advantage Feature
1.The hydraulically driven double cylinder hydraulic ironworker is the up-to-date product in the domestic industry of punching and shearing machine.
2.The double hydraulic stations work independently.Due to 5 stations,multiple processing models are obtainable.
3.The whole machine is configured with standard punching station,shearing station of U and angle steel,shearing station of thick plates,cutting-off station of round and square as well as chamfering station.
4.Components for large hole punching,plate bending U and structural steel punching as well as chamfering od shutters and tubes are optionally available.
5.Manufactured by the advanced European technology,this machine is integrally structured by means of welding and treated with hightemperature quenching.Hence,it has high rigidity and strength.Additionally,since processed with special high temperature vacuum treatment,the tool life is largely extended.
Q35Y-30 combined steel hole punching machine is a machine tool integrating sheet metal cutting, punching, plate shearing, bending and other functions. Having the virtues of easy operation, low consumption and low maintenance cost, it is designed via the latest technology and with laser positioning function to better cater for market demands. Besides, it is configured with automatic press device and temperate control radiator, and has become the first choice for metal processing of modern manufacturing industries(such as the metallurgy, bridge, communication, electric power, military and other industries).
The double cylinder Q35Y-30 combined steel hole punching machine enables shearing, punching and die cutting of plates and square,round ,U,angle and I steel as well as various structural steel materials. It is the first choice for mass processing of structural steel materials,and capable of bending the plates with the length of less than 500mm.The punching part is designed with a protective cover and the automatic stop gauge is mounted onto the machine back.We promise that all the components are provided in line with the highest quality requirements in safety,function,maintenance and performance aspects
Technical Specification of Q35Y-30 combined steel hole punching machine
| Specification | Q35Y-25 | Q35Y-30 |
| Punching station | ||
| Punching maximum capacity | 35x25 | 38x30 |
| Stroke Ram length | 80 | 80 |
| Deep Throat Standard | 400(optional 600) | 600 |
| Punching Largest hole (Optional) | 160 | 160 |
| Working height | 1142 | 1209 |
| Shearing | ||
| Flat Plate Shearing Maximum | 330x25 | 355x30 |
| Flat Plate Shearing Maximum | 600x16 | 600x20 |
| Blade length | 620 | 610 |
| Angle Flange Trim Maximum 45° | 100x14 | 100x16 |
| Working Height | 851 | 900 |
| Angle Cutting Station | ||
| 90° Miter (True Interior /Exterior ) | 160x15 | 180x16 |
| 45° Miter (True Interior /Exterior ) | 80x10 | 70x10 |
| Working Height | 1220 | 1220 |
standard export packing with steel pallet of Q35Y-30 combined steel hole punching machine .
Presale Service
We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
Service during the Sale
1. We are manned with professional salesmen and technicians to provide the information, technical support and the optimal solutions with high cost performance.
2. Based on the specific requirements of customers and the lead time, we will formulate a rigorous operation process. Through the close cooperation of Commodity Department, Sales Department, Technical Department and the Ocean Shipping Department, we are devoted to timely supplying customers with superior machines.
3. Generally, certain quantity of quick-wear parts will be delivered with the goods. The delivery deadline depends on the specific order, which is usually within 1 to 3 months.
After-Sale Service
1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the
warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
1. What's the function of the Q35Y-30 combined steel hole punching machine?
Re: This machine can punching ,shearing,notching, bending different kind of workpiece.
