Q35Y-16 combined universal hydraulic hole punching machine

Specifications

1.Q35Y-16 combined universal hydraulic hole punching machine
bined
3.dual cylinder
4.universal
5.ISO9001

Q35Y-16 combined universal hydraulic hole punching machine





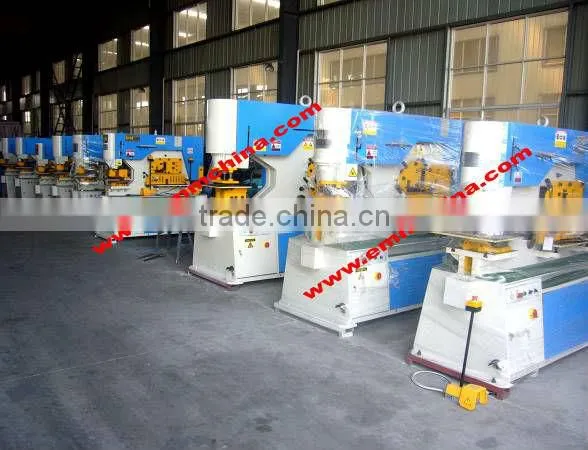

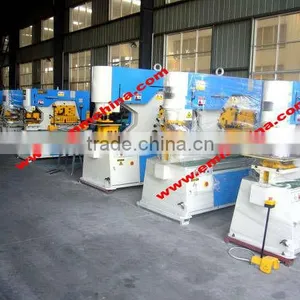

Q35Y-16 combined universal hydraulic hole punching machine can be used for punching, shearing, notching, bending and other metal fabricating functions. EMM’s special tooling department can design any special tool you need for your metal fabricating needs.



The Ironworker is the most used and most versatile machine a person can have in their manufacturing or fabrication shop, maintenance department or vocational school. Ironworkers save time, increase productivity, eliminate waste and create clean smooth cut.



EMM’s universal multi – function Ironworker machine for production purposes with maximum efficiency and minimum deformation. The Q35Y-16(60ton) pressure machines are in the EMM’s tradition of well engineered, robust steelworkers built for long working life.



The universal machines are supplied with standard tooling include repetition support table at punching, shearing and notching stations and with easily adjust hold down at five stations to safely and control the operations, comprehensive safety guards are fitted as standard on all working stations.



Free standing on suitable floor, the ironworker machines just require electrical connection to be ready for work. For two operator utilization, the hydraulic system is activated by two shielded for switch control , one operating the punching end cylinder, the other operating shearing end cylinder, the shear cylinder provides the power to three shearing stations and notching station.



The system gives precision accurate power inching at all give five works stations and allows the ironworker machine to be stop at any position giving safe and accurate tool setting and working positioning. Limit switches at both ends of the machine control stroke length at all stations.



Centralized lubrication is meter by one – Shot system, being only one feature of the low maintenance requirement.





Technical Specification and Capacities Q35Y-16 combined universal hydraulic hole punching machine



Specification	Q35Y-16	Q35Y-20
Punching station
Punching maximum capacity	25x16	30x20
Stroke Ram length	80	80
Deep Throat Standard	300	355
Punching Largest hole (Optional)	160	160
Working height	1030	1084
Shearing
Flat Plate Shearing Maximum	250x16	330x20
Flat Plate Shearing Maximum	400x8	480x10
Blade length	410	485
Angle Flange Trim Maximum 45°	100x10	100x13
Working Height	890	894
Angle Cutting Station
90°  Miter (True Interior /Exterior )	125x12	140x14
45°  Miter (True Interior /Exterior )	70x10	70x10
Working Height	1130	1180
Section Cutting Station
Round Bars/ Square Bars Maximum Diameter	45/40	50/45
Channel /I Beams ( Optional )	126x53	160x65
Tee ( Optional )	90x12	90x12
Notching Station
Material thickness	10	12
Width - Rectangle	57	57
Depth - Rectangle	60-90	60-90
Angle Flange – Maximum Profile	100x10	100x12
Working Height	900	900





 Re: This machine can punching ,shearing,notching, bending different kind of workpiece.
