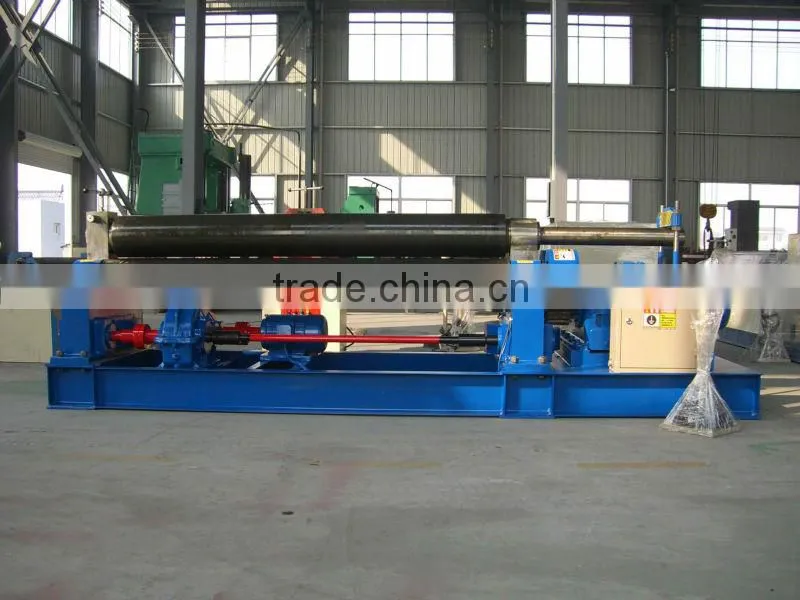

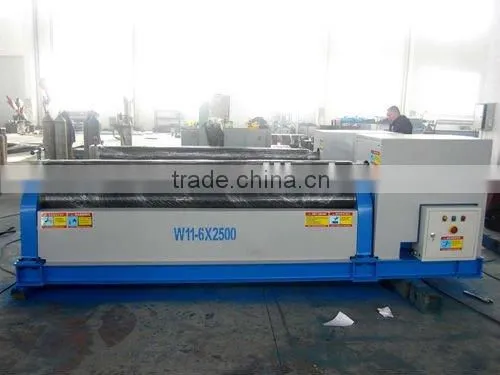

W11S-16x2500 upper roll machine for sale

Specifications

W11S-16x2500 upper roll machine for sale
1.NC control
2.Hydraulic system
3.Pre-bending function

W11S-16x2500 upper roll machine for sale



1 .Introduction



The machine is a kind of three-roller machine with liquid pressure for all-purposes. It can shape steel board into cylinder, U model etc.



The upper roller may move vertically or horizontally.



Pre-bend of steel board performs with movement of upper roller based on no symmetry of location. Round mode of steel performs by two down rollers with slowdown of running from electric machine



The down roller fix the height, so material can easily enter the machine and workers operate machine expediently.



Use the industrial touch screen, man-machine series of touch screen with PLC can achieve the best effect.



2 .Main technical parameter of the equipment



Part number	upper roller movement for all-purposes
Add pressure	100Tons
Max bending length	2500 mm
Diameter of upper roller	300 mm
Diameter of down roller	165 mm
Center distance	270 mm
Speed of roll	About 4 m/min
Quantity of supporting rollers	4
Group quantity of supporting rollers	2
Power of main motor	15 KW
Power of hydraulic motor	5.5 KW
Power of removable motor	1.5KW
Sensor	Guangzhou
PLC	Siemens
Valve	Taiwan
