Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > W11-6*2500 Sheet Metal Bending Rolling Machine

W11-6*2500 Sheet Metal Bending Rolling Machine

US$ 8,500 - 12,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

EMM

Contact Supplier Request Quote Chat Now

Extreme Machinery Manufacture Co., Ltd. (Jingjiang)

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name EMM

Model Number W11-6*2500

Machine Type Other, plate rolling machine

Raw Material Sheet / Plate Rolling

Material / Metal Processed Carbon Steel

Power Other, mechanical

Automation Other, NC

Extra Services End Forming

Certification ISO 9001:2000

After-sales Service Provided Engineers available to service machinery overseas

Specifications

W11-6*2500 Sheet Metal Bending Rolling Machine
1.NC control
2.Pre-bending functions
3.Hydraulic system

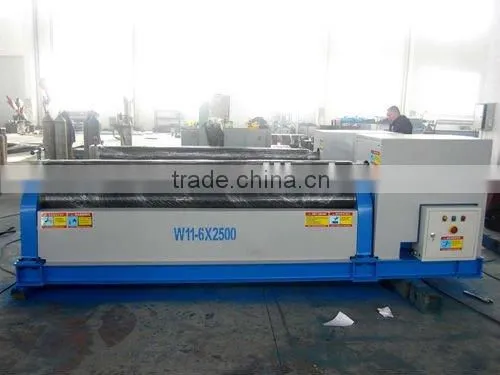

W11-6*2500 3 roller symmetrica plate rolling machine

Specifications and Characteristics:

This roller is in the form of three roller symmetrical type,the upper roller doing vertical movement between the center of two lower rpllers.Hydraulic action comes from oil through the hydraulic cylinder on the piston .The two rollers rotates through the decelerationthe machine's output gear meshing with the next roll teeth, provide torque to the roll sheet, this is a compact structure, easy operation and maintenance.

Main technical data:

W11-6x2500,the technical data as following :

Max thickness : 6mm

Max width : 2500mm

Yielding limit if sheet metal : 245Mpa

Diameter of top shaft: 210mm

Diameter of bottom shaft: 160mm

Central distance between bottom shafts: 250mm

Motor power: 5.5kw

Weight: 5800 kg

Dimension: 3710x1170x1310mm
