2014 High Quality Star Delta Timer Relay (SHC77A)
- 20000 Piece / Pieces per Month
- shanghai ningbo
- T/T Credit Card
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | saipwell/saip | Model Number: | SHC77A |
| Theory: | Electromagnetic Relay | Usage: | PCB | Size: | Miniature |
| Protect Feature: | Sealed | Contact Load: | Low Power |
Packaging Details
Standard Export Packing
Product Description
Specifications
star delta timer relay1.newly design
2.good quality
2014 High Quality Star Delta Timer Relay (SHC77A)
Star Delta Timer Relay Feature
1.Small volume, light weight, high sensitivity, long service life
2.Available in 2 groups,3 groups (10A)of contact conversion
3.Can provide a socket type mounted
4.Optional indicator and the diode

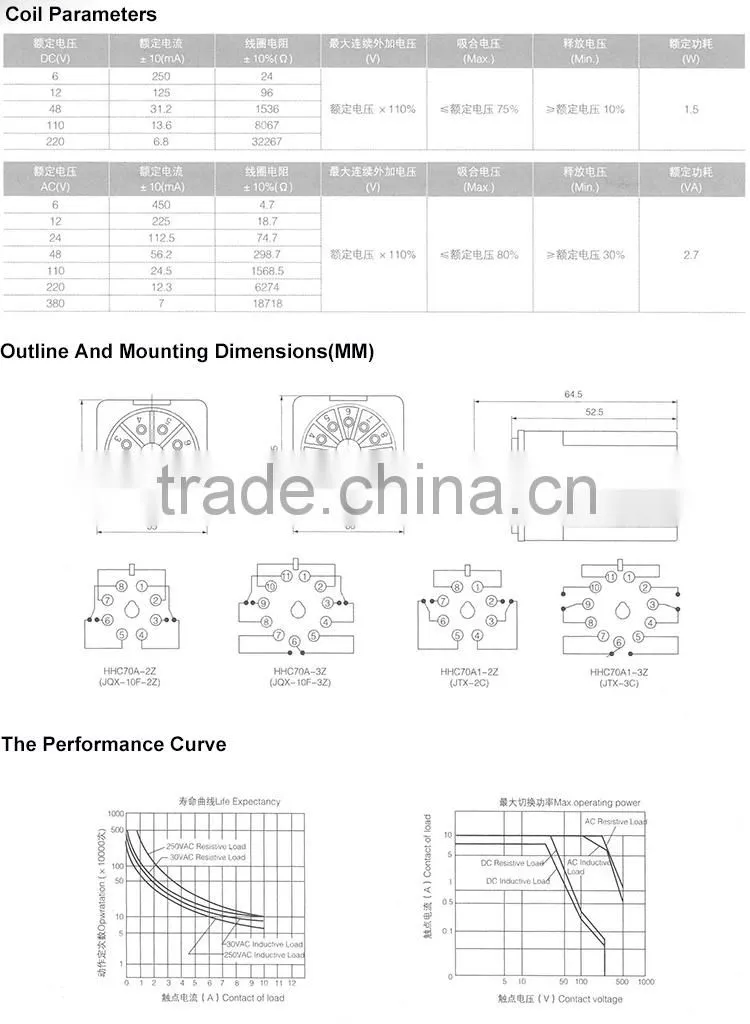

Star Delta Timer Relay Paramaters
Star Delta Timer Relay
| Contact | Form | 3Z,3H,3D 2Z,2H,2D, | |
| Rated Load (Resistive Leakage) | 10A, 240V/AC 28V/DC | ||
| Contact resistance (initial) | ≤100mΩ | ||
| Material | Silver alloy | ||
| Electric life | ≥105 | ||
| Machine life (300 times/min) | ≥107 | ||
| Max. allowed voltage (23℃) | DC:≤75%×rated voltage AC:≤80%×rated voltage | ||
| Release voltage ( 23℃ ) | DC:≥10%×rated voltage AC:≥30%×rated voltage | ||
| Maximum allowed voltage ( 23℃ ) | 110%×rated voltage | ||
| Norminal voltage | DC | DC:6v-220v | |
| AC | AC:6v-380v | ||
| Coil power | DC:1.8W | ||
| AC:2.7vA | |||
| Pick-up time (rated voltage) | ≤20ms | ||
| Release time (rated voltage) | ≤10ms | ||
| Initial withstand | Between same-pole contacts | 1200VAC/1min(leakage current:1mA) | |
| 1500VAC/1min(leakage current:1mA) | |||
| Between contact and coil | 2000VAC/1min | ||
| Insulation resistance | ≥100mΩ(500VDC) | ||
| Ambient temperature | -25℃~55℃ | ||
| Ambient humidity | 45%-75%RH | ||
| Atmospheric pressure | 86-106KPa | ||
| Resistance resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||
| Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | ||
| Installation | PCB, , Flange | ||
| Packing | Inner box | 10relays in each bubble box | |
| Outer case | 200relays in each case | ||
| Dimension of outer case | 398*198*318MM | ||
| Weight | Gross:15.2kg/box | ||
Star Delta Timer Relay

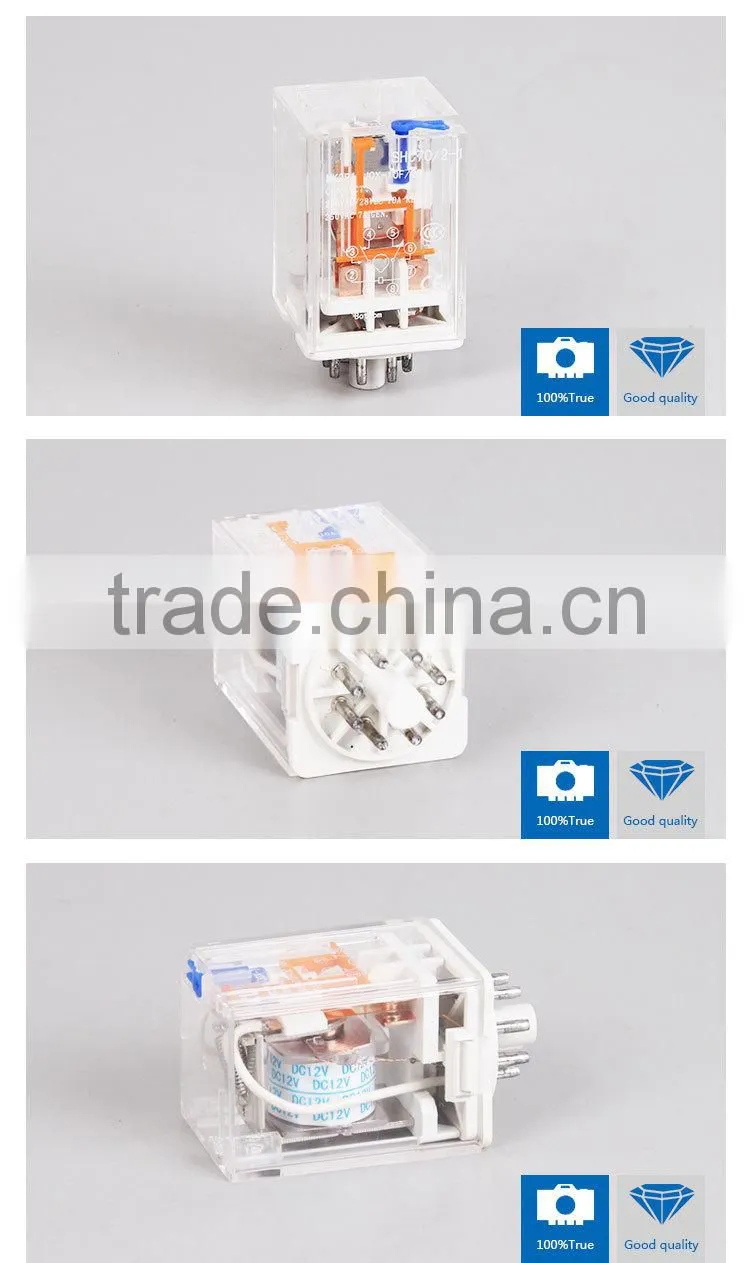

Star Delta Timer Relay Show
Star Delta Timer Relay
Star Delta Timer Relay
Star Delta Timer Relay Details
Star Delta Timer Relay
Star Delta Timer Relay
Star Delta Timer Relay Product
Star Delta Timer Relay
Star Delta Timer Relay
Certificate
Star Delta Timer Relay
Star Delta Timer Relay
