Specifications
12v timer relay1.newly design
2.good quality

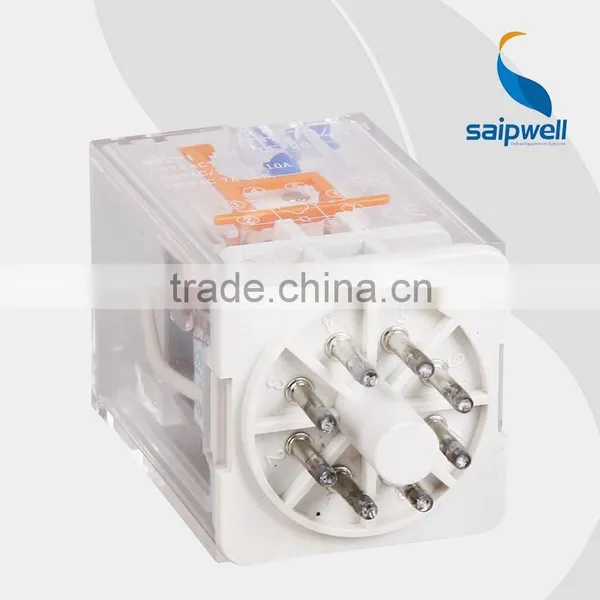

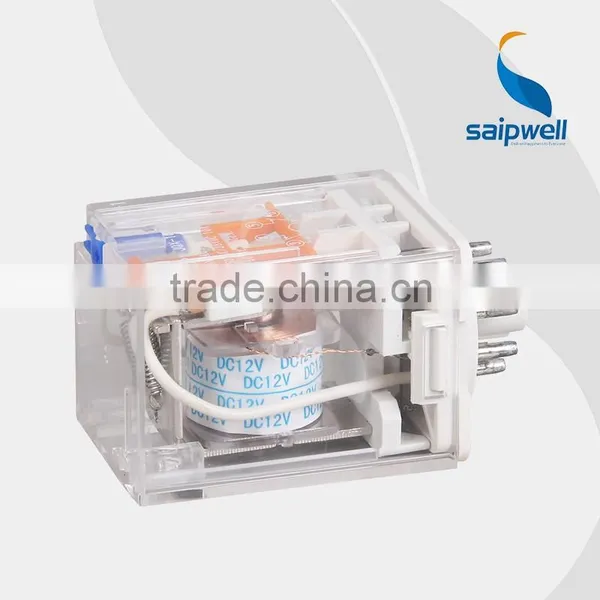

2014 High Quality 12V Timer Relay (SHC70-2-1)
12V Timer Relay Feature
1.Small volume, light weight, high sensitivity, long service life
2.Available in 2 groups,3 groups (10A)of contact conversion
3.Can provide a socket type mounted
4.Optional indicator and the diode
12V Timer Relay Paramaters
12V Timer Relay
| Contact | Form | 3Z,3H,3D 2Z,2H,2D, | |
| Rated Load (Resistive Leakage) | 10A, 240V/AC 28V/DC |
||
| Contact resistance (initial) | ≤100mΩ | ||
| Material | Silver alloy | ||
| Electric life | ≥105 | ||
| Machine life (300 times/min) | ≥107 | ||
| Max. allowed voltage (23℃) |
DC:≤75%×rated voltage AC:≤80%×rated voltage |
||
| Release voltage ( 23℃ ) |
DC:≥10%×rated voltage AC:≥30%×rated voltage |
||
| Maximum allowed voltage ( 23℃ ) | 110%×rated voltage | ||
| Norminal voltage | DC | DC:6v-220v | |
| AC | AC:6v-380v | ||
| Coil power | DC:1.8W | ||
| AC:2.7vA | |||
| Pick-up time (rated voltage) | ≤20ms | ||
| Release time (rated voltage) | ≤10ms | ||
| Initial withstand | Between same-pole contacts | 1200VAC/1min(leakage current:1mA) | |
| 1500VAC/1min(leakage current:1mA) | |||
| Between contact and coil | 2000VAC/1min | ||
| Insulation resistance | ≥100mΩ(500VDC) | ||
| Ambient temperature | -25℃~55℃ | ||
| Ambient humidity | 45%-75%RH | ||
| Atmospheric pressure | 86-106KPa | ||
| Resistance resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||
| Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | ||
| Installation | PCB, , Flange | ||
| Packing | Inner box | 10relays in each bubble box | |
| Outer case | 200relays in each case |
||
| Dimension of outer case | 398*198*318MM |
||
| Weight | Gross:15.2kg/box |
||
12V Timer Relay

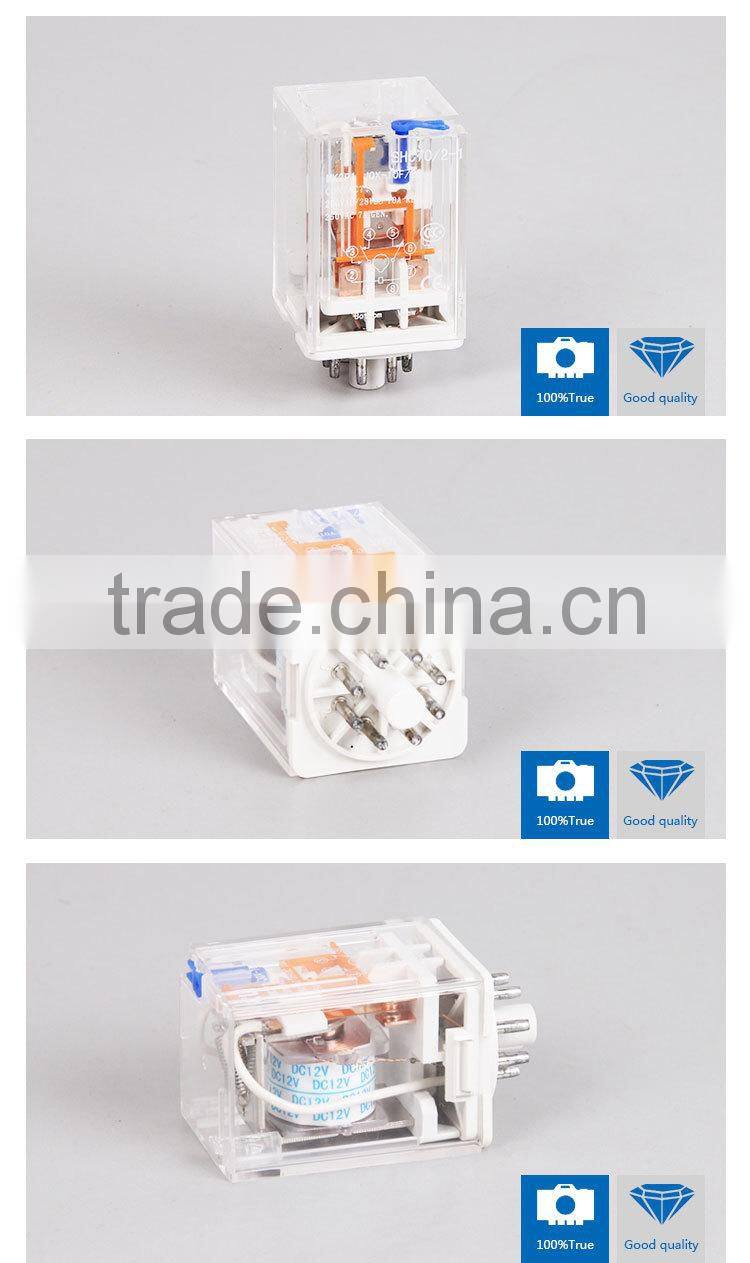

12V Timer Relay Show
12V Timer Relay
12V Timer Relay

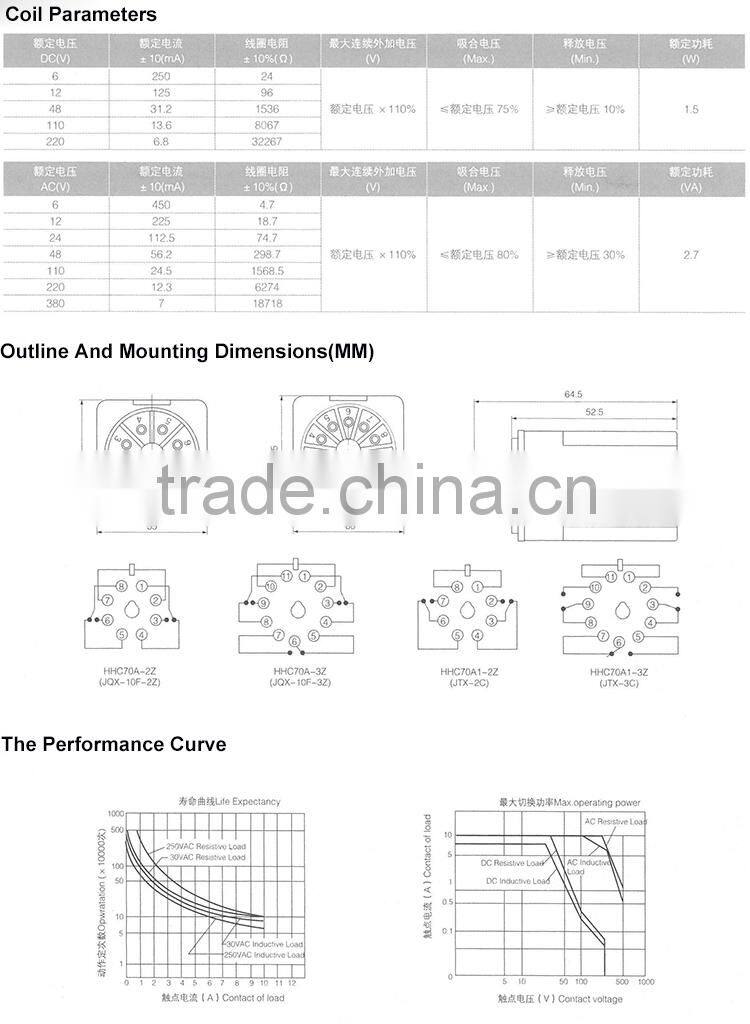

12V Timer Relay Details
12V Timer Relay
12V Timer Relay

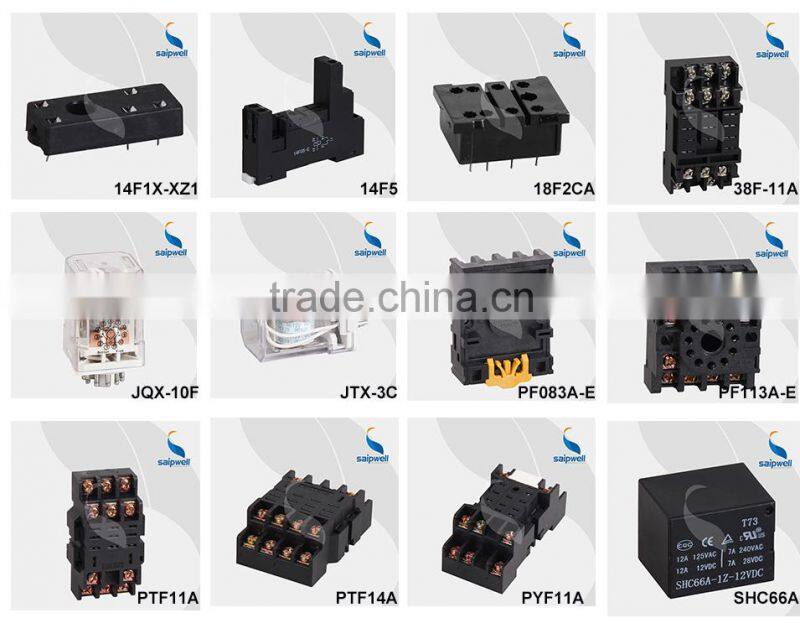

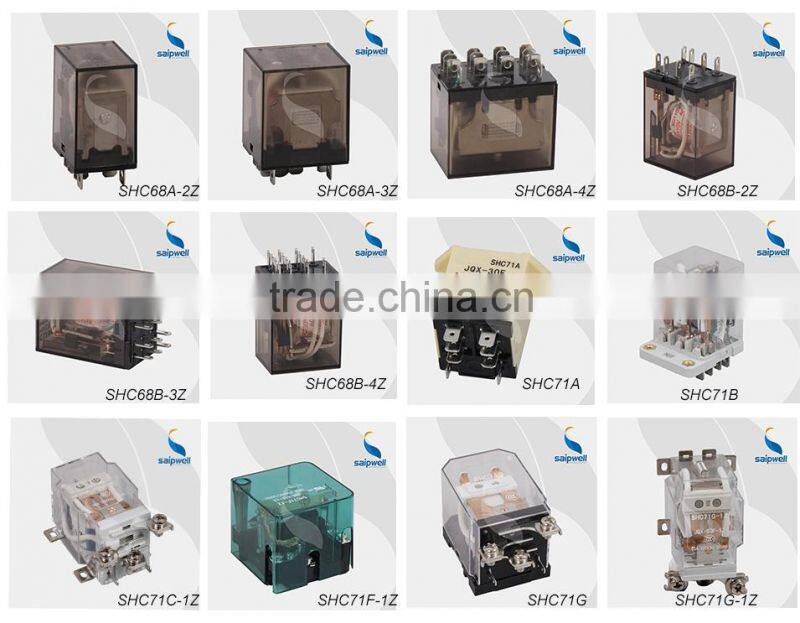

12V Timer Relay Product
12V Timer Relay
12V Timer Relay
Certificate
12V Timer Relay
12V Timer Relay
Saip Company
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments.
Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
We have 5 specialized branches,over 300 specialized cooperative partners.
Saip,an ISO9001 certificated enterprise.
With 20 years of development history, Zhejiang Saip Electric Co., Ltd. has become a modern enterprise integrating the production,sale with research.
