Water Heater Element With Thermostat SM010
US$ 0.1 - 1
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Saip
Model Number:
SM010
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
kt 011 ZR011US$ 0.1 - 1MOQ: 100 Pieces -
Floor Heating Wireless Thermostat FTO011US$ 0.1 - 1MOQ: 100 Pieces
-
Cold Room Temperature Controller SP-7000US$ 0.1 - 1MOQ: 100 Pieces
-
Touch Screentemperature Room Thermostat SP-7000US$ 0.1 - 1MOQ: 100 Pieces
-
Programmable Thermostat for Floor Heating ZR011US$ 0.1 - 1MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
Saip
Model Number
SM010
Protection Level
IP66
Type
Switch Box
Specifications
water heater element with thermostat SM0101.High DC breaking capacity
2.Adjustable temperature
3.Low hysteresis
water heater element with thermostat SM010
Product Features:
1. High DC breaking capacity
2. Adjustable temperature
3. Low hysteresis
4. Change-over contact
5. Clip fixing
Electronic relay for switching DC appliances with high switching capacity. A separate conventional switch contact is used as controller
(e.g. temperature regulator,humidity regulator). The electronic relay is available in 24VDC and 48VDC versions.
Technical Data
| Contact type | contact maker, normally open (Relay/MOSFET) |
| Contact resistance | <10Ω |
| Service life | >100,000 cycles |
| EMC | acc. to EN 55014-1-2,EN 61000-3-2,EN 61000-3-3 |
| Connection | 6-pole terminal, clamping torque 0.5Nm max.:rigid wire 2.5mm² |
| Mounting | clip for 35mm DIN rail,EN60715 or for exit filter EF 118 Series |
| Casing | plastic according to UL94 V-0,light grey |
| Dimensions | 67x50x46mm |
| Weight | approx. 85g |
| Fiting position | variable |
| Operating/Storage temperature | -20 to +80(-4 to +176°C) |
| Protection type | IP20 |
| Art. No. | Operating voltage | Max. Switching capacity |
| 01001.0-00 | 24VDC(20-28VDC) | 28VDC 16A |
| 01000.0-00 | 48VDC(38-56VDC) | 56VDC 16A |
Pictures:
Appearance:
water heater element with thermostat
water heater element with thermostat

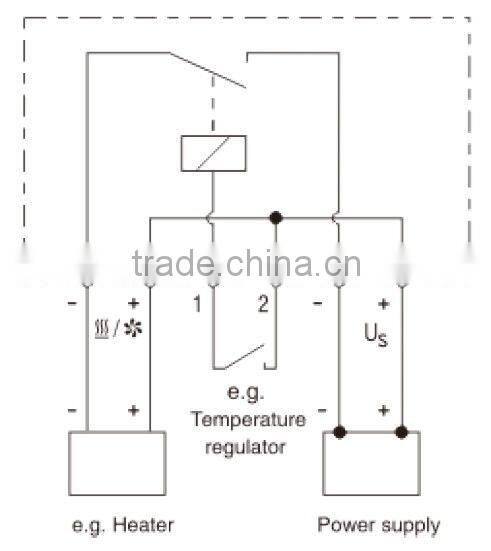

Connection:
water heater element with thermostat
Certificate:
water heater element with thermostat
Saip Company:
water heater element with thermostat
The other more details you also could viste our website () or contact us directly.Contact Information:
