Floor Heating Wireless Thermostat FTO011

Floor Heating Wireless Thermostat FTO011 thumbnail-1
Floor Heating Wireless Thermostat FTO011 photo-1
US$ 0.1 - 1 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Saip
Model Number:
FTO011
Contact Supplier Request Quote Chat Now
Yueqing Saip Electric Company Limited
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Saip
Model Number FTO011
Protection Level IP66
Type Switch Box
External Size 67 x 50 x 46

Specifications

floor heating wireless thermostat FTO011
1.High DC breaking capacity
2.Adjustable temperature
3.Low hysteresis

floor heating wireless thermostat FTO011

Product Features:

1. High DC breaking capacity
2. Adjustable temperature
3. Low hysteresis
4. Change-over contact
5. Clip fixing

Contact breaker / NC (red casing) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value.

The contact opens when temperature is rising.
Technical Data

Switch temperature difference

7K (± 4K tolerance)

Sensor element

thermostatic bimetal

Contact type

snap-action contact

Service life

> 100,000 cycles

Max. Switching capacity

250VAC, 10 (2) A

120VAC, 15 (2) A

DC 30W

EMC

acc.to EN 55014-1-2,EN61000-3-2,EN61000-3-3

Connection

2-pole terminal for 2.5mm2,torque 0.8Nm max.

Mounting

clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series)

Casing

plastic according to UL94 V-0, light grey

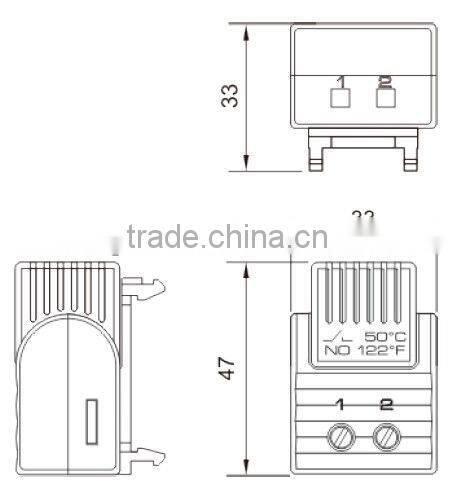

Dimensions

60 x 33 x 43mm

Weight

approx. 40g

Fitting position

variable

Operating / Storage temperature

-20 to +80°C (-49 to +176°F)

Operating / Storage humidity

max. 90 % RH (non-condensing)

Protection type

IP20


Art. No.Contact typeSwitch-off temperature
01160.0-00Contact breaker (NC)+15°C / +59°F (± 5K tolerance)
01160.0-01Contact breaker (NC)+25°C / +77°F (± 5K tolerance)
  Switch-on temperature
01161.0-00Contact maker (NO)+50°C / +122°F (± 6K tolerance)
01161.0-01Contact maker (NO)+60°C / +140°F (± 6K tolerance)
01161.0-02Contact maker (NO)+35°C / + 95°F (± 6K tolerance)

Pictures:

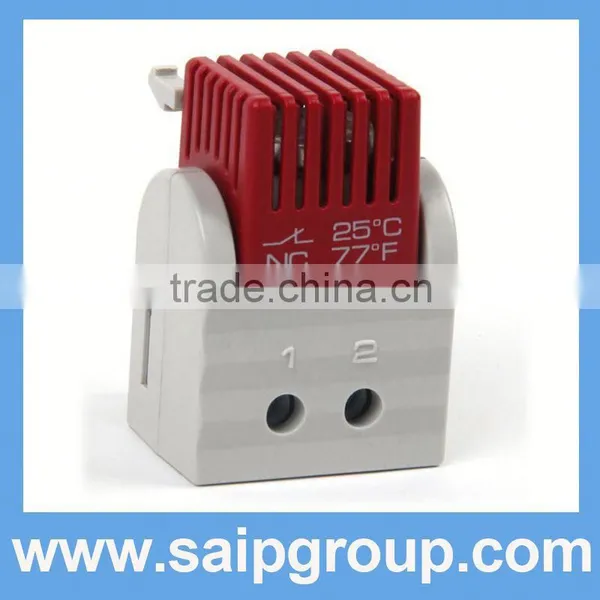

Appearance:

floor heating wireless thermostat

floor heating wireless thermostat

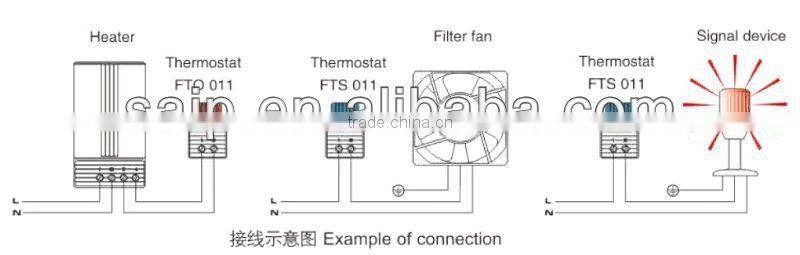

Connection:



floor heating wireless thermostat

Certificate:

floor heating wireless thermostat

Saip Company:

floor heating wireless thermostat

The other more details you also could viste our website () or contact us directly.
