Help Centerkt 011 ZR011
US$ 0.1 - 1
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Saip
Model Number:
ZR011
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Floor Heating Wireless Thermostat FTO011US$ 0.1 - 1MOQ: 100 Pieces -
Cold Room Temperature Controller SP-7000US$ 0.1 - 1MOQ: 100 Pieces
-
Touch Screentemperature Room Thermostat SP-7000US$ 0.1 - 1MOQ: 100 Pieces
-
Programmable Thermostat for Floor Heating ZR011US$ 0.1 - 1MOQ: 100 Pieces
-
Stainless Steel Mail Box SP-1GBUS$ 0.1 - 1MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
Saip
Model Number
ZR011
Protection Level
IP66
Type
Switch Box
Specifications
kt 011 ZR0111.High DC breaking capacity
2.Adjustable temperature
3.Low hysteresis
kt 011 ZR011
Product Features:
1. High DC breaking capacity
2. Adjustable temperature
3. Low hysteresis
4. Change-over contact
5. Clip fixing
Technical Data
| Switch temperature difference | 7K (± 4K tolerance) |
| Sensor element | thermostatic bimetal |
| Contact type | snap-action contact |
| Service life | > 100 000 cycles |
| Max. switching capacity | 250VAC, 10 (2) A |
| 120VAC, 15 (2) A | |
| DC 30W | |
| Connection | 4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
| Mounting | clip for 35mm DIN rail, EN60715 |
| Casing | plastic according to UL94 V-0. light grey |

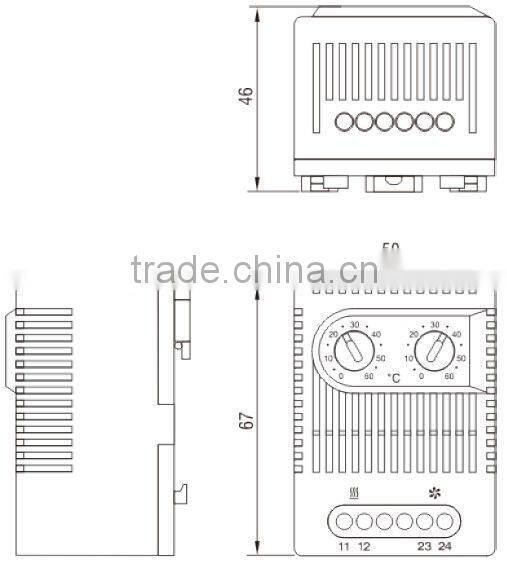

| Dimensions | 67 x 50 x 46mm |
| Weight | approx. 90g |
| Fitting position | variable |
| Operating/Storage temperature | -45 to +80°C (-49 to +176°F) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Protection type | IP20 |
| Art. No. | Setting range | Setting range | Setting range | Setting range |
| 01172.0-00 | contact breaker, normally closed | 0 to +60°C | contact maker, normally open | 0 to +60°C |
| 01172.0-01 | contact breaker, normally closed | +32 to +140°F | contact maker, normally open | +32 to +140°F |
| 01175.0-00 | contact breaker, normally closed | -10 to +50°C | contact maker, normally open | +20 to +80°C |
| 01175.0-01 | contact breaker, normally closed | +14 to +122°F | contact maker, normally open | +68 to +176 °F |
| 01176.0-00* | contact maker, normally open | 0 to +60°C | contact maker, normally open | 0 to +60°C |
| 01176.0-01* | contact maker, normally open | +32 to +140°F | contact maker, normally open | +32 to +140°F |
Pictures:

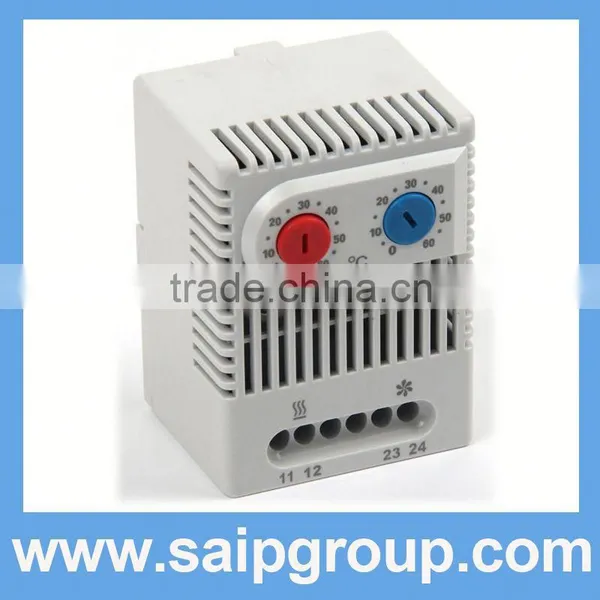

Appearance:
kt 011
kt 011

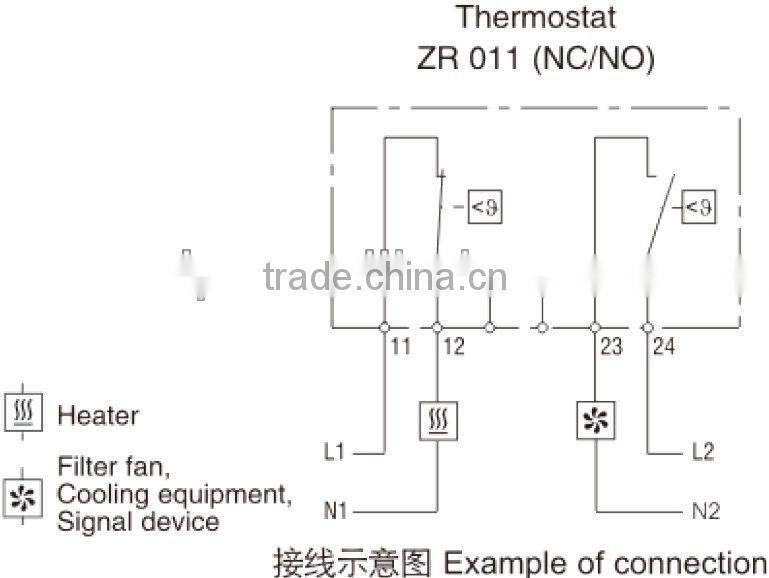

Connection:
kt 011
Certificate:
kt 011
Saip Company:
kt 011
The other more details you also could viste our website () or contact us directly.Contact Information:
Name:Cyril Hoo
Tel:0086-18067787935
Skype:saipwell508
QQ:2056872949
