Programmable Thermostat for Floor Heating ZR011

Programmable Thermostat for Floor Heating ZR011 thumbnail-1
Programmable Thermostat for Floor Heating ZR011 photo-1
US$ 0.1 - 1 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Saip
Model Number:
ZR011
Contact Supplier Request Quote Chat Now
Yueqing Saip Electric Company Limited
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Saip
Model Number ZR011
Protection Level IP66
Type Switch Box

Specifications

programmable thermostat for floor heating ZR011
1.High DC breaking capacity
2.Adjustable temperature
3.Low hysteresis

programmable thermostat for floor heating ZR011

Product Features:

1. High DC breaking capacity
2. Adjustable temperature
3. Low hysteresis
4. Change-over contact
5. Clip fixing
Technical Data
Switch temperature difference 7K (± 4K tolerance)
Sensor element thermostatic bimetal
Contact type snap-action contact
Service life > 100 000 cycles
Max. switching capacity 250VAC, 10 (2) A
  120VAC, 15 (2) A
  DC 30W
Connection 4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting clip for 35mm DIN rail, EN60715
Casing plastic according to UL94 V-0. light grey

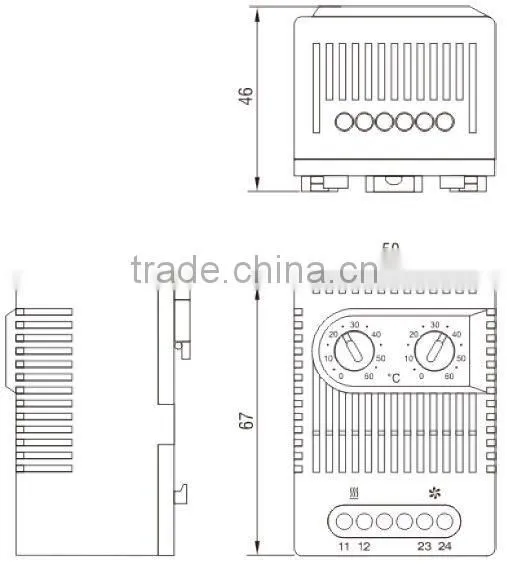

Dimensions 67 x 50 x 46mm
Weight approx. 90g
Fitting position variable
Operating/Storage temperature -45 to +80°C (-49 to +176°F)
Operating / Storage humidity max. 90 % RH (non-condensing)
Protection type IP20

Art. No. Setting range Setting range Setting range Setting range
01172.0-00 contact breaker, normally closed 0 to +60°C contact maker, normally open 0 to +60°C
01172.0-01 contact breaker, normally closed +32 to +140°F contact maker, normally open +32 to +140°F
01175.0-00 contact breaker, normally closed -10 to +50°C contact maker, normally open +20 to +80°C
01175.0-01 contact breaker, normally closed +14 to +122°F contact maker, normally open +68 to +176 °F
01176.0-00* contact maker, normally open 0 to +60°C contact maker, normally open 0 to +60°C
01176.0-01* contact maker, normally open +32 to +140°F contact maker, normally open +32 to +140°F


Pictures:

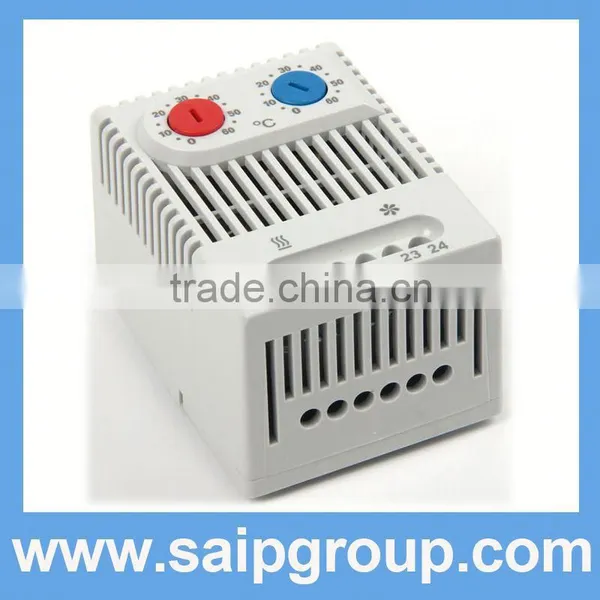

Appearance:

programmable thermostat for floor heating

programmable thermostat for floor heating

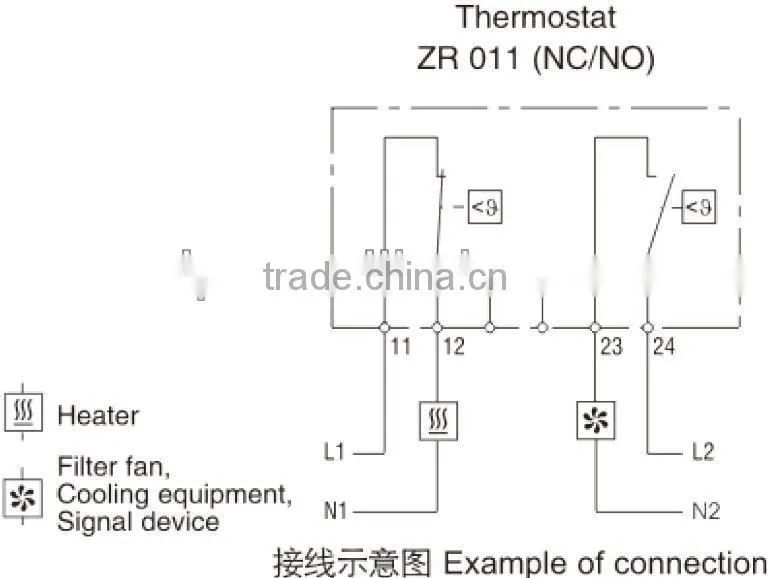

Connection:



programmable thermostat for floor heating

Certificate:

programmable thermostat for floor heating

Saip Company:

programmable thermostat for floor heating

The other more details you also could viste our website () or contact us directly.
