Water Heater Thermostat(instead of 59t/66t) FZK011

Water Heater Thermostat(instead of 59t/66t) FZK011 thumbnail-1
Water Heater Thermostat(instead of 59t/66t) FZK011 photo-1
US$ 0.1 - 1 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Saip
Model Number:
ET011
Contact Supplier Request Quote Chat Now
Yueqing Saip Electric Company Limited
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Saip
Model Number ET011
Protection Level IP66
Type Switch Box
External Size 67 x 50 x 46

Specifications

water heater thermostat(instead of 59t/66t) FZK011
1.High DC breaking capacity
2.Adjustable temperature
3.Low hysteresis

water heater thermostat(instead of 59t/66t) FZK011

Product Features:

1. High DC breaking capacity
2. Adjustable temperature
3. Low hysteresis
4. Change-over contact
5. Clip fixing
Technical Data

Switch temperature difference

4K (± 1.5K tolerance)*

Sensor element

thermostatic bimetal

Contact type

change-over snap-action contact

Contact resistance

< 10mOhm

Service life

> 100 000 cycles

Max. switching capacity, NC

250VAC, 10 (4) A



DC 30W

Max. switching capacity, NO

250VAC, 5 (2) A



DC 30W

EMC

acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3

Connection

4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²

Mounting

clip for 35mm DIN rail, EN50022

Casing

plastic according to UL94 V-0, light grey

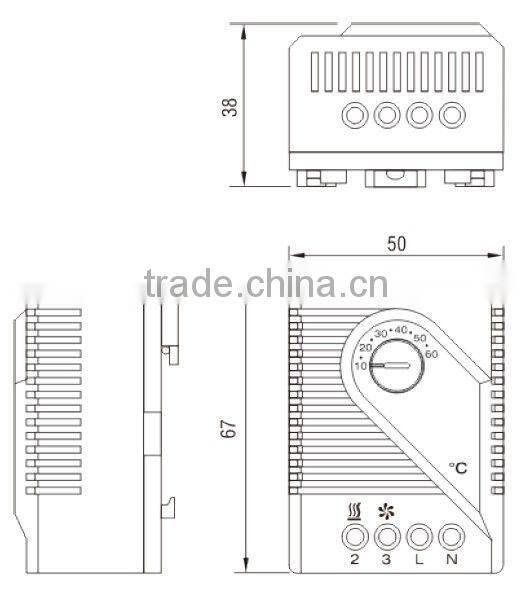

Dimensions

67 x 50 x 38mm

Weight

approx. 0.10kg

Fitting position

variable

Operating/Storage temperature

-20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F)

Protection type

IP20

  Pictures:

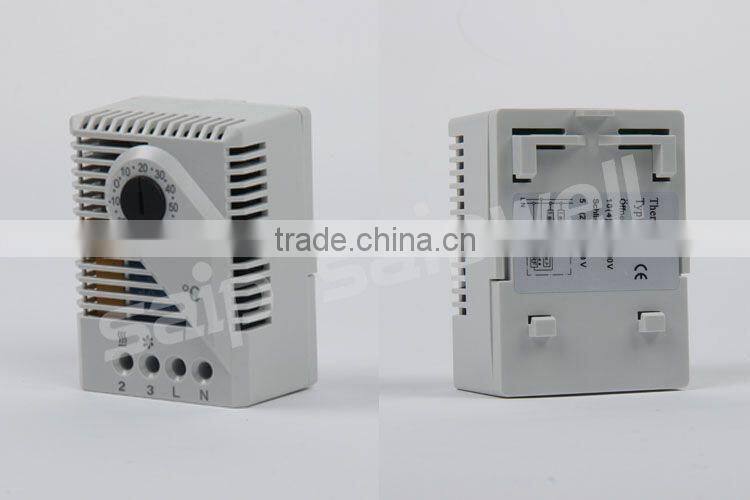

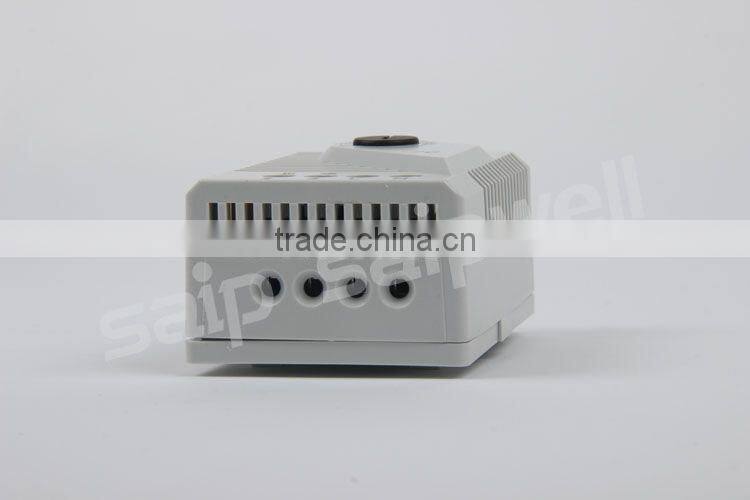

Appearance:

water heater thermostat(instead of 59t/66t)

water heater thermostat(instead of 59t/66t)

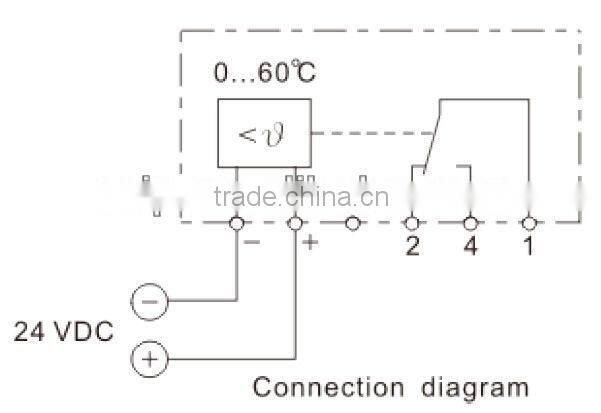

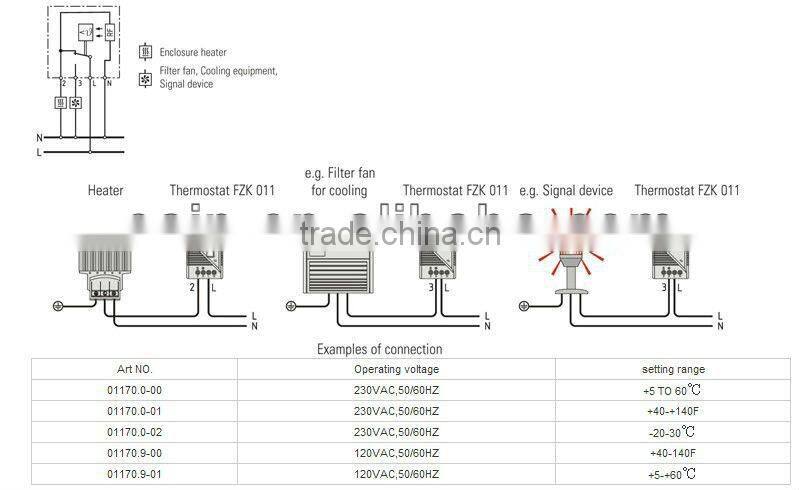

Connection:



water heater thermostat(instead of 59t/66t)

Certificate:

water heater thermostat(instead of 59t/66t)

Saip Company:

water heater thermostat(instead of 59t/66t)
