15000BPH Juice Hot Filling Machine

Suitable for: PET bottles with all volumes and shapes

Filling system: hot filling

Production capacity: 15000BPH *500ml

This hot filling machine is the standard 3-in-1 monoblock. But to the special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.

Technical features:

Full filling is to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.

Reasonable structured storage hopper and material supply system keep the material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.

The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.

Sanitary filling head system is of umbrella structure, high filling speed.

Perfect filling temperature control system.

Return tank system has the function of supplying the material automatically.

Perfect CIP system

Washing part of the machine

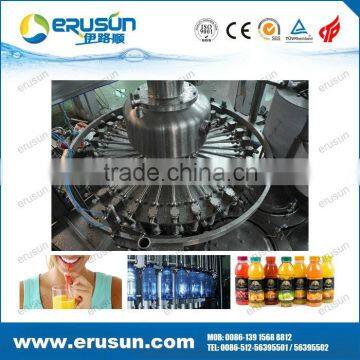

Filling Part of the machine

Capping part of the machine

Technical Parameters

Model: RHFC40-40-12

Rinsing Head: 40

Filling Head: 40

Capping Head: 12

Production capacity (500ml) (B/H): 15000BPH

Filling accuracy: ≤±5mm

Filling the back flow: ≤8%

PET bottle size (mm): Bottle diameter φ50-φ100mm; Height 150-320mm

Cap shape: Plastic cap

Rinsing water pressure (Mpa): 0.2-0.25

Rinsing water consumption (ton/h): 2t/hour

Air pressure (Mpa): 0.7

Air consumption (m3/min): 0.8M3/min

Motor power (KW): 6.5

Weight (KG): 7000

Packing Size (L*W*H) (mm): 4700×2950×2800
