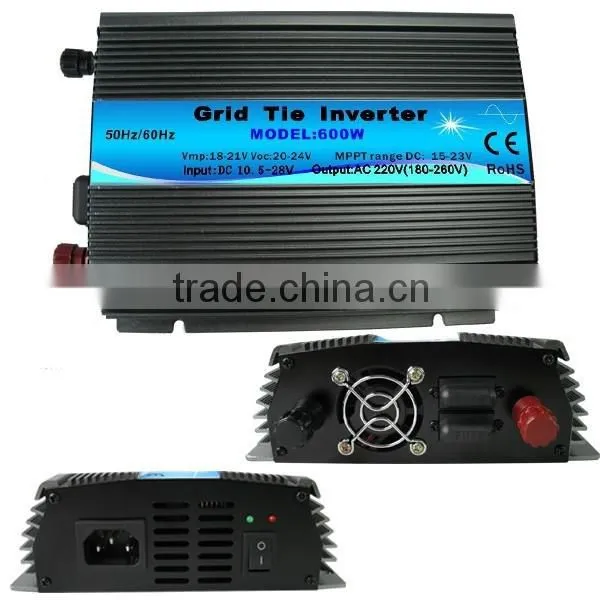

solar system micro grid inverter for 600w mini type inverter
Advantages of Smart Microinverter
- 1. Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.
- 2. Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more reliable.
- 3. Parallel type design for DC input and modularization design for inverter, small volume, distributed installation, easy for system configuration, flexible for combination, strong expansibility of system.
- 4. Adopting high-frequency isolation transformer type, high efficiency, and high security.
- 5. Perfect electrical protection function.
- 6. Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.
- 7. Getting electronic circuit design, appearance design and other core technology patents.
- 8. Wide input voltage (15-60VDC), suit for different DC power supply.
Smart Grid Tie Microinverter Technical Parameters
(Suit for 60 cells solar panel which Vmp is 26-30V as well as Voc is 34-38V.)
(Suit for 72 cells solar panel which Vmp is 35-37V as well as Voc is 44-46V.)
Power |
200W |
300W |
400W |
500W |
600W |
Solar panels |
≥200W |
≥300W |
≥400W |
≥500W |
≥600W |
DC input range |
15-60VDC |
||||
MPPT Voltage |
24-48V |
||||
DC MAX current |
15A |
20A |
30A |
45A |
50A |
AC MAX output |
230W |
330W |
430W |
550W |
650W |
AC output range |
120VAC(90-140VAC) or 230VAC(190-260VAC) |
||||
Frequency range |
50Hz/60Hz(Auto control) |
||||
Power Factor |
>97.5% |
||||
THD |
<5% |
||||
Phase Shift |
<2% |
||||
Peak Efficiency/110V |
>88% |
>88% |
>86% |
>85% |
>85% |
Stable Efficiency/110V |
>86% |
>86% |
>85% |
>84% |
>83% |
Peak Efficiency/220V |
>90% |
>90% |
>88% |
>88% |
>85% |
Stable Efficiency/220V |
>88% |
>88% |
>86% |
>86% |
>84% |
Protection |
Islanding; Short-circuit; converse connection; Low Voltage; Over Voltage; Over temperature Protection |
||||
Work Temperature |
-25℃-65℃ |
||||
Work Humidity |
0%~90%RH non-condensing |
||||
Grade of Waterproof |
Indoor design |
||||
Show |
LED |
||||
Cooling |
Fan |
||||
Stand-by Power |
2-3W |
||||
EMC |
EN61000-6-3:2007 EN61000-6-1:2007 |
||||
Grid Disturbance |
EN 50178+EN 62109-1+VDE0126-1-12 |
||||
Grid Detection |
DIN VDE 1026 UL1741 |
||||
Certificate |
CE |
||||
Mounting dimension |
16*13CM |
||||
Packing Specification
Packing Accessory |
Microinverter, AC Cord, User Manual(Warranty Card) |
Mechanical Size |
21 x 16.5 x 5.3CM |
Net Weight/PCS |
1.3KGS/PCS |
Inner Box (L x W x H) |
31 x 21 x 11.5 CM |
Carton(L x W x H) |
42 x 31.5 x 35.5 CM, 6pcs/CTN, 8/11KGS |
