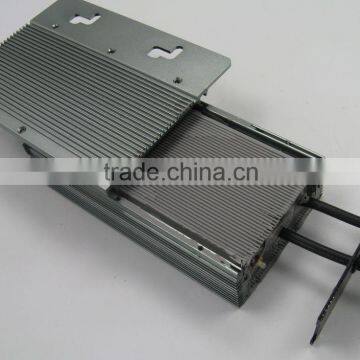

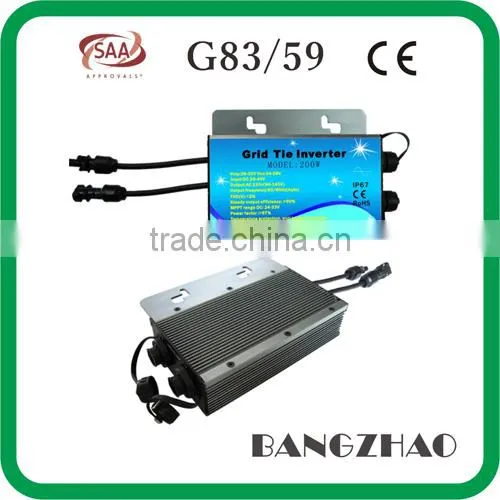

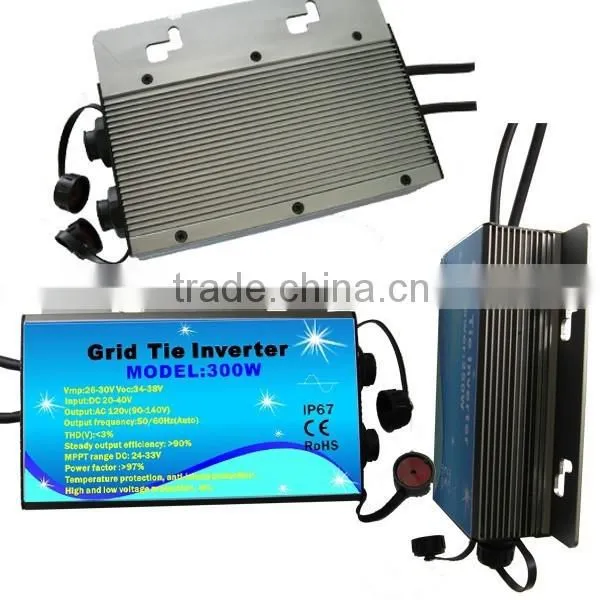

MPPT24-33VDC Smart Grid Tie Microinverter for solar single phase system

  MPPT24-33VDC Smart Grid Tie Microinverter for solar single phase system

Product Description



1. Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.

2. Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more reliable.

3. Parallel type design for DC input and modularization design for inverter, small volume, distributed installation, easy for system configuration, flexible for combination, strong expansibility of system.

4. Adopting high-frequency isolation transformer type, high efficiency, and high security.

5. Perfect electrical protection function.

6. Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.

7. Getting electronic circuit design, appearance design and other core technology patents.

8. High-quality thermal conductivity silica gel potting in, electronic components completely isolated from the air and it makes the aging of electronic components almost stop, greatly enhancing the life time of the product.

9. Highly DSP (Digital Signal Processor) as well as precision sensor IC adopted for getting accurately electrical parameters. Work with data sender and data collector to achieving remote monitoring, so the solar power generation information you can get and monitor at anytime and anywhere.

(Purchase additional communication configuration parts separately)







Technical Parameters



(Suit for 60 cells solar panel which Vmp is 26-30V as well as Voc is 34-38V.)



Power	200W	230W	250W	300W
Solar panels	≥200W	≥230W	≥250W	≥300W
DC input range	20-40VDC
MPPT Voltage	24-33VDC
DC MAX current	10A	15A	15A	15A
AC output range	120VAC(90-140VAC)  or 230VAC(190-260VAC)
Frequency range	50Hz/60Hz(Auto control)
Power Factor	>98.5%
THD	<5%
Phase Shift	<1%
Efficiency	120VAC(90-140VAC)
Peak Efficiency	>95%	>95%	>95%	>95%
Stable Efficiency	>92%	>91%	>91%	>91%
Efficiency	230VAC(190-260VAC)
Peak Efficiency	>95%	>95%	>95%	>95%
Stable Efficiency	>93%	>92%	>92%	>92%
Protection	Islanding; Short-circuit; Converse Connection; Low Voltage; Over Voltage; Over Temperature Protection
Work Temperature	‘-25℃-65℃
Grade of Waterproof	IP65
Show	Red and green LED
Cooling	Natural convection: no fans
Stand-by Power	1-2W
EMC	EN61000-6-3:2007 EN61000-6-1:2007
Grid Disturbance	EN 50178+EN 62109-1+VDE0126-1-12
Grid Detection	DIN VDE 1026 UL1741
Certificate	CE
Mounting Dimension	80CM(length)











Q 1. What's the payment term?

A. We accept TT,Western Union,Paypal,MoneyGram.

Q 2.How's the delivery time ?

A. Is due to order quantity, usually it will take about 3-7days for sample production,

Q 3.Tell me the standard of package?

A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or  wooden case for protection.

Q 4.Would you accept to use our logo ?

A.It's no problem to do OEM.

Q 5.We want to know month capacity.

A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs  and big capacity near 500pcs.

Q 6.Where is your market?

A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

Q 7. What kind of certificate you have ?

A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .

Q8. What is the warranty period ?

A. Normally 1 year .
