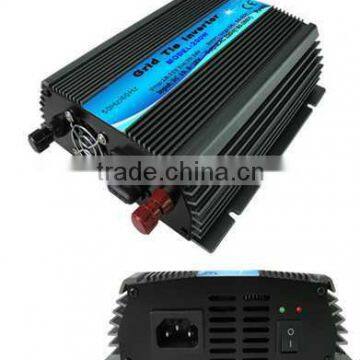

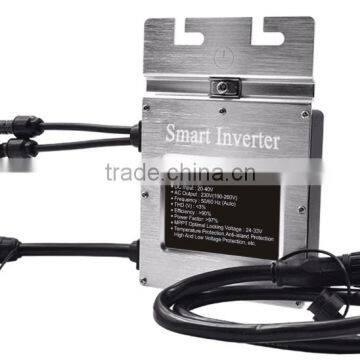

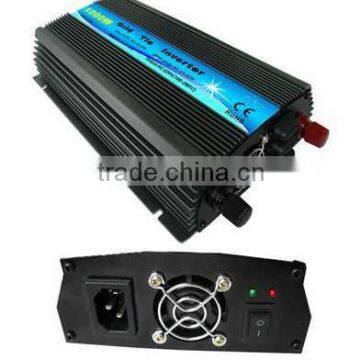

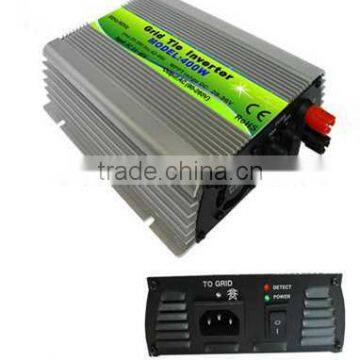

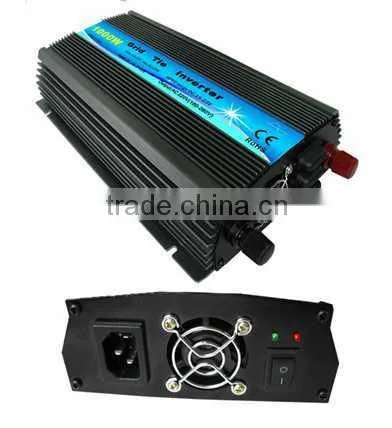

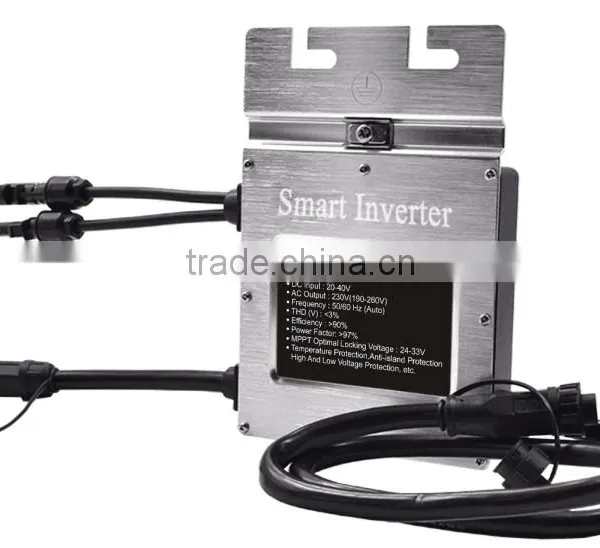

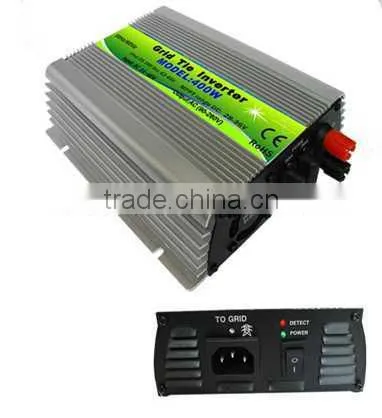

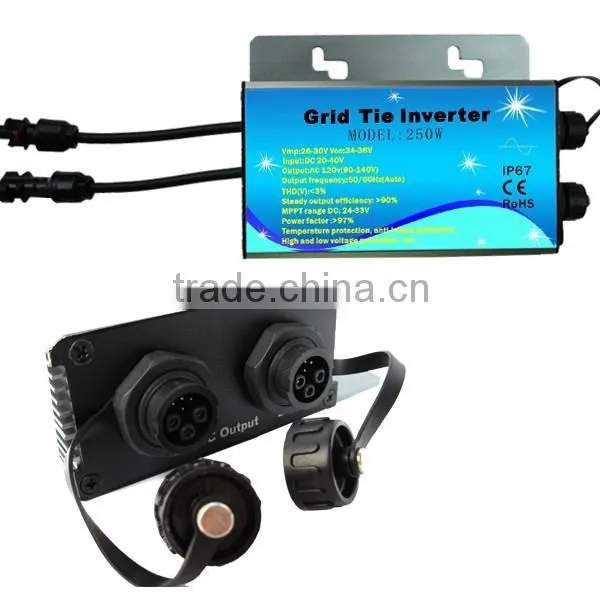

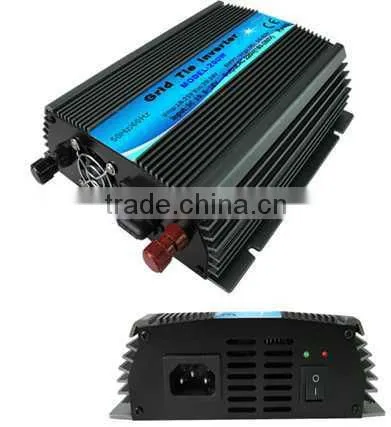

250W grid connected microinverter for solar power system
Features of Smart Microinverter
1. Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.
2. Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more reliable.
3. Parallel type design for DC input and modularization design for inverter, small volume, distributed installation, easy for system configuration, flexible for combination, strong expansibility of system.
4. Adopting high-frequency isolation transformer type, high efficiency, and high security.
5. Perfect electrical protection function.
6. Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.
7. Getting electronic circuit design, appearance design and other core technology patents.
8. High-quality thermal conductivity silica gel potting in, electronic components completely isolated from the air and it makes the aging of electronic components almost stop, greatly enhancing the life time of the product.
9. Highly DSP (Digital Signal Processor) as well as precision sensor IC adopted for getting accurately electrical parameters. Work with data sender and data collector to achieving remote monitoring, so the solar power generation information you can get and monitor at anytime and anywhere.
(Purchase additional communication configuration parts separately)
Technical Parameters
(Suit for 60 cells solar panel which Vmp is 26-30V as well as Voc is 34-38V.)
Power |
200W |
230W |
250W |
300W |
Solar panels |
≥200W |
≥230W |
≥250W |
≥300W |
DC input range |
20-40VDC |
|||
MPPT Voltage |
24-33VDC |
|||
DC MAX current |
10A |
15A |
15A |
15A |
AC output range |
120VAC(90-140VAC) or 230VAC(190-260VAC) |
|||
Frequency range |
50Hz/60Hz(Auto control) |
|||
Power Factor |
>98.5% |
|||
THD |
<5% |
|||
Phase Shift |
<1% |
|||
Efficiency |
120VAC(90-140VAC) |
|||
Peak Efficiency |
>95% |
>95% |
>95% |
>95% |
Stable Efficiency |
>92% |
>91% |
>91% |
>91% |
Efficiency |
230VAC(190-260VAC) |
|||
Peak Efficiency |
>95% |
>95% |
>95% |
>95% |
Stable Efficiency |
>93% |
>92% |
>92% |
>92% |
Protection |
Islanding; Short-circuit; Converse Connection; Low Voltage; Over Voltage; Over Temperature Protection |
|||
Work Temperature |
‘-25℃-65℃ |
|||
Grade of Waterproof |
IP65 |
|||
Show |
Red and green LED |
|||
Cooling |
Natural convection: no fans |
|||
Stand-by Power |
1-2W |
|||
EMC |
EN61000-6-3:2007 EN61000-6-1:2007 |
|||
Grid Disturbance |
EN 50178+EN 62109-1+VDE0126-1-12 |
|||
Grid Detection |
DIN VDE 1026 UL1741 |
|||
Certificate |
CE |
|||
Mounting Dimension |
80CM(length) |
|||
Remark: The maximum PV Panel open circuit voltage CANNOT be more than 46V.
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.
Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,

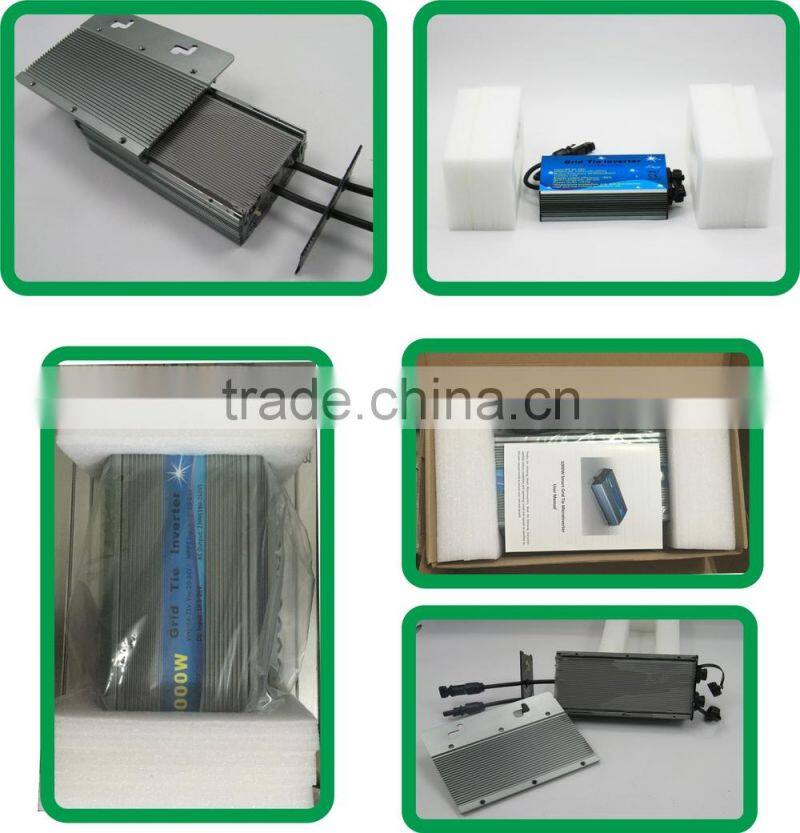

Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.
Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs and big capacity near 500pcs.
Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .
Q8. What is the warranty period ?
A. Normally 1 year .
OEM Services
1.Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.
Lead Time
1.Sample orders will be delivered from our factory within 3-7 working days.
2.General orders will be delivered from our factory within 15-30working days.
3.Big orders will be delivered from our factory within 45 working days at most
Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other express.
2.By our forwarding agent(by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
