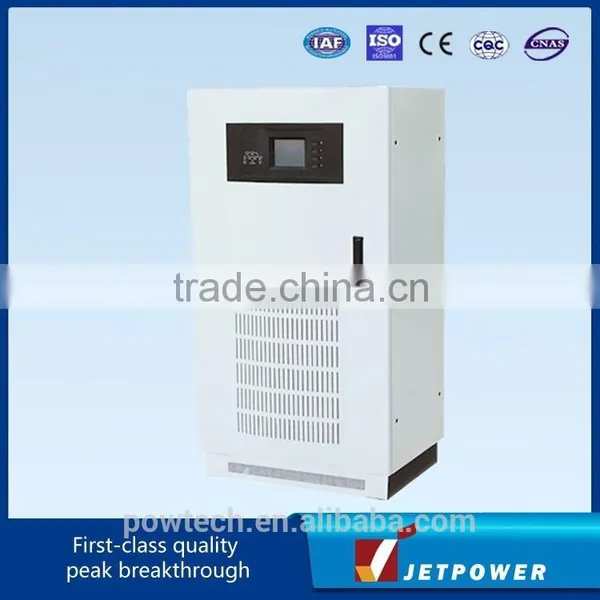

40KW PV Inverter Three Phase off Grid Solar Inverter / 220Vdc to 380Vac PV Inverter

40KW PV Inverter Three Phase off Grid Solar Inverter / 220Vdc to 380Vac PV Inverter thumbnail-1
40KW PV Inverter Three Phase off Grid Solar Inverter / 220Vdc to 380Vac PV Inverter photo-1
US$ 3,300 - 3,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JETPOWER
Model Number:
SI220-40K3
Contact Supplier Request Quote Chat Now
Qingdao Powtech Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name JETPOWER
Model Number SI220-40K3
Output Power 1 - 200KW
Output Type Triple
Size 905*625*1610MM
Weight 620kg
Input Voltage 220VDC
Output Voltage 380VAC
Type DC/AC Inverters
Output Frequency 50/60HZ
Output Current 105.26

Product Description



40KW three phase inverter/ Off-grid inverter

1.10kw/15kw/20kw/30kw/40kw/60kw

2.CE,ISO,CCC

3.customized

Technical parameters



Model

SI 220-10K3

SI 220-15K3

SI 220-20K3

SI 220-30K3

SI 220-40K3

SI 360-60K3

Capacity (KW)

10

15

20

30

40

60

Rated DC voltage

220VDC

Phase qty

Triple phase+N+G

Rated output voltage

380VAC±1%( steady load),380VAC±3%( fluctuation of load)

Rated output frequency

50/60Hz±0.05%

AC bypass (optional)

380VAC±25%,50/60Hz

Frequency regulation

<±0.05%

Crest factor

3:1

Output wave

Sine wave

THD

(linear load)<3%;  (non-linear load)<5%

Dynamic load transients (0 ~ 100%)

<±5%

Recovery time

<10ms

Balance load voltage

<±1%; <±5%( Unbalance load voltage)

Overload

125% 1min,150% 1S

Inverter efficiency @load 100%

>90%

Comm. interface

RS485, network remote monitoring and control, optional)

Ambient temperature

0~40℃

Relative humidity (no condensation)

30%~90%

Altitude

<1000m (Power decrease 1% when altitude increase 100 meter, the highest is 5000 meter)

Cooling

Forced air cooling

Noise

45~55

Color

Black (optional)

Input cable

Top/bottom

Easy maintenance

Able to open in front side/ Top side/Left and right side

Weight (kg)

210

250

300

460

620

960

W×D×H(mm3)

480*840*1200

905*625*1610

1105*900*1810







Detailed Images

 40KW PV inverter three phase off grid solar inverter / 220Vdc to 380Vac PV Inverter







Ageing Test

 40KW PV inverter three phase off grid solar inverter / 220Vdc to 380Vac PV Inverter





Certifications



 40KW PV inverter three phase off grid solar inverter / 220Vdc to 380Vac PV Inverter40KW PV inverter three phase off grid solar inverter / 220Vdc to 380Vac PV Inverter



Why choose us

1.Major manufacturer,Competitive price



2. ISO9001:2008 certification



3. 20 years' production experience



4. Turn-key solution for your transmission line

Our Services



1. Abroad site installation & training available any time



2. Best prices compared to same configuration



3. Customized product available



4. Good after-sale response



5. Small order accepted



6. Excellent workmanship
