10kw Single Phase off Grid Solar Inverter / 220V dc to 220Vac PV Inverter

10kw Single Phase off Grid Solar Inverter / 220V dc to 220Vac PV Inverter thumbnail-1
10kw Single Phase off Grid Solar Inverter / 220V dc to 220Vac PV Inverter thumbnail-2
10kw Single Phase off Grid Solar Inverter / 220V dc to 220Vac PV Inverter photo-1

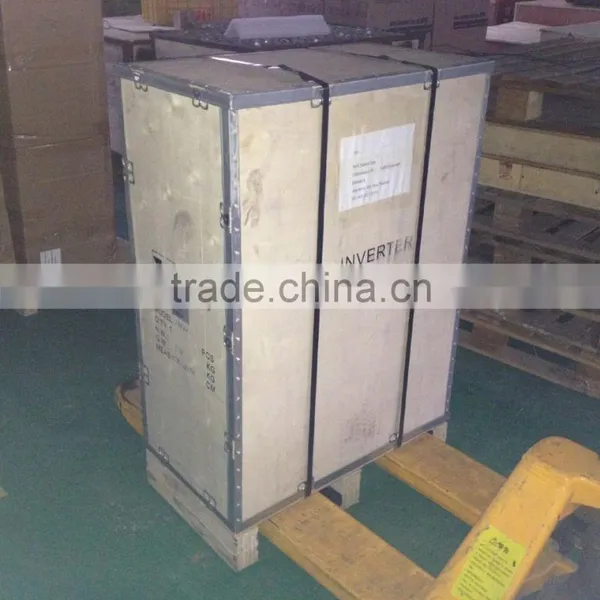

10kw Single Phase off Grid Solar Inverter / 220V dc to 220Vac PV Inverter photo-2
US$ 800 - 1,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JETPOWER
Model Number:
SI220-10k
Contact Supplier Request Quote Chat Now
Qingdao Powtech Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name JETPOWER
Model Number SI220-10k
Output Power 1 - 200KW
Output Type Single
Size 380*700*1015mm
Weight 150KG
Input Voltage 220VDC
Output Voltage 220VAC
Type DC/AC Inverters
Output Frequency 50/60HZ
Output Current 536.4A

10KW off grid single phase solar inverter / PV inverter





Product Description

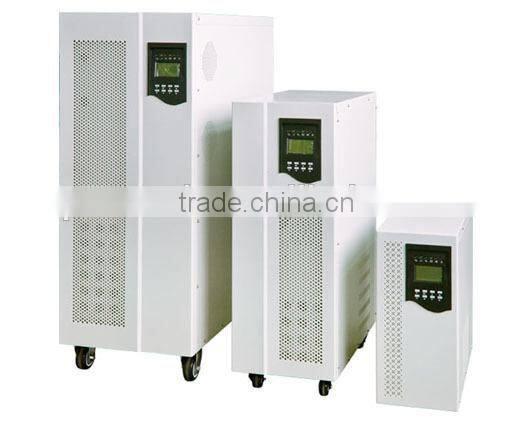

10kw single phase off grid solar inverter / 220V dc to 220Vac PV inverter

(1)           High performance DSP control

(2)           Comprehensive protection: overload, short circuit, reverse protection, under voltage,over voltage and over temperature

(3)           LED / LCD display (optional)

(4)           Remote communication: RS232

(5)           True sine wave output, low THD, high inverter efficiency, stable output voltage and good EMI

(6)           High reliability, high efficiency



Model

SI 220-3K

SI 220-5K

SI 220-10K

SI 220-15K

SI 220-20K

SI 220-30K

 (DC current input)

Rated capacity

3 KW

5 KW

10 KW

15 KW

20 KW

30 KW

Input rated voltage(vdc)

220

Input voltage range(vdc)

189~300

Mains supply bypass

Allow the voltage range

220±15%

Max .input current (A)

13.6

22.7

45.5

68.2

90.9

136.3

Switch time(mS)

≤4ms

AC outpu

Rated voltage(VAC)

220V

Rated current(A)

10.8

18.2

36.4

54.5

72.2

109.1

Rated frequency(Hz)

50

Overload capacity

120%1min,150%10ms

Voltage stabilizing precision(VAC)

220±1%

Frequency stabilizing precision(Hz)

50±0.04

THD

3%(linear load)

Dynamic response(0-100%)

≤20ms

Inverter efficiency

92%

Crest factor

3:1

System

Continuous operating time

Able to continuous operation

Noise

≤50

Ambient temperature (℃)

-10~+45℃

Altitude(m)

≤4000m (Reduce the capacity when altitude over 1000metres)

Comm.interface

RS232,RS485,SNMP card,dry contact optional

Dimension (W*H*D mm)


Vertical

210*570*550

380*700*1015

430*815*1145

450*1000*1210



 company certifications

10kw single phase off grid solar inverter / 220V dc to 220Vac PV inverter10kw single phase off grid solar inverter / 220V dc to 220Vac PV inverter



Why choose us



1.Major manufacturer,Competitive price



2. ISO9001:2008 certification



3. 20 years' production experience



4. Turn-key solution for your transmission line

Our Services



1. Abroad site installation & training available any time



2. Best price compared to the same configuration



3. Customized product available



4. Good after-sales response



5. Small order accepted



6. Excellent workmanship
