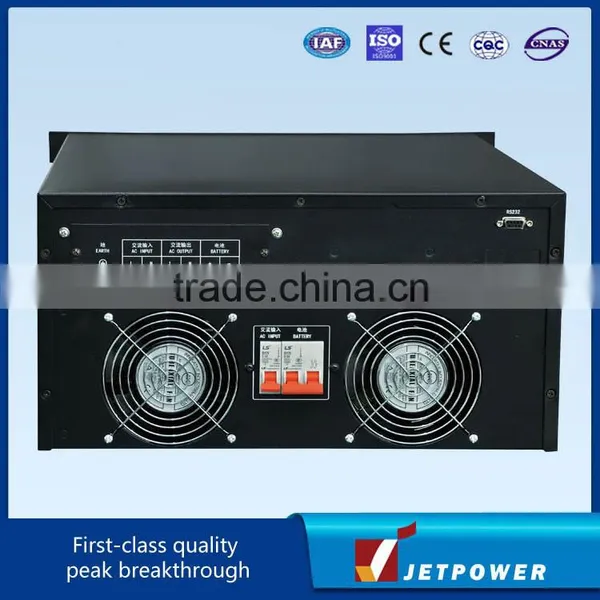

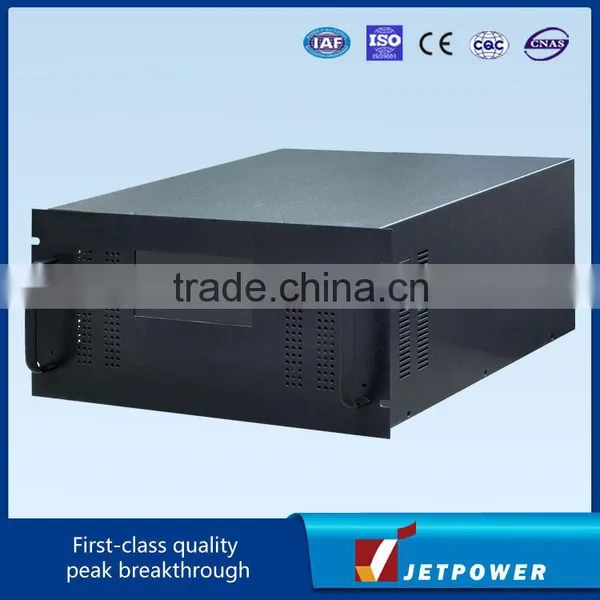

5K 4KW 110V Inverter/ Intelligent DC/AC Power Inverter (1K,2K,3K,5K,10K,20K,30K)/dc to ac Inverter/power Inverter
US$ 300 - 450
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JETPOWER
Model Number:
ND110-1050
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
110V Inverter / 3K 2.4KW Intelligent Power Inverter (1K, 2K, 3K, 5K, 10K,20K,30K)/dc to ac Inverter/power InverterUS$ 300 - 400MOQ: 1 Unit -
DC to AC Inverter 1 Phase / 10K 8KW 115V 1 Phase Inverter( 1K,2K,3K,4K,5K,6k,10K,15k,20K,30K)/115V Power InverterUS$ 700 - 800MOQ: 1 Unit
-
3K/2.4KW 115V 1 Phase Inverter/ DC to AC Inverter 1 Phase (1K,2K,3K,4k,5K,6k,10K,15k,20K,30K)/115V Power InverterUS$ 400 - 500MOQ: 1 Unit
-
1K 800W 115V 1 Phase Inverter/ DC to AC Inverter(1K,2K,3K,4k,5K,6k,10K,15k,20K,30K)/115V Power InverterUS$ 100 - 200MOQ: 1 Unit
-
DC to AC Inverter / 20K 16KW 115V 1 Phase Inverter/115V Power Inverter (1K,2K,3K,4k,5K,6k,10K,15k,20K,30K)US$ 900 - 1,000MOQ: 1 Unit
Place of Origin
Shandong, China
Brand Name
JETPOWER
Model Number
ND110-1050
Output Power
1 - 200KW
Output Type
Single
Size
440*500*221.5(mm)
Weight
70
Input Voltage
110VDC
Output Voltage
220VAC
Type
DC/AC Inverters
Output Frequency
50/60Hz
Output Current
18.2A
110VDC/AC inverter (1 phase output)
Product Description
Features:
1.Advance IGBT inverted technology
2.Multiple CPU intelligent control
3.Multiple protection function of over-voltage ,short circuit, over-temperature on input
4.Special industrial design to ensure the safety in worse environment
5.Reliable, filtering and stable sine wave output
6.Static bypass switch
7.With output isolation transformer
8.LCD+LED display
9.19 inch rack (for 5kva and below)
Tech. specs
| 110VDC/AC inverter (1 phase output) | ||||||||||
| Model | ND 110 | ND110 | ND110 | ND110 | ND110 | ND110 | ND110 | ND110 | ND110 | |
| -1010 | -1020 | -1030 | -1050 | -1060 | -1100 | -1150 | -1200 | -1300 | ||
| DC input | Rated DC input voltage (VDC) | 110 | ||||||||
| Rated DC input current (A) | 10 | 20 | 32.6 | 50 | 55 | 98 | 148 | 198 | 296 | |
| DC input voltage range (VDC) | 88~132Vdc | |||||||||
| Bypass | Utility AC input voltage (VAC) | 220Vac±20%, 50Hz±10% | ||||||||
| Utility | Rated AC input voltage (A) | 4.55 | 9.1 | 13.65 | 22.75 | 27.25 | 45.5 | 68.25 | 91 | 136.5 |
| input | Bypass transfer time (ms) | ≤4 | ||||||||
| AC output | Rated capacity (KVA) | 1 | 2 | 3 | 5 | 6 | 10 | 15 | 20 | 30 |
| Rated output power (KW) | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 | 16 | 24 | |
| Rated output voltage and frequency | 220VAC, 50HZ | |||||||||
| Rated output current (A) | 3.6 | 7.3 | 11 | 18.2 | 21.82 | 36.4 | 54.6 | 72.7 | 109 | |
| Output voltage regulation (V) | 220Vac±2% | |||||||||
| Output frequency regulation(Hz) | 50±1% | |||||||||
| THD | ≤3% | |||||||||
| Dynamic response (load 0←→100%) | 5% | |||||||||
| Power factor | 0.8 | |||||||||
| Overload | 150%,60s | |||||||||
| Crest factor | 03:01 | |||||||||
| Efficiency at rated load | 90% | 92% | ||||||||
| Environment | Insulation strength (between input & output) | 1500VAC, 1min | ||||||||
| Noise (1m) | ≤50dB | |||||||||
| Temperature | -10℃~+50℃ | |||||||||
| Humidity | 0~90%, no condensation | |||||||||
| Altitude (m) | ≤2000 | |||||||||
| Sizes | Rack tye (W* D * H, mm) | 440×450×177 | 440×450×177 | 440×450×177 | 440×500×221.5 | 440×500×221.5 | 330×640×885 | 330×640×885 | 330×680×935 | 490×985×1206 |
| Weight (kg) | 30 | 50 | 55 | 70 | 80 | 122 | 158 | 175 | 270 | |
| Protection | DC input reversely protection, DC input under voltage,over voltage, overload, short circuit, over temperature | |||||||||
Certifications
Detailed Images
Packaging
Shipping
Why choose us
1. Major manufacturer,Competitive price, good quality and delivery in time
2. ISO9001:2008 certification
3. Many years' production experience
Our Services
1. Abroad site installation & training available any time
2. Best price compared to same configuration
3. Customized product available
4. Good after-sales response
5. Small order accepted
6. Excellent workmanship
