Specifications
1.Less investment and mature production technology2.Germany's advanced technology
3.ISO9001:2008
4.turn key work
1. Brief Introduction
Our company has many years of experience in producing gypsum board and gypsum powder production line, identified by the Commerce Department as Designated Equipment Manufacturer. According to our more than ten years experience and surveys from the customers., we always provide advanced technology content, high reliability ,lower operation and qualified gypsum board technology scheme.
Characteristics of the equipment
1.1 It is easy to form a complete equipment. Except the special parts for the production line, the other parts can use the Chinese standard equipment. Control the quality in strict accordance with the ISO9001. The key electronic components use the high quality products from the internationally known company.
1.2 The scale of production and the area of the plant are moderate and match the automation and the mechanization of the production line, which is easy to manage.
1.3 The production line adopts Germany's advanced technology and our researching personnel research on the main parts such as dosing, forming and drying to design high efficiency, stability and energy saving production line.
1.4 The line moves at speed of less than 25m/min and it’s intermediate part moves at speed of 20~30 m/min, which accommodates with the condition of raw materials supply and have no special requirement for the raw materials.
1.5 Less investment and mature production technology. The production cycle is short and the customers will benefit very quickly. The quality of the products is easy to guarantee.

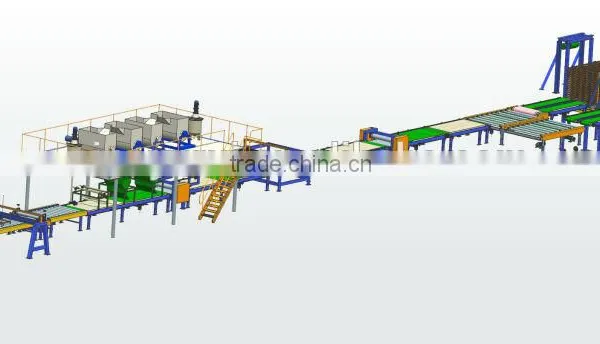

2. Layout& Aerial view (Natura gypsum board production line layout)
3. Main parameters and indicators
3.1 Capacity:
10million sqm/300 days
(Basis of calculation: L: 2400mm, T: 9.5mm, W: 1200mm, weight: 6.8 kg/sqm, when producing gypsum board with thickness of 9.5mm, the production speed of solidification belt is less than 25m/min)
3.2 Gypsum board specification
Quality standard
Product quality meet the national standard of the People’s Republic of China GB/T9775-2008(Paper faced gypsum board)
length(mm) |
2400,2440,2500,2700,3000 |
width(mm) |
1200,1220 |
discrepancy of the length and width(mm) |
Length 0-6 Width 0-5 |
thickness(mm) |
8,9,9.5,12,12.5,12.7,15,18 |
discrepancy of the thickness(mm) |
0±0.5 0±0.6 |
discrepancy of the diagonal |
≤5 |
crippling load of the board(N) |
9.5: portrait ≥ 360 landscape orientation ≥ 140 12: portrait ≥500 landscape orientation ≥180 |
rate of water content |
<2% |
3.3 The place and workshop requirements
(1) Main workshop:about 4000SQM (include paper storage)
(2) Finished products warehouse: about 6000SQM(can be adjusted)
(3) Boiler room: 120SQM
(4) Maintenance and power distribution spare parts warehouse:about 50 SQM
(5) Office area and worker apartment (Depends on customers requirements)
3.4 Labor capacity requirements
Working days per year : 300 days
Shift: Three shifts
Working hours per shift:8 hours/shift
Effective working hours: 7200 hours
Total worker: 8 worker/shift

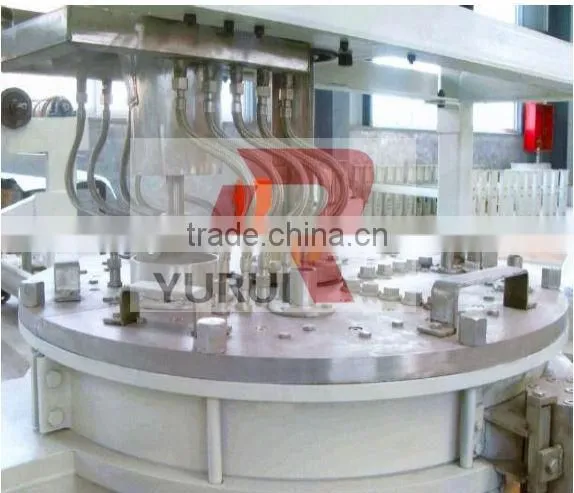

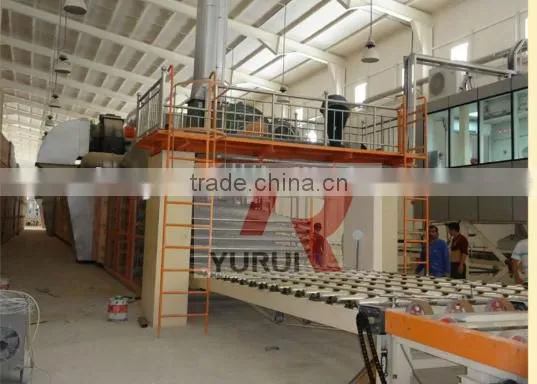

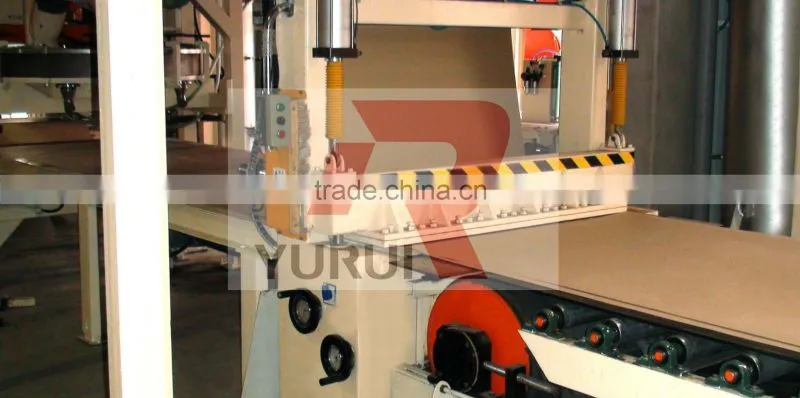

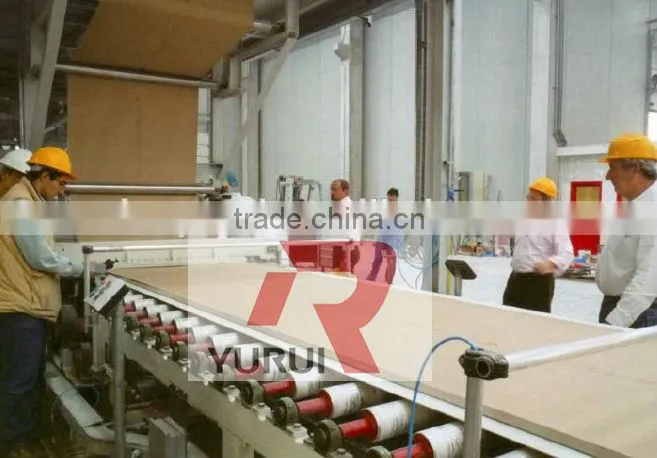

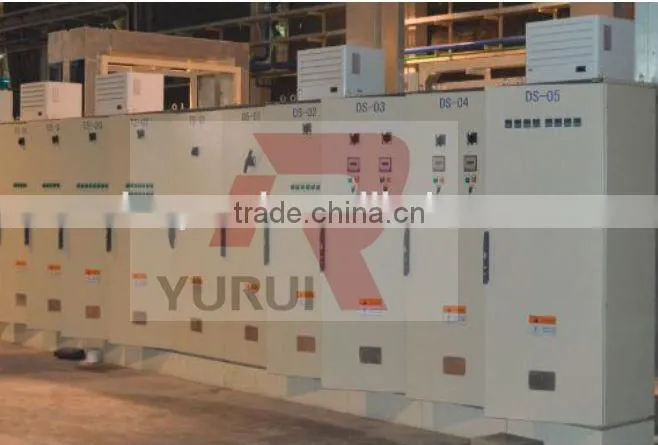

4. photos showing
5. Contact Person: Victor lu
SKYPE:LDFF101
Telephone: 0086-539-8191393
Fax: 0086-539-8191393
Address: BIN RIVER ROAD AND NORTH OF SU RIVER STREET INTERCHANGE,LANSHAN DISTRICT,LINYI CITY,CHINA
