Specializing in production of hebei lvjoe gypsum board production machinery

Specifications

1. hebei lvjoe gypsum board production machinery
2. 28years
3. Knauf hot air
4. 2-30millon sqm





According to our more than 28 years experience and surveys from the customers., we always provide advanced technology content, high reliability ,lower operation and qualified decorate technology scheme for hebei lvjoe gypsum board production machinery





Main parameters and indicators of hebei lvjoe gypsum board production machinery

1. Capacity: 2,000,000sqm~30,000,000sqm/year

2. Parameters and indicators

length (mm)	2400,2440,2500,2700,3000
width (mm)	1200,1220
thickness (mm)	8,9,9.5,12,12.5,12.7,15,18
discrepancy of the thickness (mm)	0±0.5      0±0.6
discrepancy of the diagonal	<=5
crippling load of the board	9.5: portrait>=360     landscape orientation  >=140
	12: portrait >=500     landscape orientation  >=180







1.Dosing Process of hebei lvjoe gypsum board production machinery

Blender mixing disc adopts high wear-resistant alloy materials, 10 times service longer life than that of ordinary mixer mixing plate, reducing the maintenance cost and the manual labor intensity.  The use of the advanced and efficient foaming system and measurement system is adopted to ensure the uniformity of slurry.

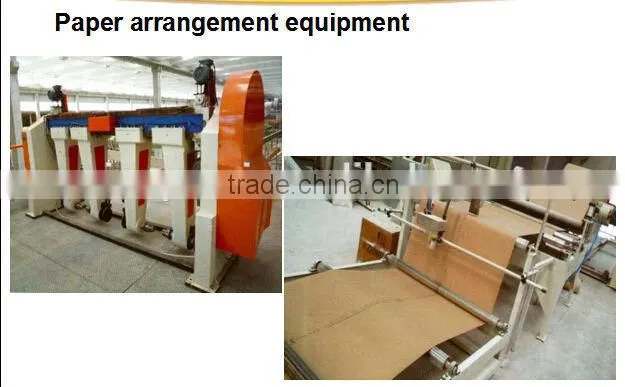

2. Paper supply system of hebei lvjoe gypsum board production machinery

Adopting pneumatic tension bridle shaft to clamp paper rolls, improving production speed, reducing the labor intensity when manual clamping; Using paper storing machine to remove the paper folding phenomenon made by manual storing paper and reduce manual jobs; Using the paper pulling machine, do not need manual drawing paper, reducing manual jobs.

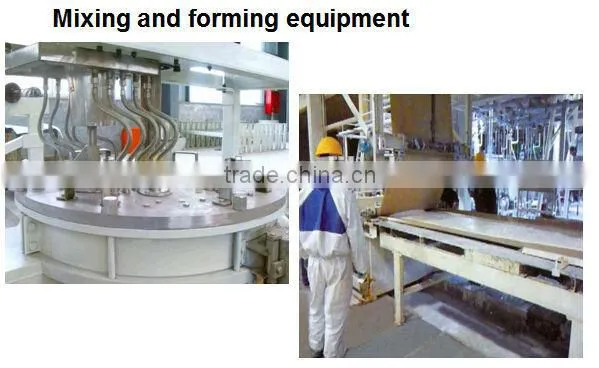

3. Mixng and forming equipment for hebei lvjoe gypsum board production machinery

Application: to form the semi-finished gypsum board products from the gypsum powder slurry.



Molding belt machine adopts toughened glass support, strictly ensuring the smoothness of the whole forming belt, put an end to the roller forming belt jumping up and down caused by the manufacturing error, to ensure that the plasterboard secondary roughness solidification time.

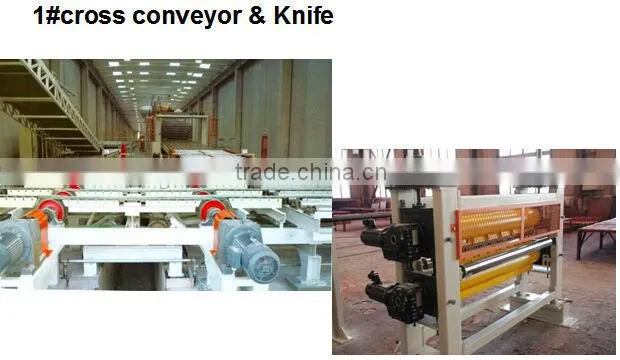

4. Cutting and transitioning system of hebei lvjoe gypsum board production machinery

1)Transit system

Usage: used to horizontally transport the cut plate to distributor. The adopting of servo motor control ensures the precision of the position plate movement.



2)Automatic cutting system

Application: used for cutting the solidified plate on molding belt machine into required length. Maximally reducing cost by controlling the minimum edge horn size

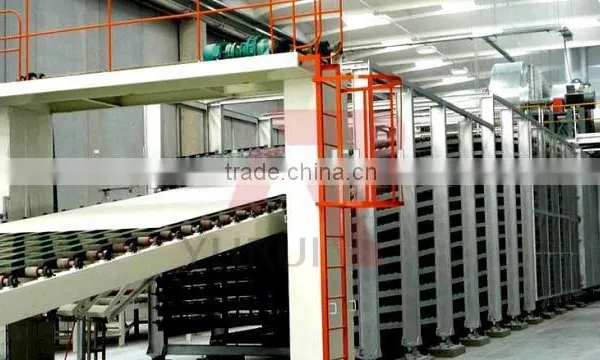

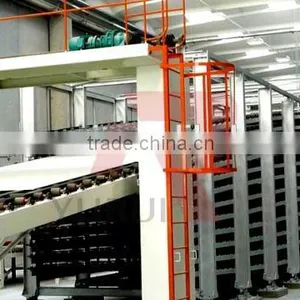

6. Distribution system of hebei lvjoe gypsum board production machinery

Application: used to transport the wet gypsum board to each story of drying machine with the control of PLC distributor.

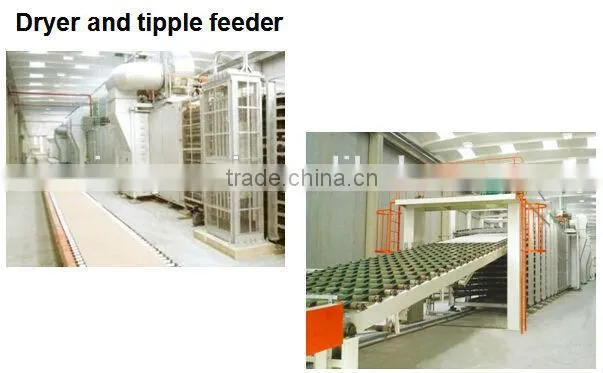

7. Drying system of hebei lvjoe gypsum board production machinery

The drying machine adopts heat exchange and double heat pipe, distributing temperature and air completely according to the drying characteristics of the gypsum board. The technology can dry the gypsum board under minimum energy consumption within shortest time, which is the most economic and most efficient way to dry the gypsum board.

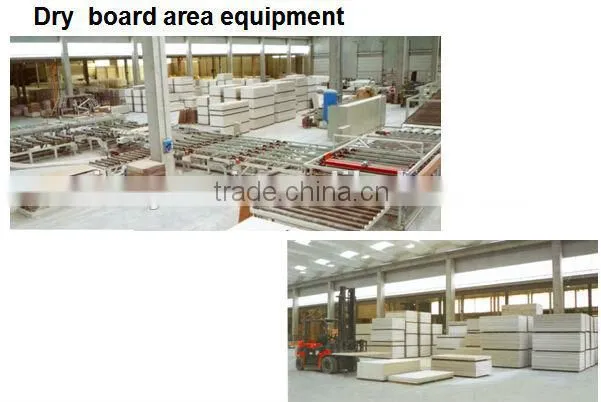

8. Discharging board and finished board system of hebei lvjoe gypsum board production machinery

Adopting servo motor control, ensuring the precision of the position plate movement, to adapt to the diversity of the product.

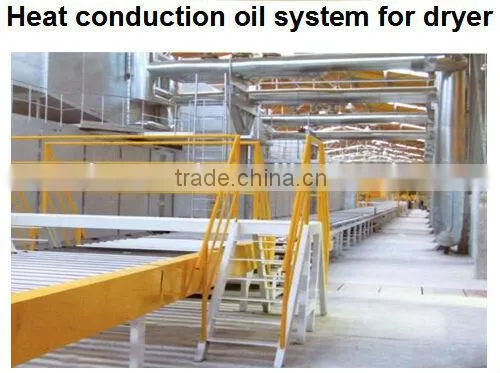

9. Heating system of hebei lvjoe gypsum board production machinery

Heat transfer oil boiling systems using organic heat carrier oil boiler heat, boiler heating surface is in front of the furnace radiation, both shaped by the close packed coil form; rear of this system is the convection washingheating surface, composed by serpentine bundle components.





Advantage of hebei lvjoe gypsum board production machinery

1. The scale of production and factory building are moderate with the current production line automation and mechanization degree

2. The hebei lvjoe gypsum board production machinery adopts advanced technology from Germany.

3. The hebei lvjoe gypsum board production machinery operates slower than 25 m/min. The circular operating speeds up to 30 ~ 40 m/min, is adapting to the supply of raw materials at present.



Warranty :Excellent easy broken parts support for buyers. Easy broken parts guarantee for one

year.

Trainning: The training is free of charge , and our engineer will be on duty to train your worker.

Installation&commissioning staff: 5-15 persons(adjustable according to the degree of automatic, and capacity )

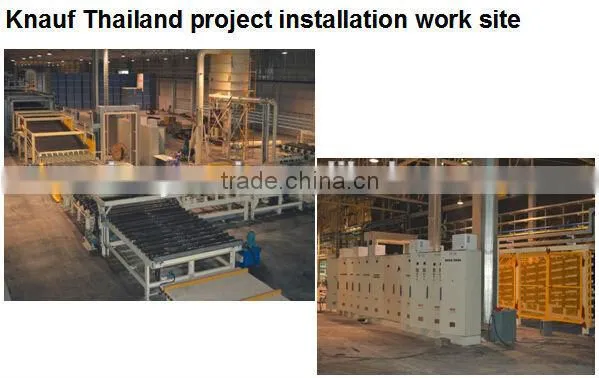

Knauf hot air technology installation









24 hours professional service, being normalized, valued, serialized, differentiated, and beyond our contract all the time, Shandong Yurui provides the reliable projects for you.



1. We offer technical support until the workers know how to operate.

2. We offer the technology data and relative files of hebei lvjoe gypsum board production machinery .The operating Instruction will go to the customers with the equipment.

3. We provide lifelong guidance of hebei lvjoe gypsum board production machinery

4. Excellent easy-broken parts support for buyers.



Shandong Yurui is a manufacturer and trade of construction machinery, specialized in the exporting business with the support of advanced technology and expertise from Shandong Jinhu Group.



1.How we work

One of the 8 branches of Shandong Jinhu Group, specialized in building machinery trading, devotion, elaboration, strictness, harmony, Shandong Yurui has been building brand with quality, and promoting credibility with services.



2.Quality

Requirements analyzing, manufacturing, inspecting, testing, installing, with perfect details in every process, Shandong Yurui promises a 100% perfect project for you.



3.Jinhu group

Starting from 1986, Shandong Jinhu Group has been in building material field for more than 28years. With spirit of “People-oriented, quality as the root, good faith, strict and careful innovation”, Jinhu Group is growing to be the leader.
