Help CenterSingle Side PE Paper Cup Making Machine, Disposable Paper Cup Making Machine
Related Products
-
High Speed and Quality Paper Cup Forming MachineryUS$ 1 - 1MOQ: 1 Set -
Paper Cup Making Machine,Paper Cup Making Machine Prices,Cup Making MachineUS$ 1 - 1MOQ: 1 Set
-
Quality Disposable Paper Cup Making MachineUS$ 1 - 1MOQ: 1 Set
-
China Quality Disposable Paper Cup Making MachineUS$ 1 - 1MOQ: 1 Set
-
CE Standard Automatic Paper Cup Forming Machine, Automatic Used Paper Cup MachineUS$ 1 - 1MOQ: 1 Set

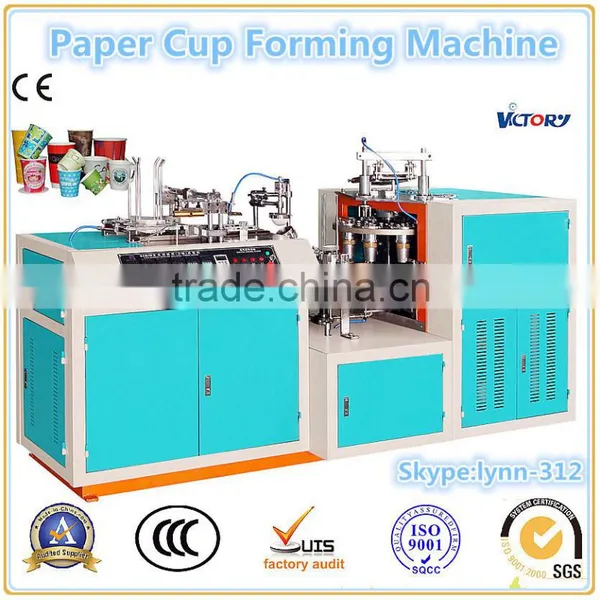

That disposable paper cup making machine is developed on the original basis, and enjoys the high-speed automatic paper cup shaper of two national patents. It is the idea equipment of producing paper cup and other food package machine. It enjoys light, convenience, save electricity and utility etc. This machine runs a whole procedure of paper feeding, body sealing, oiling, bottom punching, heating, knurling, curling, cup discharge and cup counter.
MAIN TECHNICAL PARAMETER
Model |
SZB/W-9 |
SZB/W-12 |
SZB/W-18(Special model) |
SZB/W-32(Special model) |
Production capacity |
45-55PCS/min |
40-50PCS/min |
35-45PCS/min |
30-40PCS/min |
Required paper |
150-320gsm Single Side PE Paper |
150-320gsm Single Side PE Paper |
150-320gsm Single Side PE Paper |
150-320gsm Single Side PE Paper |
Cup’s Range |
(A) 50 -80MM ,(B)35-90MM |
(A) 50 -90MM ,(B)35-115MM |
(A) 60 -128MM ,(B)80 -140MM |
(A) 60 -128MM ,(B)80 -180MM |
Total power |
220/380V 50/60HZ 4.5KW |
|||
Weight |
1400kg |
1500 kg |
1700kg |
1850kg |
Overall dimensions (L*W*H) |
2500*1300* 1700mm |
2650*1300* 1700mm |
2850*1300* 1900mm |
3000*1400* 2000mm
|
Who We Are?
We are Ruian Victory Machinery Co., Ltd, which is a member of China Packing Technology Association. It has advanced technical equipment and rich in manufacturing experience. Since established in 1987, our company has kept developing by quality, improving by technology, and enlarging by service. From establishment to now, our company has got many awards from local government and superior department.

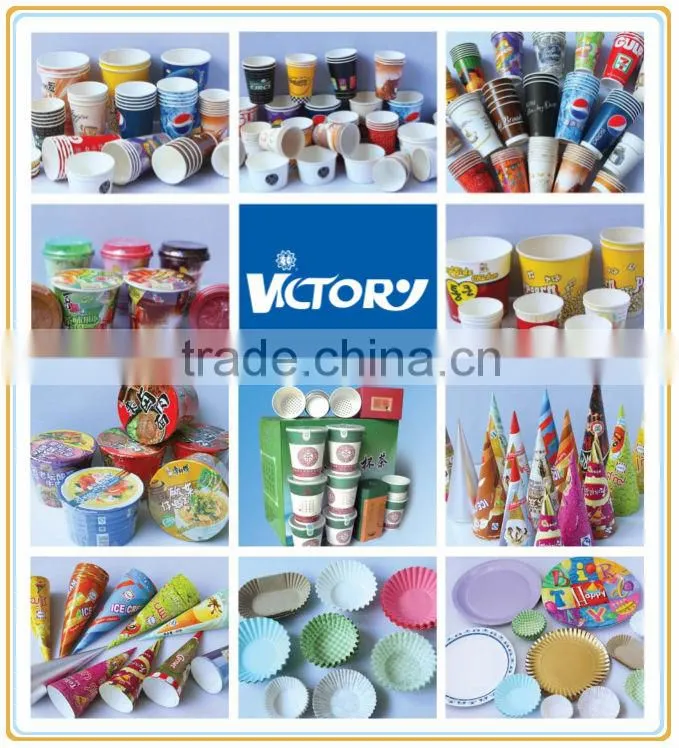

Sample Display
IF YOU WERE INTERESTED IN OUR PRODUCT, WELCOME TO CONTACT TO ME!
