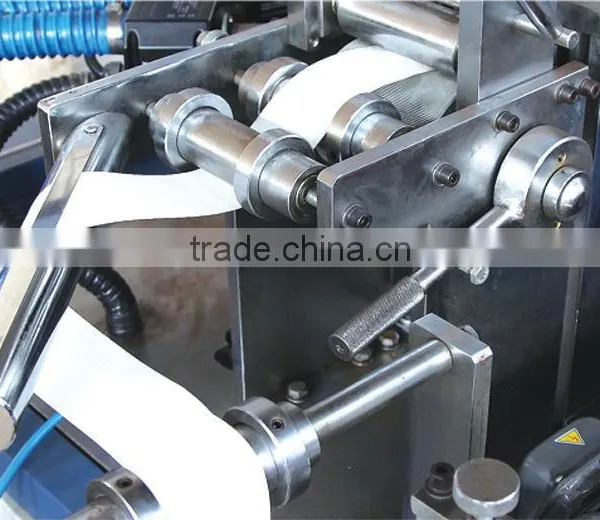

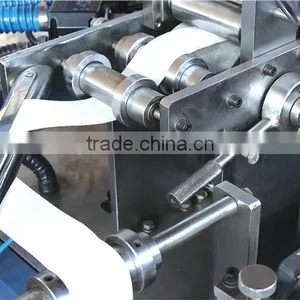

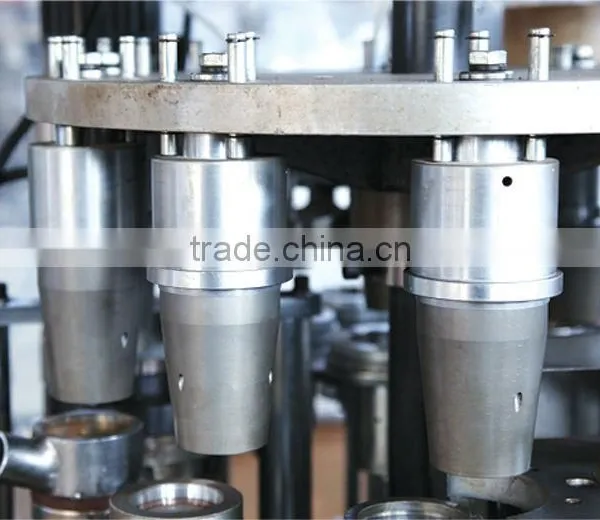

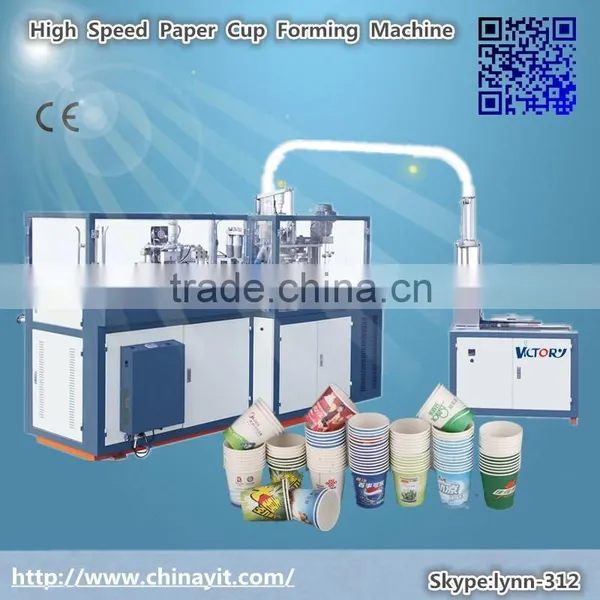

High Speed Paper Cup Forming Machine
High speed paper cup forming machine is our latest machine, which is made on the based of our 20 years manufacturing experience and advanced technology from oversea countries, has awarded three national patents. We adopt ultrasonic sealing, cam rocker type cup sending, high temperature bottom curling, slope-driven type bottom rolling and sealing, automatic cup piling, etc. With advantages of compact structure, professional design, and less noisy, the machine is suitable for producing both single and double sides PE paper cups.
Characteristics
1. Major parts are from oversea countries so that improve the quality of the machine.
2. Adopted the steel for knife mold to increase the life.
3. The material of cup mould is adopted aluminum instead if steel, which reduces weight and improve the speed.
4. The heater was from Switzerland, which is heating faster.
5. The cup bottom can be transferred by one time, with highly exactness, reduce the wasting.
Main Technical Parameter
| Model | HSZB-1 model high-speed paper cup machine | HSZB-2 model high-speed paper bowl machine |
| Production capacity | 60-70PCS/min | 60-70PCS/min |
| Required paper | 170-400gsm Single Side PE Paper or Double Sides PE Paper | 200-400gsm Single Side PE Paper or Double Sides PE Paper |
| Cup' s Range | (A) 60 -100MM, (B)60-140MM (C) 40 -70MM, (D)5 -11 MM |
(A) 90 -160MM, (B)60 -150MM (C) 70 -130MM, (D)6 -12 MM |
| Total power | 220/380V 50/60HZ 10KW | 220/380V 50/60HZ 11KW |
| Air supply requirement | Working pressure: 0.5-0.7working gas volume: 0.6m³ /per minute |
Working pressure: 0.5-0.7working gas volume: 0.6m³ /per minute |
| Weight | 2500 kg | 2800kg |
| Overall dimensions(L*W*H) | 3200*1700* 2000mm | 3200*1700* 2000mm |
| HS Code | 8441309000 | |
| Quality Certificate | CE, ISO, SGS | |
| Packing Method | Wooden Case(Inside machine is covered by plastic film) | |
Remark:
(A) Standard for Top Diameter (B) Standard for Height
(C) Standard for Bottom Diameter (D) Standard for Knurling Part
The Technological Figure of High Speed Paper Cup Forming Machine
Sample
1. Outside Package: Standard Export Wooden Case;
2. Inside Package: Plastic Film.
The good should be of good quality. But another important thing is the after service.
Machines are machine, so they will have problems, even small problems.
It is hard for customers to solve all the problems.
Our company will provide you good after services.
We can help you solve the problem through video, email, phone. 24 hours hot line.
If needed, we can also let our engineer go to your country to solve the problem.
We hope all the customer will satisfied with our machine and services.
Victory Machinery Co., Ltd of Rui'an City, Zhejiang Province, which is a member of China Packing Technology Association, is located in Jiangnan Industrial Development Zone, Rui'an City. It has advanced technical equipment and rich in manufacturing experience. Since established in 1987, our company has kept developing by quality, improving by technology, and enlarging by service. From establishment to now, our company has got many awards from local government and superior department.
Welcome to Visit US!
NOTE:
We can manufacture a special one for you of your personal requirement!
So if you were interested in our High Speed Paper Cup Forming Machine, Welcome to contact with me freely!
