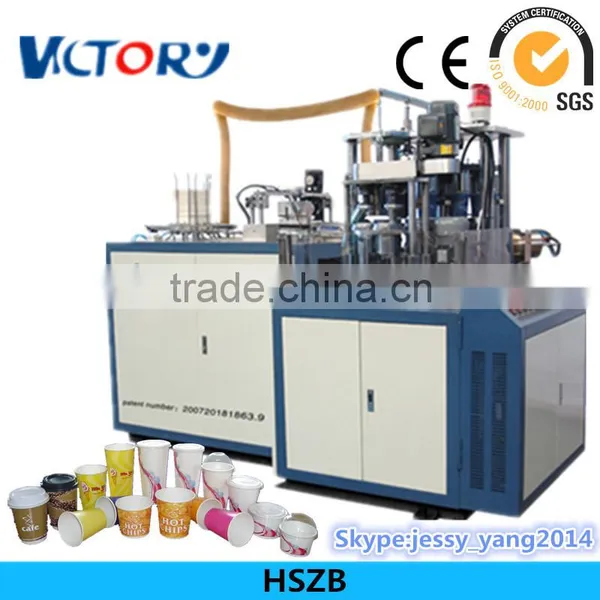

Welcome To Ask For HSZB Paper Cup Machine Price

Welcome To Ask For HSZB Paper Cup Machine Price photo-1
US$ 18,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Cup Machine
Processing Type:
Paper Folding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHNGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Paper Cup Machine
Processing Type Paper Folding Machine
Place of Origin Zhejiang, China
Brand Name VICTORY
Model Number HSZB
Voltage 220/380V 50/60HZ
Power(W) 10KW
Dimension(L*W*H) 3200*1700*2000mm
Weight 2500kg
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

The speed of this model high speed paper cup machine is 70-80/min and sealing system is adopted ultrasonic sealing.

  Welcome To Ask For HSZB Paper Cup Machine Price




Product Description



This paper cup machine is our latest machine, which is made on the based of our 20 years manufacturing experience and advanced technology from oversea countries, has awarded three national patents. We adopt ultrasonic sealing, cam rocker type cup sending, high temperature bottom curling, slope-driven type bottom rolling and sealing, automatic cup piling, etc. With advantages of compact structure, professional design, and less noisy, the machine is suitable for producing both single and double sides PE paper cups.

Welcome To Ask For HSZB Paper Cup Machine Price







Characteristics



1. Major parts are from oversea countries so that improve the quality of the machine.

2. Adopted the steel for knife mold to increase the life.

3. The material of cup mould is adopted aluminum instead if steel, which reduces weight and improve the speed.

4. The heater was from Switzerland, which is heating faster.

5. The cup bottom can be transferred by one time, with highly exactness, reduce the wasting.



Welcome To Ask For HSZB Paper Cup Machine Price







Main Technical Parameter





Model HSZB-1 model high-speed paper cup machine HSZB-2 model high-speed paper bowl machine
Production capacity 60-70PCS/min 60-70PCS/min
Required paper 170-400gsm Single Side PE Paper or Double Sides PE Paper 200-400gsm Single Side PE Paper or Double Sides PE Paper
Cup' s Range (A) 60 -100MM, (B)60-140MM (C) 40 -70MM, (D)5 -11 MM (A) 90 -160MM, (B)60 -150MM (C) 70 -130MM, (D)6 -12 MM
Total power 220/380V 50/60HZ 10KW 220/380V 50/60HZ 11KW
Air supply requirement Working pressure: 0.5-0.7working gas volume: 0.6m³ /per minute Working pressure: 0.5-0.7working gas volume: 0.6m³ /per minute
Weight 2500 kg 2800kg
Overall dimensions(L*W*H) 3200*1700* 2000mm 3200*1700* 2000mm
HS Code 8441309000
Quality Certificate CE, ISO, SGS
Packing Method Wooden Case(Inside machine is covered by plastic film)



        Welcome To Ask For HSZB Paper Cup Machine Price           Welcome To Ask For HSZB Paper Cup Machine Price







Samples of Paper Cup



Welcome To Ask For HSZB Paper Cup Machine Price         Welcome To Ask For HSZB Paper Cup Machine Price






Packaging & Shipping

   China disposable Paper Cup Making Machine



Welcome To Ask For HSZB Paper Cup Machine PriceWelcome To Ask For HSZB Paper Cup Machine PriceWelcome To Ask For HSZB Paper Cup Machine Price






After-sale Services



The goods should be of good quality. But another important thing is the after service. Machines are machine, so they will have problems, even small problems. It is hard for customers to solve all the problems.

Our company will provide you good after services. We can help you solve the problem through video, email, phone.

If needed, we can also let our engineer go to your country to solve the problem. We hope all the customer will satisfied with our machine and services.




Company Information

 Who We Are?



We are Ruian Victory Machinery Co., Ltd,  which is a member of China Packing Technology Association. It has advanced technical equipment and rich in manufacturing experience. Since established in 1987, our company has kept developing by quality, improving by technology, and enlarging by service. From establishment to now, our company has got many awards from local government and superior department.



Welcome To Ask For HSZB Paper Cup Machine Price



Welcome To Ask For HSZB Paper Cup Machine Price




FAQ



 Welcome To Ask For HSZB Paper Cup Machine Price

Note:



We can manufacture a Special One for you of your own requirement!



So, if you were interested in our Paper Cup Machine, please contact with me!



Skype: jessy_yang2014



Wechat: Jessy_Yang2014



QQ:  1463912228
