1t 3m high quality electric forklift
(electric walking ,electric lifting )
Product description 1t 3m high quality electric forklift
1.Our full electric stackers are suitable to carry and stack in narrow channel and limted room.For example, high rack warehouse,supermarket,workshop.
2.Our full electric stackers are controlled by computer program.
3.Masts of our full electric stackers are made of steel imported from German.
4.Battey of our full electric stackers can be fitted from three directions
5.We can customize according to clients requirements.
Characteristic | |||
1 |
Name |
|
1t 3m high quality electric forklift |
2 |
Model |
|
HZCPD1030-I-01
|
3 |
Mast steps |
|
Single |
4 |
Power source |
|
Battery |
5 |
Operator type |
|
Sit down |
6 |
Braking mode |
|
Electromagnetic braking |
7 |
Load capacity |
1000kg |
|
8 |
Load center distance |
min |
1070mm |
9 |
hydraulic cylinder |
|
Single |
10 |
Color |
|
Red, yellow, blue, gray |
11 |
Surface treatment |
|
Paint |
12 |
Wheel |
Polyurethane |
|
| 13 | G.W/N.W | kg |
1164/1159
|
Size | |||
1 |
Lifting height |
h(mm) |
3000 |
2 |
Fork minimum height |
h(mm) |
70 |
5 |
Fork size |
l/e/s(mm) |
1070*100*38
|
6 |
Fork individual width |
b(mm) |
600 |
8 |
Front wheel |
mm |
Φ342*114
|
9 |
Driving wheel |
mm |
Φ230*80
|
12 |
Vehicle turn around need minimum channel width |
Ast(mm) |
3000 |
13 |
Turn radius |
Wa(mm) |
1450 |
Driving | |||
1 |
Driving wheel |
Kw |
1.2 |
2 |
Lifting motor |
Kw |
2.5 |
3 |
Battery |
V/Ah |
24/280(1 group) |
4 |
Battery recharge cycles |
|
890 |
5 |
Battery weight |
Kg |
199 |
6 |
Charger |
|
24V40A |
7 |
Driving Control Type |
|
AC |
8 |
Driving wheel type |
|
Horizontal |
Packing and shipping | |||
1 |
packing method |
|
Packaging as a whole |
2 |
packing |
|
Angle iron + bubble wrap |
3 |
packing size |
L/B/H(mm) |
1600*870*2200
|
6 |
capacity of 20-foot containers |
set |
6 |
7 |
capacity of 40-foot containers |
set |
13 |
Others | |||
1 |
Specify product certification |
|
CE,SGS,BV,ISO90001 |
2 |
Name of customs declaration |
|
electric stacker |
3 |
FOB |
|
shanghai |
4 |
HS code |
|
8428909090 |

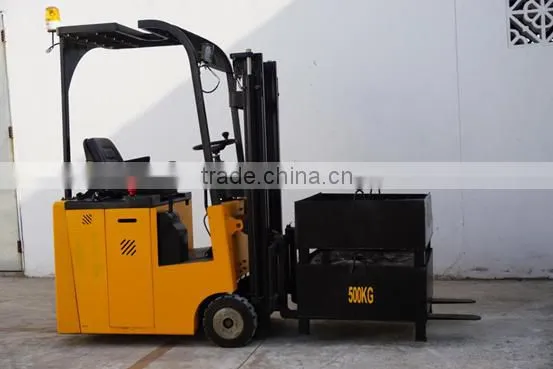

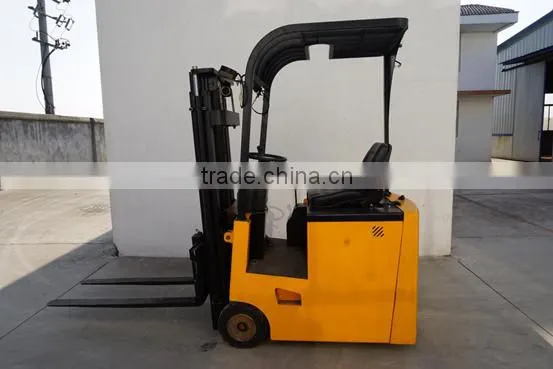

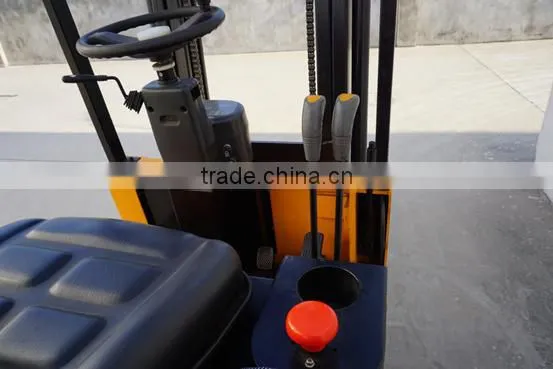

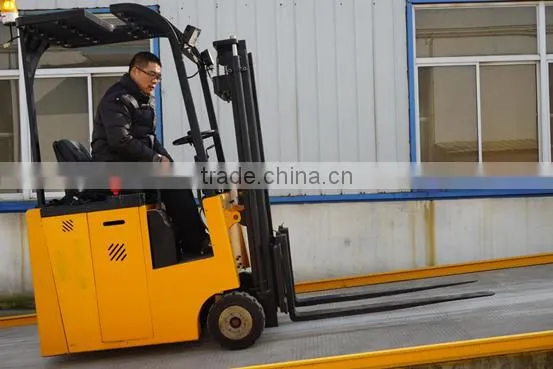

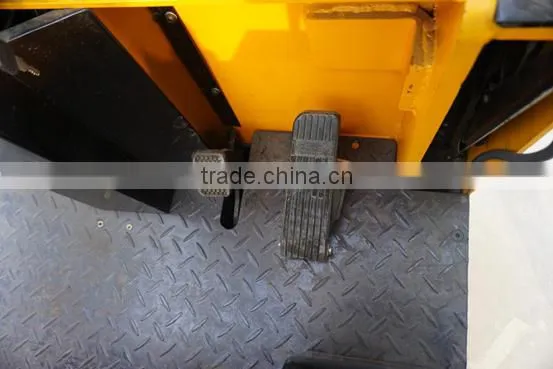

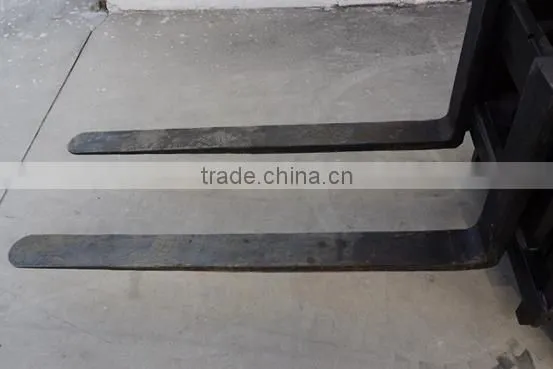

Detailed pictures: 1t 3m high quality electric forklift
QA&Testing 1t 3m 1t high quality electric forklift
To ensure security and quality ,our manufacturer will test each 1t 3m high quality electric forklift before the sales.
Certifications 1t 3m high quality electric forklift
1.6m new Hydraulic electric pallet stacker
Applications1 1t 3m high quality electric forklift
and some other places(Workshop,Warehouse,Airport, Railway Station ,shipyard and so on) where need to carry and shift.
F.A.Q 1t 3m high quality electric forklift
1.Q:Does your factory have favorable?
A: Our factory will offer customers 3% vulnerable parts in free .
2.Q:Does your factory accept customizing?
A:Yes,pls send your reguirements to sales3(@).
3.Q: Does your factory accept Neutral Packing and Designed Brand?
A:Yes,we accept.
4:Q:Which is the nearest airport to your factory?
A:Shanghai.We can take you at the airport and provide accommodation.
5.A:Does your factory provide favorable?
Q:Yes,Our factory will offer customers 3% free vulnerable parts .
