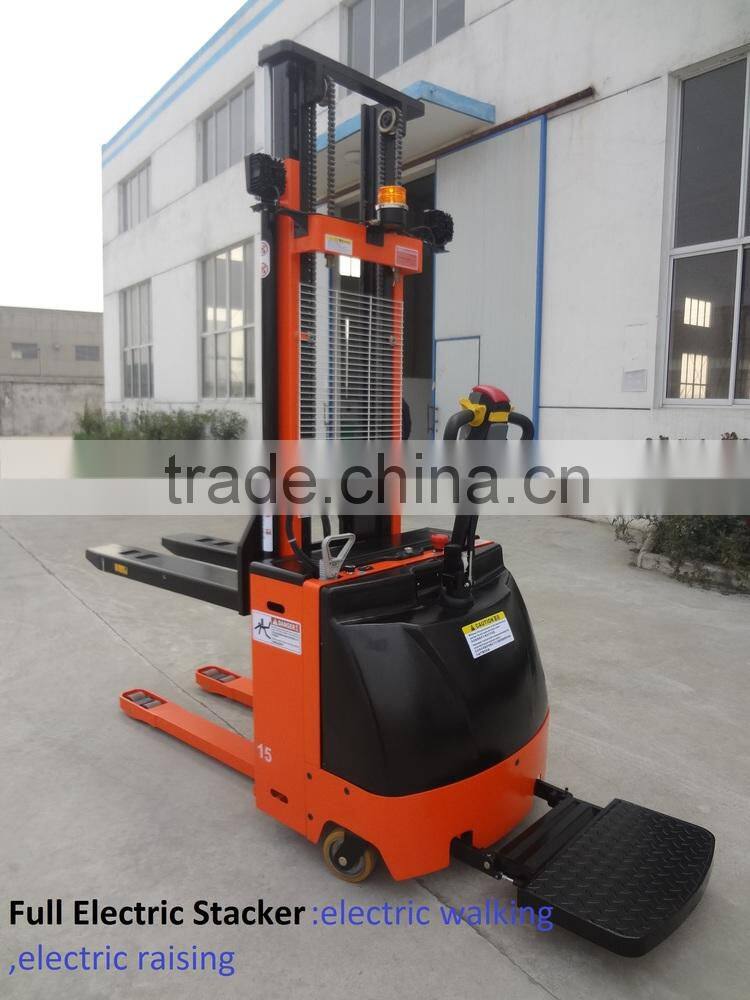

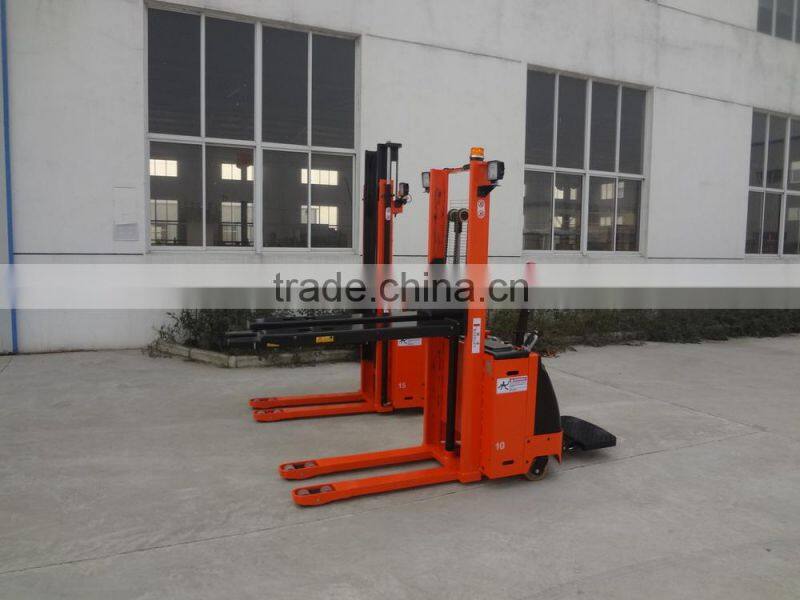

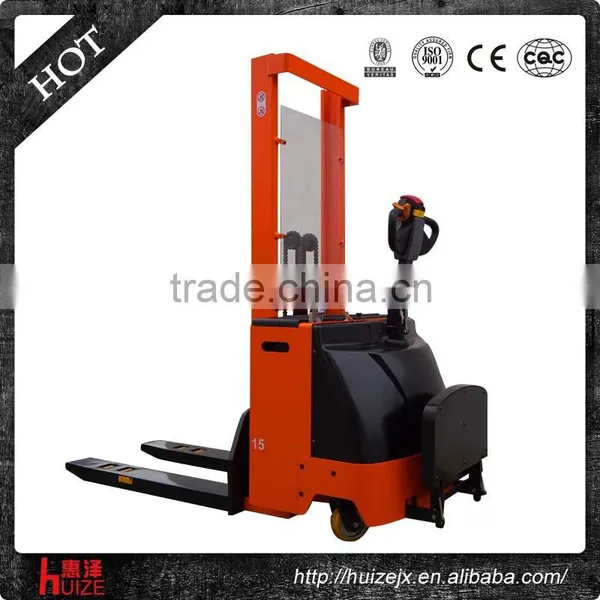

1.6m Quick lift 1.5ton electric powered pallet stacker for sale
(electric walking ,electric lifting )
Product description 1.5ton electric powered pallet stacker
1.Our full electric stackers are suitable to carry and stack in narrow channel and limted room.For example, high rack warehouse,supermarket,workshop.
2.Our full electric stackers are controlled by computer program.
3.Masts of our full electric stackers are made of steel imported from German.
4.Battey of our full electric stackers can be fitted from three directions
5.We can customize according to clients requirements.
Characteristic | |||
1 |
Name |
|
1t 1.6m Quick lift electric stacker price |
2 |
Model |
|
HZCDD1016-03 |
3 |
Mast steps |
|
Single |
4 |
Power source |
|
Battery |
5 |
Operator type |
|
Standing |
6 |
Braking mode |
|
Electromagnetic braking |
7 |
Load capacity |
1000kg |
|
8 |
Load center distance |
min |
600mm |
9 |
hydraulic cylinder |
|
Single cylinder |
10 |
Color |
|
Red, yellow, blue, gray |
11 |
Surface treatment |
|
Paint |
12 |
Wheel |
Polyurethane |
|
| 13 | G.W/N.W | kg | 716/713 |
Size | |||
1 |
Lifting height |
h(mm) |
1600 |
2 |
Fork minimum height |
h(mm) |
85 |
3 |
Overall length |
L(mm) |
2105+400(footboard) |
4 |
Overall width |
b(mm) |
850 |
5 |
Fork size |
l/e/s(mm) |
1150*160*70 |
6 |
Fork individual width |
b(mm) |
600 |
7 |
Overall height |
h(mm) |
2000 |
8 |
Front wheel |
mm |
Φ80*70 |
9 |
Driving wheel |
mm |
φ250*80 |
10 |
Balance wheel |
mm |
φ150*50 |
11 |
Passage width |
Ast(mm) |
900 |
12 |
Vehicle turn around need minimum channel width |
Ast(mm) |
2600 |
13 |
Turn radius |
Wa(mm) |
2200 |
Driving | |||
1 |
Driving wheel |
Kw |
1.2 |
2 |
Lifting motor |
Kw |
2.5 |
3 |
Battery |
V/Ah |
24/165(1 group) |
4 |
Battery recharge cycles |
|
750 |
5 |
Battery weight |
Kg |
150 |
6 |
Charger |
|
24V20A |
7 |
Driving Control Type |
|
AC |
8 |
Driving wheel type |
|
Horizontal |
Packing and shipping | |||
1 |
packing method |
|
Packaging as a whole |
2 |
packing |
|
Angle iron + bubble wrap |
3 |
packing size |
L/B/H(m) |
2.2*0.9*2.2 |
5 |
How many boxes does each product have |
|
2 |
6 |
capacity of 20-foot containers |
set |
8 |
7 |
capacity of 40-foot containers |
set |
16 |
Others | |||
1 |
Specify product certification |
|
CE,SGS,BV,ISO90001 |
2 |
Name of customs declaration |
|
electric stacker |
3 |
FOB |
|
shanghai |
4 |
HS code |
|
8428909090 |

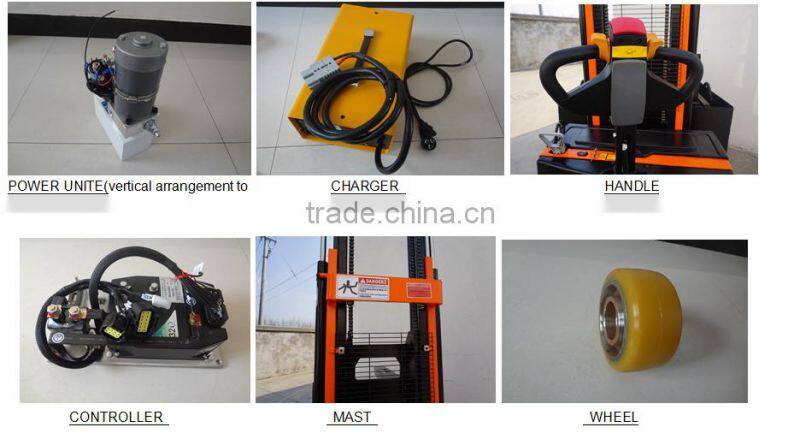

Accessories: 1.5ton electric powered pallet stacker

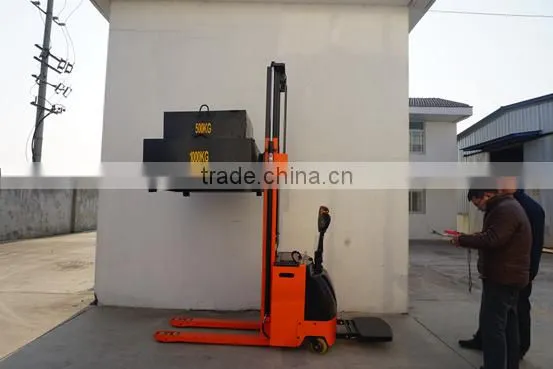

QA&Testing 1.5ton electric powered pallet stacker
To ensure security and quality ,our manufacturer will test each 1t 1.6m Quick lift electric stacker price before the sales.
Certifications 1.5ton electric powered pallet stacker
1.6m new Hydraulic electric pallet stacker
Applications1 1.5ton electric powered pallet stacker
and some other places(Workshop,Warehouse,Airport, Railway Station ,shipyard and so on) where need to carry and shift.
Workshop 1.5ton electric powered pallet stacker
Our service 1.5ton electric powered pallet stacker
F.A.Q 1.5ton electric powered pallet stacker
1.Q:Does your factory have favorable?
A: Our factory will offer customers 3% vulnerable parts in free .
2.Q:Does your factory accept customizing?
A:Yes,pls send your reguirements to sales3(@).
3.Q: Does your factory accept Neutral Packing and Designed Brand?
A:Yes,we accept.
4:Q:Which is the nearest airport to your factory?
A:Shanghai.We can take you at the airport and provide accommodation.
5.A:Does your factory provide favorable?
Q:Yes,Our factory will offer customers 3% free vulnerable parts .
