1t 1.6m High quality electric pallet truck forklift ce battery stacker price
(electric walking ,electric lifting )
Product description 1t 1.6m High quality full electric stacker price
1.Our full electric stackers are suitable to carry and stack in narrow channel and limted room.For example, high rack warehouse,supermarket,workshop.
2.Our full electric stackers are controlled by computer program.
3.Masts of our full electric stackers are made of steel imported from German.
4.Battey of our full electric stackers can be fitted from three directions
5.We can customize according to clients requirements.
Characteristic | |||
1 |
Name |
|
1t 1.6m High quality full electric stacker price |
2 |
Model |
|
HZCDD1016-03 |
3 |
Mast steps |
|
Single |
4 |
Power source |
|
Battery |
5 |
Operator type |
|
Standing |
6 |
Braking mode |
|
Electromagnetic braking |
7 |
Load capacity |
1000kg |
|
8 |
Load center distance |
min |
600mm |
9 |
hydraulic cylinder |
|
Single cylinder |
10 |
Color |
|
Red, yellow, blue, gray |
11 |
Surface treatment |
|
Paint |
12 |
Wheel |
Polyurethane |
|
| 13 | G.W/N.W | kg | 716/713 |
Size | |||
1 |
Lifting height |
h(mm) |
1600 |
2 |
Fork minimum height |
h(mm) |
85 |
3 |
Overall length |
L(mm) |
2105+400(footboard) |
4 |
Overall width |
b(mm) |
850 |
5 |
Fork size |
l/e/s(mm) |
1150*160*70 |
6 |
Fork individual width |
b(mm) |
600 |
7 |
Overall height |
h(mm) |
2000 |
8 |
Front wheel |
mm |
Φ80*70 |
9 |
Driving wheel |
mm |
φ250*80 |
10 |
Balance wheel |
mm |
φ150*50 |
11 |
Passage width |
Ast(mm) |
900 |
12 |
Vehicle turn around need minimum channel width |
Ast(mm) |
2600 |
13 |
Turn radius |
Wa(mm) |
2200 |
Driving | |||
1 |
Driving wheel |
Kw |
1.2 |
2 |
Lifting motor |
Kw |
2.5 |
3 |
Battery |
V/Ah |
24/165(1 group) |
4 |
Battery recharge cycles |
|
750 |
5 |
Battery weight |
Kg |
150 |
6 |
Charger |
|
24V20A |
7 |
Driving Control Type |
|
AC |
8 |
Driving wheel type |
|
Horizontal |
Packing and shipping | |||
1 |
packing method |
|
Packaging as a whole |
2 |
packing |
|
Angle iron + bubble wrap |
3 |
packing size |
L/B/H(m) |
2.2*0.9*2.2 |
5 |
How many boxes does each product have |
|
2 |
6 |
capacity of 20-foot containers |
set |
8 |
7 |
capacity of 40-foot containers |
set |
16 |
Others | |||
1 |
Specify product certification |
|
CE,SGS,BV,ISO90001 |
2 |
Name of customs declaration |
|
electric stacker |
3 |
FOB |
|
shanghai |
4 |
HS code |
|
8428909090 |
1.6m n

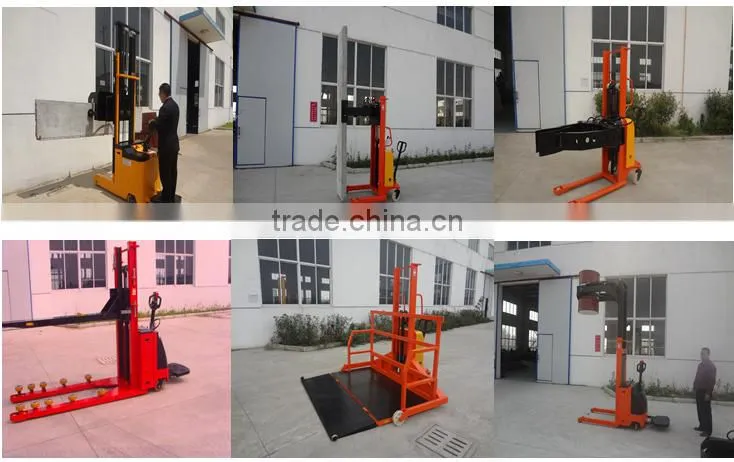

We can also provide:

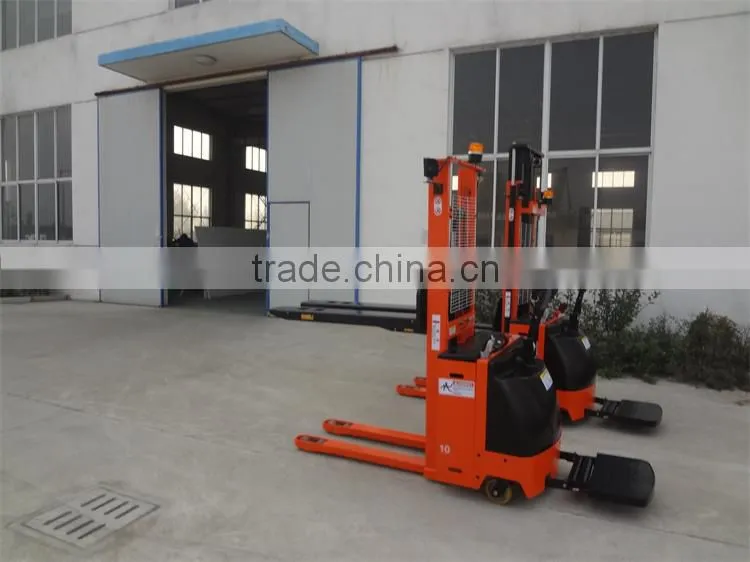

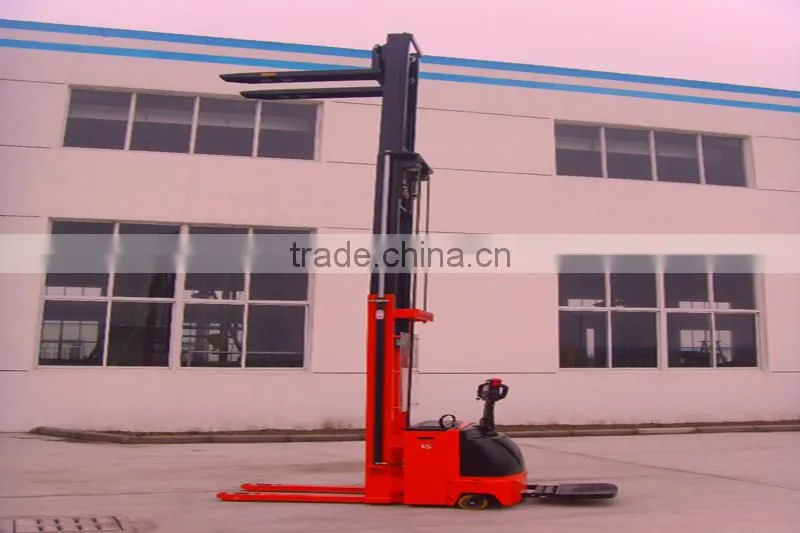

Details Pic.
2 Ton Can Go Down Mechanical Pallet Truck

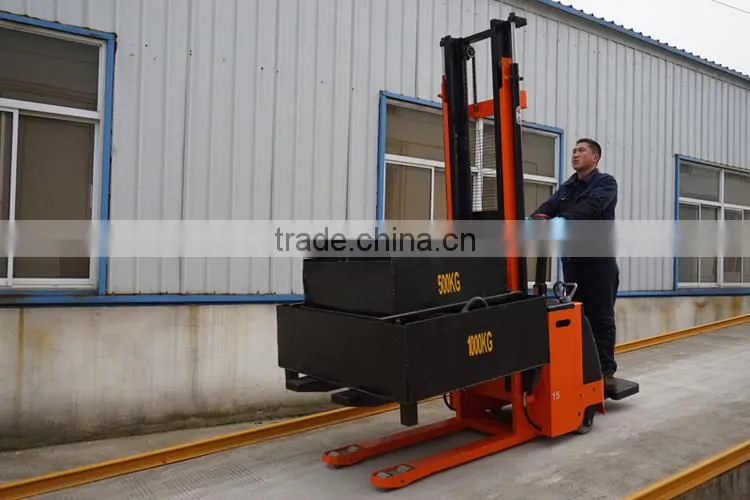

1. Load Capacity Test
2 Ton Can Go Down Mechanical Pallet Truck
2. Gradient Test
2 Ton Can Go Down Mechanical Pallet Truck
Certification
2 Ton Can Go Down Mechanical Pallet Truck
Since 2006
Specializing in pallet truck,pallet stacker,all warehouse handling equipments.
Consecutive sales increasement of 5 years
Passed the ISO9001:2008 and international certificate as CE,BV,SGS
Provide OEM and ODM service to overseas customer
Export to more than 15 countries in Europe,the Middle East,Southeast Asia,Africa,South America and areas etc.
Hydraulic Pallet Trolley
24 hours online service
Enquiry will be replied in 2 hours
One year warranty
1%-2%Spare Parts
CKD and SKD are available
Free parts for any breakdown with convincing evidenc
Hydraulic Pallet Trolley
Q1:Can I have a sample for testing?
A: Actually we think samples are not very important.You can buy from anywhere.But we think
our cargos will better then any others.
Samples will be 10% higher then the cargo.
Q2:Can I add my logo on the kitchen appliances?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range pallet truck it is lifelong maintenance.
Q4 :Do you have inspection procedures for your products?
A:100% self-inspection before packing
Q5:Can we mix the 20ft container?
A: Yes,if the items are meet our min order qty.
Q6:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address:Taizhou city,Jiangsu,China.
Our factory is near Shanghai Airport.We can pick you up in the airport.
Hotel booking service is available . ulic electric pallet1t 1.6m High quality full electric stacker
