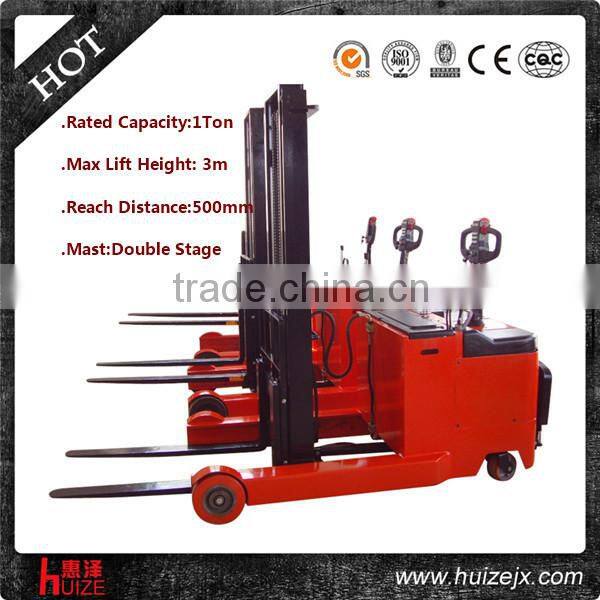

Supply OEM Factory Capacity 1 Ton Height 3000mm Electric Reach Truck Stacker

1.

Feature

1.1

Name

Electric Reach Truck

1.2

Model

HZCQD1030-04

1.3

Mast

Double

1.4

Power

Battery

1.5

Manipulation

Standing Steer Type

1.6

Braking Mode

Electromagnetic braking

1.7

Load Capacity

1000kg

1.8

Load Center

550mm

1.9

Hydro cylinder

Double

1.10

Color

Red, Yellow ,Blue ,Gray

1.11

Surface Treatment

Baking Painted

2.

Wheel

2.1

Wheel Type

Polyurethane

2.2

Driving wheel No.& Size

1pcs, φ250mm*80mm

2.3

Balance wheel No.& Size

2 pcs, φ150mm*50mm

2.4

Load Wheel No. & Size

2 pcs, Φ178mm*80mm

3.

Size

3.1

Single Fork Size

1070mm*100mm*38mm

3.2

Fork Overall Width

200mm~600mm

3.3

Overall Length

3470mm

3.4

Overall Width

1000mm

3.5

Overall height

2000mm

3.6

Max Lifting Height

3000mm

3.7

Lowered Height

30mm

3.8

Reach Distance

500mm

3.9

Forward Max

3°

3.10

Backwards Max

5°

3.11

Aisle Width

1100mm

3.12

Min Aisle Width for Turning Around

4000mm

3.13

Turning Radius

3800mm

4.

Performance

4.1

Traveling Speed(with/without load)

4/6 km/h

4.2

Lifting Speed(with/without load)

60/65 mm/s

4.3

Lowering Speed(with/without load)

100/70 mm/s

4.4

Gradient(with/without load)

5/8 %

4.5

Braking Length(with/without load)

500/350 mm

5.

Driving

5.1

Driving Motor

1.2 KW

5.2

 Lifting Motor

2.5 KW

5.3

Driving Control Type

Horizontal AC

6.

Battery

6.1

Battery Voltage/Capacity

 24V210AH

6.2

Times of Recharged for Battery

750 Times

6.4

Charger

 24V30A
