Condition New
Place of Origin Jiangsu, China
Brand Name Huize
Model Number HZCQD1016-01
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 1 Ton
Max. Lifting Height 1600mm
Min. Lifting Height 30mm
Fork Length 1070mm
Fork Width 600mm
Overall Dimensions 3470mmx1000mmx2000mm
Certification ISO9001,CE,BV
After-sales Service Provided Engineers available to service machinery overseas

9 Years Experienced Factory Electric Reach Truck Stacker in Forklift

Product Description

 Welcome all customers to vist our factory

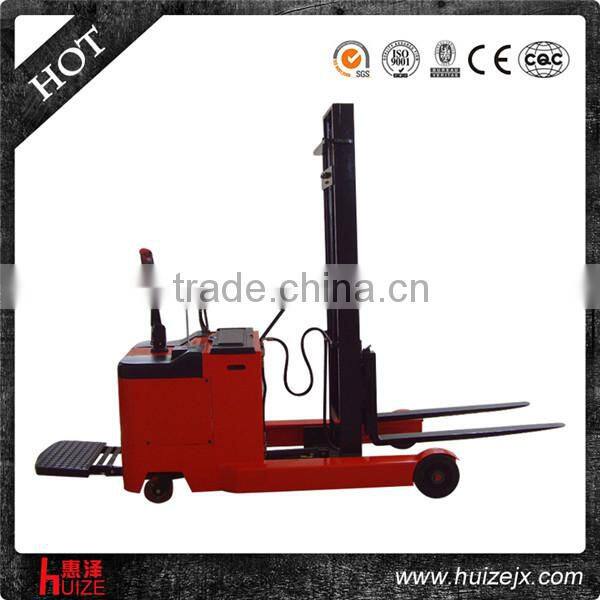

Product Picture

9 Years Focusing on Electric Reach Truck Stacker

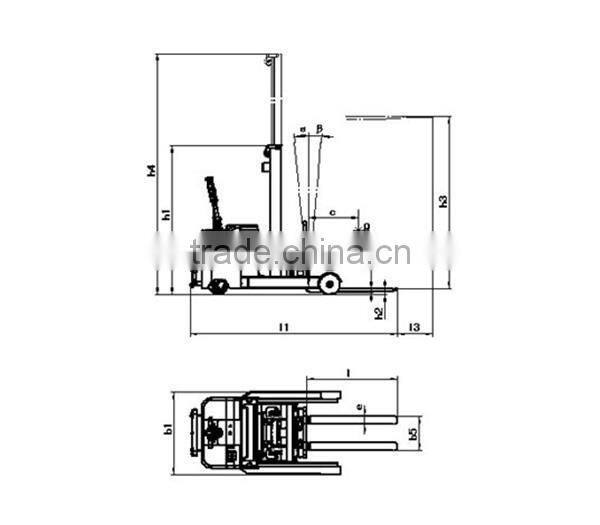

 Drawing

 9 Years Focusing on Electric Reach Truck Stacker



1.

Feature

1.1

Name



Electric Reach Stacker

1.2

Model



HZCQD1016-01

1.3

Mast



 Single

1.4

Power



Battery

1.5

Manipulation



Standing Steer Type

1.6

Braking Mode



Electromagnetic braking

1.7

Load Capacity



1000kg

1.8

Load Center



550mm

1.9

Hydro cylinder



Simple

1.10

Color



Red, Yellow ,Blue ,Gray

1.11

Surface Treatment



Baking Painted

2.

Wheel

2.1

Wheel Type



Polyurethane

2.2

Driving wheel No.& Size



1pcs, φ250mm*80mm

2.3

Balance wheel No.& Size



2 pcs, φ150mm*50mm

2.4

Load Wheel No. & Size



2 pcs, Φ178mm*80mm

3.

Size

3.1

Single Fork Size



1070mm*100mm*38mm

3.2

Fork Overall Width



200mm~600mm

3.3

Overall Length



3470mm

3.4

Overall Width



1000mm

3.5

Overall height



2000mm

3.6

Max Lifting Height



1600mm

3.7

Lowered Height



30mm

3.8

Reach Distance



500mm

3.9

Forward Max



3°

3.10

Backwards Max



5°

3.11

Aisle Width



1100mm

3.12

Min Aisle Width for Turning Around



4000mm

3.13

Turning Radius



3800mm

4.

Performance

4.1

Traveling Speed(with/without load)



4/6 km/h

4.2

Lifting Speed(with/without load)



60/65 mm/s

4.3

Lowering Speed(with/without load)



100/70 mm/s

4.4

Gradient(with/without load)



5/8 %

4.5

Braking Length(with/without load)



500/350 mm

5.

Driving

5.1

Driving Motor



1.2 KW

5.2

 Lifting Motor



2.5 KW

5.3

Driving Control Type



Horizontal AC

6.

Battery

6.1

Battery Voltage/Capacity



 24V210AH

6.2

Times of Recharged for Battery



750 Times

6.4

Charger



 24V30A

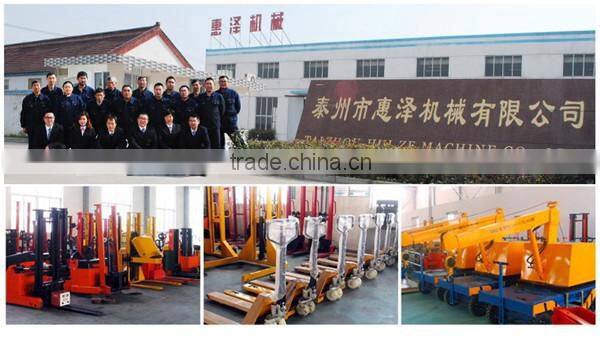

Our WorkShop

9 Years Focusing on Electric Reach Truck Stacker

 9 Years Focusing on Electric Reach Truck Stacker



Company Information

9 Years Focusing on Electric Reach Truck Stacker

9 Years Focusing on Electric Reach Truck Stacker9 Years Focusing on Electric Reach Truck Stacker







FAQ



1. Q: Where is your factory located? Hong far is your factory away from Shanghai Airport?

     A: Our factory is located in Taizhou City,Jiangsu ,China, and It is 3 hours driving from Shanghai International Airport, and we can arrange a car to pick you up if you are interested to visit our factory.



2. Q: How to guarantee products quality?

     A: First, we have our own QC to inspect and check the quality in each process,Second, we welcome your QC to our factory to inspect the goods, Third, we accept the third party inspection.



3. Q: What products are your hot sales products ?

    A: Our hot sales products are Electric Pallet Truck, Semi-Electric Pallet Truck,Electric Stacker,Electric Reach Stacker,Counter Balance Stacker, Aerial Order Picker.



4. Q: What Products are Our Special Products?

    A: 1) 5T/8T Electric Pallet Truck, 2) Electric Lift Platform,3)Electric Stainless Steel Proof-Explosion Pallet Truck,4) 3T Electric Stacker,5) Electric Yarn Roll Pallet Truck,6) Electric Oil Drum with automotive clamp and tilt,7) Electric Paper Roll Truck with automotive clamp and tilt,8) Electric Pallet Truck and Stacker with Scale



5. Q:What is your advantage?

    A: --Quick Delivery

         --Low Maintenance

         --Excellent Service

         --High Quality

         --Lower Cost
