Condition New
Place of Origin Jiangsu, China
Brand Name Huize
Model Number HZCQD1020-02
Type Other
Power Souce DC Motor
Rated Loading Capacity 1000/1250kg
Max. Lifting Height 3000mm
Min. Lifting Height 85mm
Fork Length 1070mm
Fork Width 125mm
Overall Dimensions L3470*W1000*H1530mm
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas

 1000kg 3000mm Electric Reach Stacker

Product Description

What is Our Electric Pallet Stacker feature?                                  1.Equiped with electricity meter

      2. Equiped with hour meter

      3.Equiped with emergency stop button

      4.Equiped with overvoltage and undervoltage protection

      5. Equiped with Anti Slide when upslope

      6. Driving and lifting stably

      7. Easy turning around



What is Our Electric Stacker Picture & Technical Parameter?

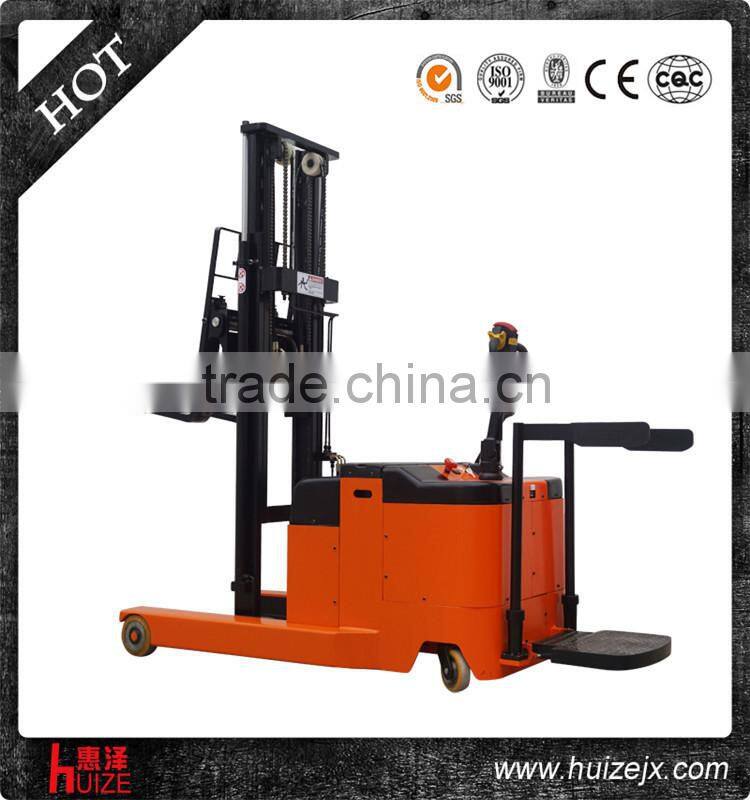

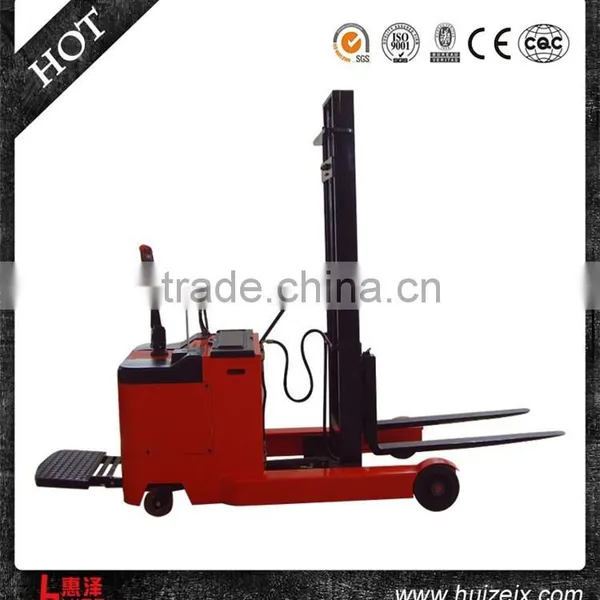

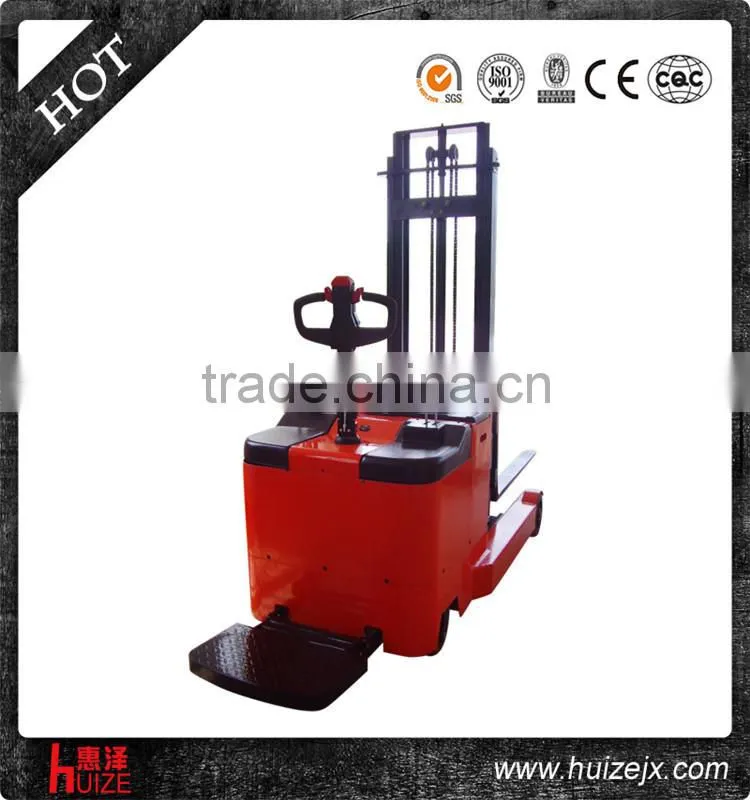

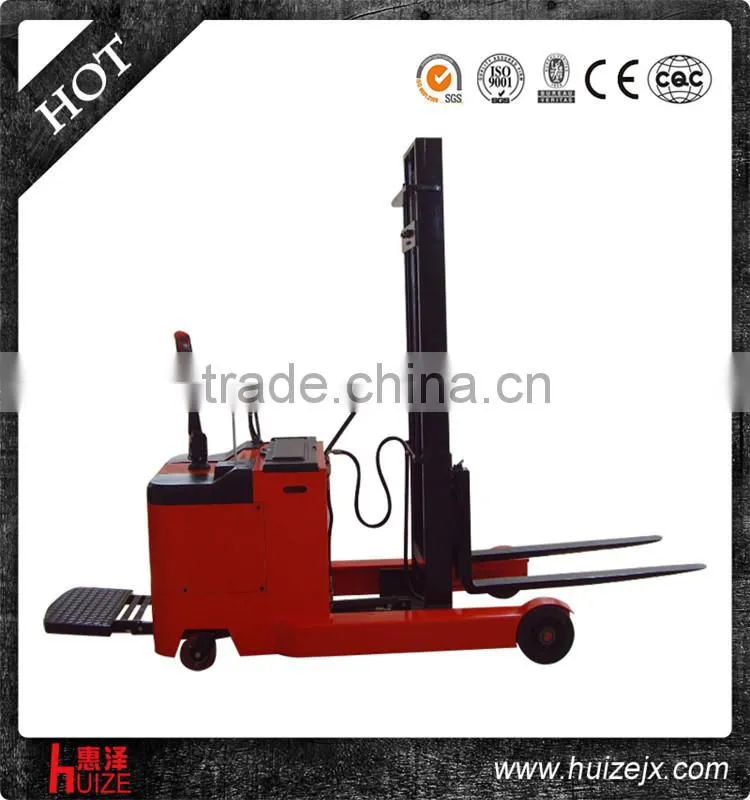

 Electric Pallet Reach Stacker CE 1000 kg 3000mm





1.

Feature

1.1

Name



Electric Reach Stacker

1.2

Model



HZCQD1020-02

1.3

Mast



Single

1.4

Power



Battery

1.5

Manipulation



Standing Steer Type

1.6

Braking Mode



Electromagnetic braking

1.7

Load Capacity



1000kg

1.8

Load Center



550mm

1.9

Hydro cylinder



Double

1.10

Color



Red, Yellow ,Blue ,Gray

1.11

Surface Treatment



Baking Painted

2.

Wheel

2.1

Wheel Type



Polyurethane

2.2

Driving wheel No.& Size



1pcs, φ250mm*80mm

2.3

Balance wheel No.& Size



2 pcs, φ150mm*50mm

2.4

Load Wheel No. & Size



2 pcs, Φ178mm*80mm

3.

Size

3.1

Single Fork Size



1070mm*100mm*38mm

3.2

Fork Overall Width



200mm~600mm

3.3

Overall Length



3470mm

3.4

Overall Width



1000mm

3.5

Overall height



1530mm

3.6

Max Lifting Height



3000mm

3.7

Lowered Height



30mm

3.8

Reach Distance



500mm

3.9

Forward Max



3°

3.10

Backward Max



5°

3.11

Aisle Width



1100mm

3.12

Min Aisle Width for Turning Around



4000mm

3.13

Turning Radius



3800mm

4.

Performance

4.1

Traveling Speed(with/without load)



4/6 km/h

4.2

Lifting Speed(with/without load)



60/65 mm/s

4.3

Lowering Speed(with/without load)



100/70 mm/s

4.4

Gradient(with/without load)



5/8 %

4.5

Braking Length(with/without load)



500/350 mm

5.

Driving

5.1

Driving Motor



1.2 KW

5.2

 Lifting Motor



2.5 KW

5.3

Driving Control Type



Horizontal AC

6.

Battery

6.1

Battery Voltage/Capacity



 24V210AH

6.2

Times of Recharged for Battery



750 Times

6.4

Charger



 24V30A



 Electric Pallet Reach Stacker CE 1000 kg 3000mmElectric Pallet Reach Stacker CE 1000 kg 3000mmElectric Pallet Reach Stacker CE 1000 kg 3000mm



Our Services



One year warranty

1%-2%Spare Parts

 24 hours online service

 ODM and OEM are available

 Enquiry will be replied within 2 hours

 Free parts for any breakdown with convincing evidence

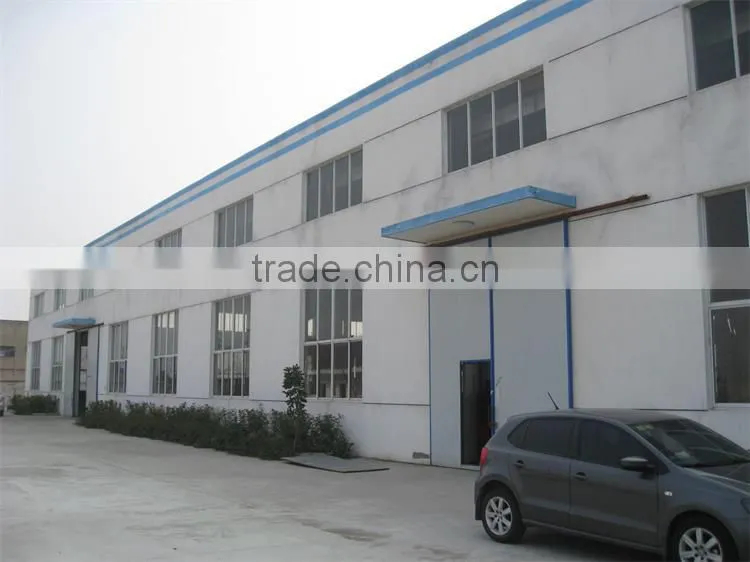

Company Information



Since 2006

Specializing in pallet truck,pallet stacker,all warehouse handling equipments.

Consecutive sales increasement of 5 years

Passed the ISO9001:2008 and international certificate as CE,BV,SGS

Provide OEM and ODM service to overseas customer

Export to more than 15 countries in Europe,the Middle East,Southeast Asia,Africa,South America and areas etc

 Electric Pallet Reach Stacker CE 1000 kg 3000mm




FAQ

1. Q: What is your minimum order quantity?

     A: One Set

 2. Q:What certificates do you have?

     A:We are certificated by ISO9001,CE,SGS and BV to make sure our quality excellent.

 3. Q: How to guarantee products quality?

     A: First, we have our own QC to inspect and check the quality in each process,Second, we welcome your QC to our factory to inspect the goods, Third, we accept the third party inspection.

 4. Q:Why choose Huize factory?

       A: 1.We have professional technology team to design out forklift totally meet customers' requirements.

            2. Excellent after-sale service,and supply the spare parts for free within a year.

            3. Certificated by ISO9001,CE,SGS,BV

            4. Professional Sale Teams to serve customers in time.
