7-Full Electric Clamping and Flipping Paper Truck Made From China Huize

7-Full Electric Clamping and Flipping Paper Truck Made From China Huize thumbnail-1
7-Full Electric Clamping and Flipping Paper Truck Made From China Huize photo-1
US$ 13,567 - 13,867 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Diaper Machine
Processing Type:
Paper Folding Machine
Contact Supplier Request Quote Chat Now
Taizhou Huize Machine Limited Company
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB ShangHai por t china of china HUIZE brand fork lift
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Diaper Machine
Processing Type Paper Folding Machine
Place of Origin Jiangsu, China
Brand Name HuiZe Brand fork lift made from china
Model Number HZFDDDDZ-06
Voltage 24v
Power(W) 24/210(1 group) v/ah
Dimension(L*W*H) 2300*1500*2400
Weight 864/860 Kgs
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

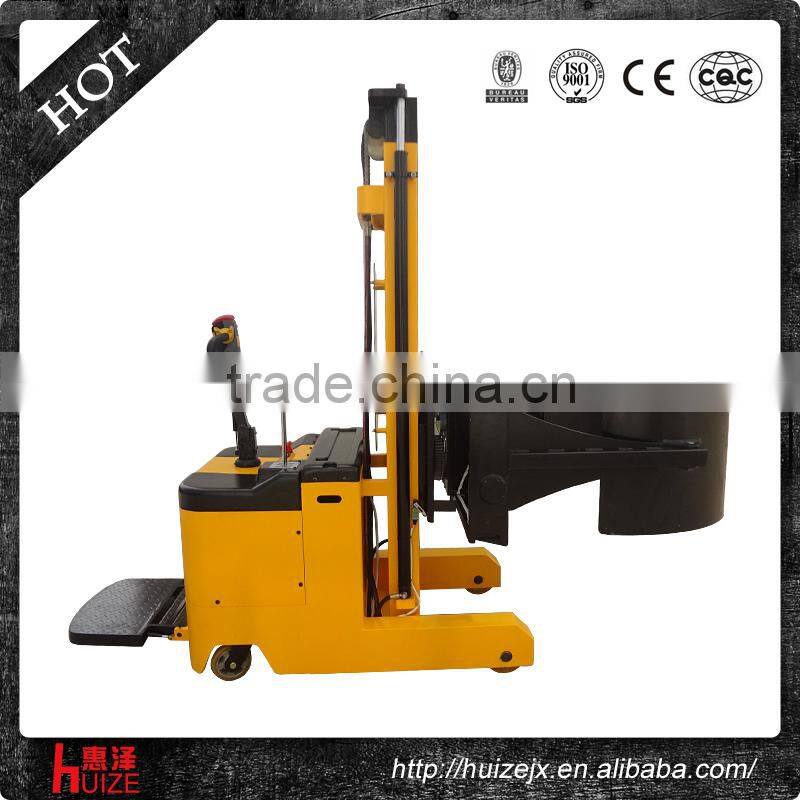

7-Full electric clamping and flipping paper truck made from china huize

13-6-ORDERNo130007-MODEL :HZFDDDDZ-06 product cost

FDDDDZ-400-1.6-90-210-0

1

Characteristic

1.1

Name



Full electric clamping and flipping paper truck

2.1

Model



HZFDDDDZ-06

3.1

Mast series



Single

4.1

Dynamic form



Battery

5.1

Operation type



Standing

6.1

Braking mode



Electromagnetic braking

7.1

Load capacity

Q(Kg)

400

8.1

Flipping way



Electric rotation

9.1

Hydraulic cylinder



Single

10.1

Color



Red, yellow

11.1

Surface treatment



Paint

2

Application

12.2

Main application



Remove and shift in the warehouse and workshop in paper industry

3

Wheel

13.3

Wheel type



Polyurethane

14.3

The number of driving wheel / balance wheel / loading wheel



1/2/2

4

Size

15.4

Lifting height

h3(mm)

1600

16.4

Fixture minimum height

h2(mm)

540

17.4

Overall length

L1(mm)

2245

18.4

Overall width

b1(mm)

1429

19.4

Fixture size

Φf

Φ1000

20.4

Flipping angle



Unidirectional turn 90°

21.4

Overall height

h1(mm)

2000

22.4

Front wheel size

mm

Φ150*50

23.4

Driving wheel size

mm

φ250*80

24.4

Balance wheel size

mm

Φ150*50

25.4

Channel width

Ast(mm)

1500

26.4

Minimum channel width truck turning around

Ast(mm)

3000

27.4

Turning radius

Wa(mm)

2500

5

Performance

28.5

Walking speed, loaded / unloaded

Km/h

4/6

29.5

Lifting speed, loaded / unloaded

mm/s

40/45

30.5

Falling speed, loaded / unloaded

mm/s

50/45

31.5

Climbing gradient, loaded/unloaded

%

6/8

32.5

Braking distance, loaded / unloaded

mm

500/400

6

Driving

33.6

Driving motor power

KW

1.2

34.6

Lifting motor power

KW

2.5

35.6

Battery voltage / capacitor

V/Ah

24/210(1 group)

36.6

Battery repeated charging times



750

37.6

Battery weight

Kg

187

38.6

Charger specification



24V30A

7

Weight

39.7

Gross weight (including package) / net weight

Kg

864/860

40.7

Charger gross weight (including package) / net weight

Kg

6.4/6

8

Production and delivery

41.8

Monthly production capacity

Set

80

42.8

Delivery time per one set

Day

20

43.8

Delivery time per ten sets

Month

1

9

Packaging and transport

44.9

Packing method



Overall packaging

45.9

Packaging



Angle iron + bubble wrap

46.9

Package size

L/B/H(mm)

2300*1500*2050

47.9

Charger package size

L/B/H(mm)

420*210*190

48.9

Matching boxes of each product



2

49.9

Number of 20-foot containers

Set

7

50.9

Number of 40-foot containers

Set

14

10

Others

51.10

Product certification



CE

52.10

Product declaration name



Other handling and loading equipment

53.10

FOB Shanghai

USD/set

13267

54.10

HS code



8428909090

55.10

Order No



130006



7-Full electric clamping and flipping paper truck made from china huize7-Full electric clamping and flipping paper truck made from china huize7-Full electric clamping and flipping paper truck made from china huize7-Full electric clamping and flipping paper truck made from china huize7-Full electric clamping and flipping paper truck made from china huize7-Full electric clamping and flipping paper truck made from china huize

Taizhou huize machinery limited company is china biggest professional Manufacture all kinds of fork lift,China

HUIZE brand electric stacker,China HUIZE brand pallet truck,China HUIZE brand crane,China HUIZE brand

 plat form,China HUIZE brand lift table,China HUIZE brand boom lift,China HUIZE brand drum truck,China

HUIZE brand paper drum lift,China HUIZE brand pallet return lift and so on products.Our factory since 2006.

There are 9 reasons of choosing HUIZE machinery limited company:

1, HZ is the NO. one brand of mechanical truck ,

2, delicate appearance and good quality strictly conform to  ISO production system,

3, china huize brnad fork lift all products passed  CE Certificate.

5 delivery test items.4, Manufacture center work carefully .

5, the company specialized in producing electric truck and electric lifting truck .

6, patent protection and brand authoring.

7 Key design key control technology.

8, humanized design and easy to operate.

9, beautiful color , reliable ,and longtime use .

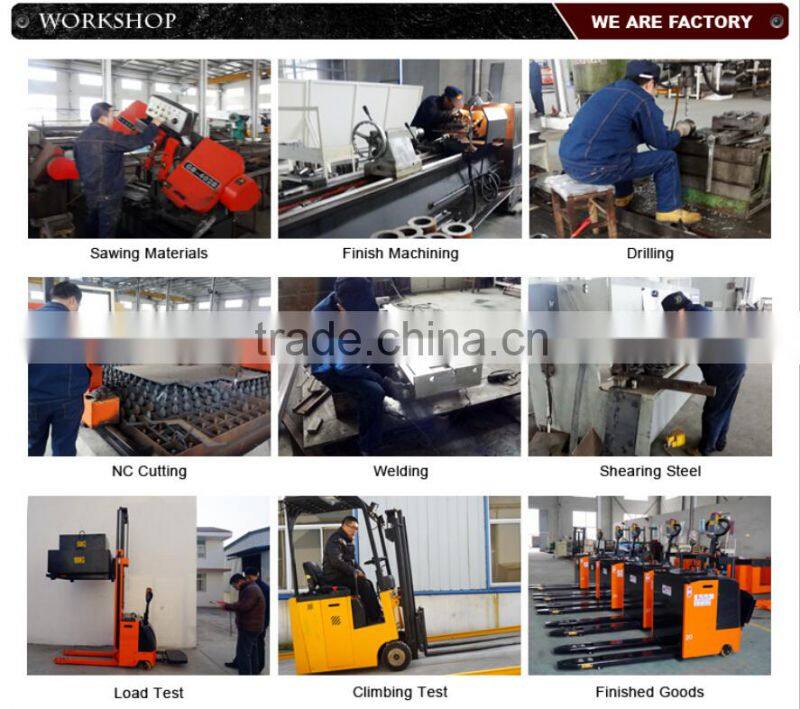

Our factory have 20000 meters workroom and have 200 work members.Company achievements:

4A integrity enterprise of jiangsu province ,product conform to ISO900one and CE ,

utility model patent certification.

wlcome to china huize fork lift fatory and visit china huize fork lift factory sample room.

hope we can eastablish good both benefit and happying cooperation in future time.



7-Full electric clamping and flipping paper truck made from china huize7-Full electric clamping and flipping paper truck made from china huize7-Full electric clamping and flipping paper truck made from china huize7-Full electric clamping and flipping paper truck made from china huize7-Full electric clamping and flipping paper truck made from china huize7-Full electric clamping and flipping paper truck made from china huize

How are you? Hope you all fine!

We are one biggest professional manufacture all kinds of fork lift,electric stacker,

Pallet truck  crane  boom lift plat form electric pallet truck  reach forill  fiuck  lift table drum truck and so on products in china.

Mr King China
Taizhou Huize Machine Co.,Ltd
ADD:Group 10, Sanchen Village, Zhangdian Town, Jiangyan District,
Taizhou City, Jiangsu, China 225300
Office Tel:  86 523 88548228
Office Fax: 86 523 88548166
Office Mobile: 86 18121709288
Email: sales4(@)
Website:
Alibaba: http://huizejx.en.china.cnMad-in-China:
