2 Ton Mechanical Pallet Truck

2 Ton Mechanical Pallet Truck thumbnail-1
2 Ton Mechanical Pallet Truck photo-1
US$ 2,000 - 2,860 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HUIZE
Contact Supplier Request Quote Chat Now
Taizhou Huize Machine Limited Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name HUIZE
Model Number HZSCBD20-03
Type Powered Pallet Truck
Power Souce DC Motor
Rated Loading Capacity 2 Ton
Max. Lifting Height 270mm
Min. Lifting Height 155mm
Fork Length 1150mm
Fork Width 550mm
Overall Dimensions L1*b1*h1=1850mm*700mm*1295mm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

  2 Ton Mechanical Pallet Truck







We are 9 years' pallet truck manufacturer

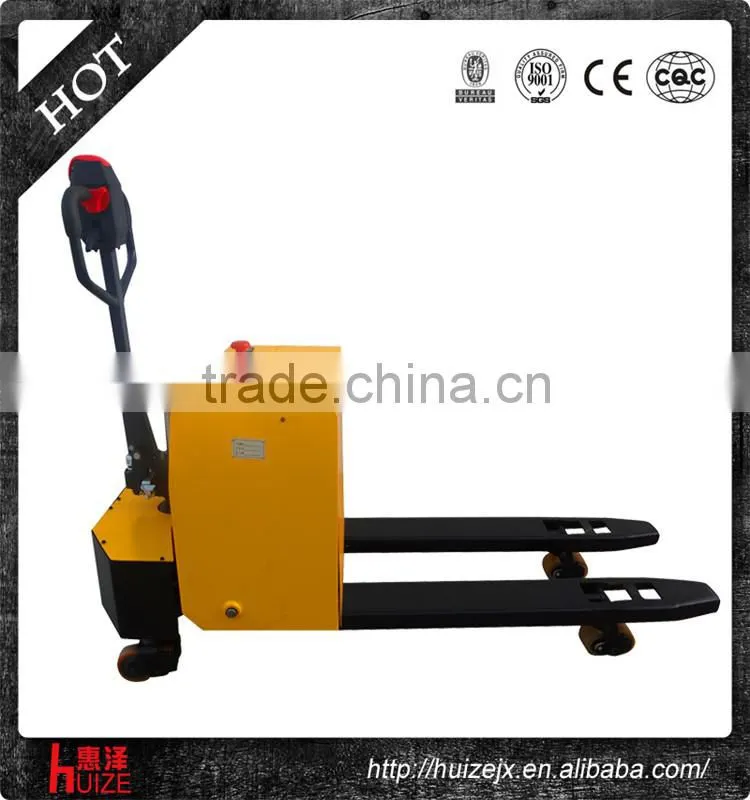

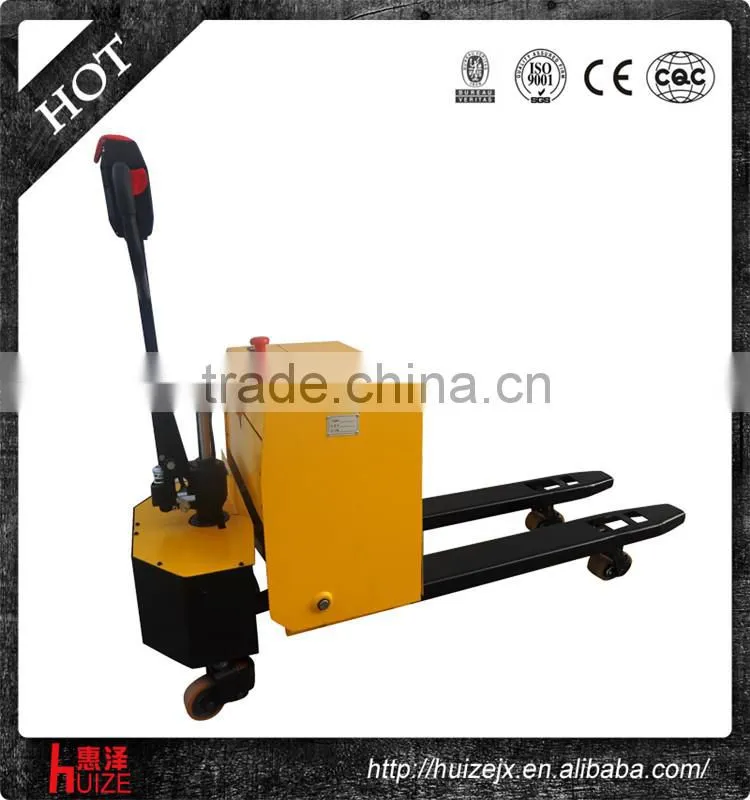

Product Pictures



2 Ton Mechanical Pallet Truck2 Ton Mechanical Pallet Truck





 2 Ton Mechanical Pallet Truck

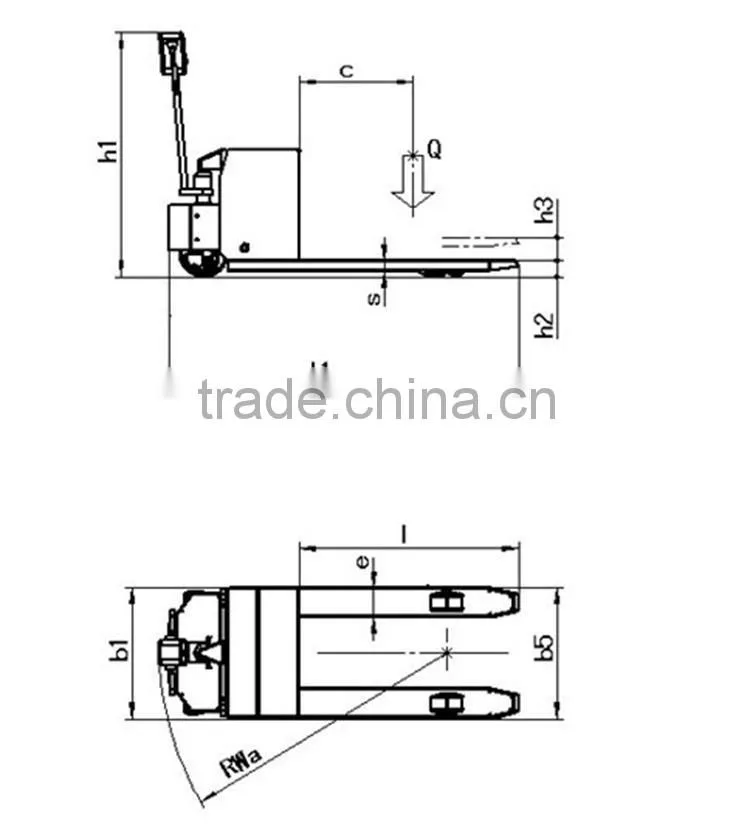

Basic Technical Parameters

Loaded Capacity Q 2 Ton
Load Center C 600mm
Fork Size b5 *l 550mm*1150mm
Wheel Type   Nylon Wheel
Battery Capacity   165AH
Driving Control Type   Series Excitation
Color   Yellow









More Parameters



Feature
Power   Battery
Manipulation   Manual Hydraulic
Hydrocylinder   Diecast
Surface Treatment   Baked Paint
Wheel
Wheel Type   Nylon Wheel
Driving wheel No.& Size   1pcs, φ250mm*80mm
Balance wheel No.& Size   2 pcs, φ100mm*40mm
Load Wheel No. & Size   4 pcs, Φ80mm*70mm
Size
Max Lifting Height h3 115mm
Min Lowered Height h2 155mm
Overall Length L1 1850mm
Overall Width b1 700mm
Overall Height h1 1295mm
Aisle Width(with 1000*1200mm pallet)   1100mm
Aisle Width(with 800×1200mm pallet)   800mm
Min Aisle Width for Turning Around    2200mm
Turning Radius RWa 1900mm
Performance
Traveling Speed(with/without load)   4/6 km/h
Lifting Speed(with/without load)   7/7.5 mm/hydaulic
Lowering Speed(with/without load)   50/45 mm/s
Gradient(with/without load)   5/8 %
Braking Length(with/without load)   500/350 mm












 Certificates

2 Ton Mechanical Pallet Truck2 Ton Mechanical Pallet Truck









Workshop Show

 2 Ton Mechanical Pallet Truck









Company Introduction

2 Ton Mechanical Pallet Truck

Huize Machine Co.,Ltd Specilizes in Electric Pallet Truck,Electric Stacker, Electric Counter Balance Stacker,Electric Oil Drum Truck, Electric Paper Roll Truck,Electric Crane, Electric Lift Platform and Aerial Order Picker,etc.

We were established in 2006 year, and located in Sancheng Industrial Zone,Jiangyan District,Taizhou City,Jiangsu Province,China. It is about 2.5 hours driving to Shanghai Airport, the transportation is very convenient.

Since our foundation in 2006, we have always insisted on quality is our life,so we operate and inspect every production process strictly to make sure all the products out of our factory 100% qualified, and also every year,our R&D team regularly develop 4-6 new models forklifts in light of market demands



Now we have exported our products to India, Pakistan, Vietam,Singapore, Australia,Saudi Arabia, USA,Canada,etc over 30 countries, and we have very high reputation among all our customers.





FAQ



1. Q: What is your minimum order quantity?

     A: One Set



2. Q:What certificates do you have?

     A:We are certificated by ISO9001,CE,SGS and BV to make sure our quality excellent.



3. Q: How to guarantee products quality?

     A: First, we have our own QC to inspect and check the quality in each process,Second, we welcome your QC to our factory to inspect the goods, Third, we accept the third party inspection.



4. Q:Why choose Huize factory?

    A:1.Supply required products with competitive price

          2.Good after sales service

          3.Weclome customers visit our factory to inspect and experience products

          4.Supply our professional suggestion to help customers sell and use our products better
