5T Additional equipment electric tow trucks
- 0 per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Jiangsu, China | Brand Name | HUIZE | |
Model Number | HZQDD5001-24 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

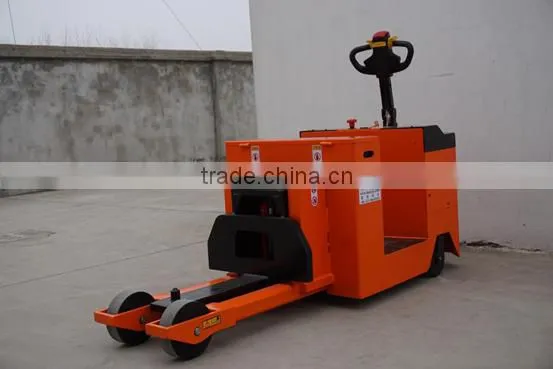

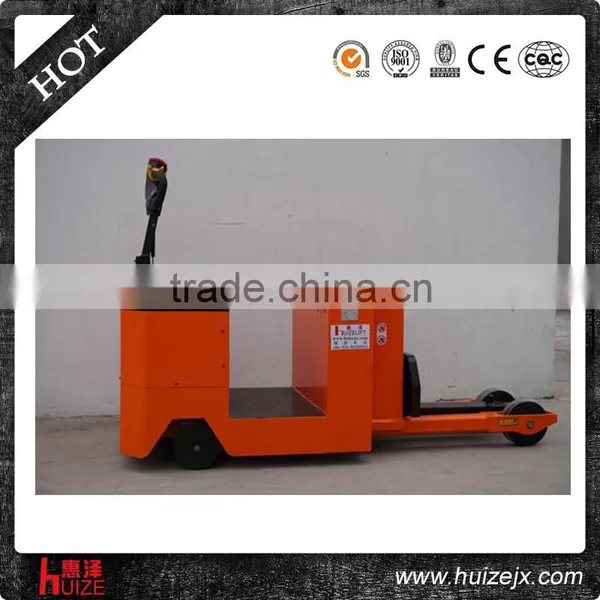

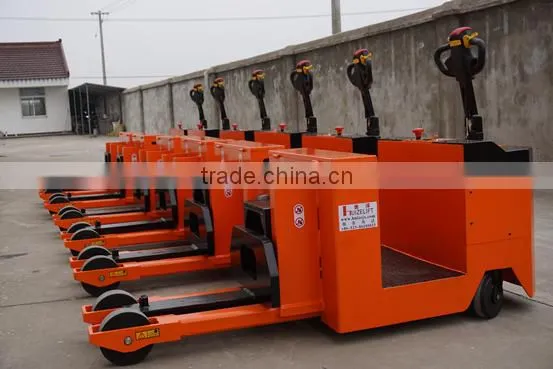

5T Additional equipment electric tow trucks
Product description 5T Additional equipment electric tow trucks
Feature | ||||
1 | Name |
| 5T Additional equipment electric tow trucks | |
2 | Model |
|
HZQDD5001-24
| |
3 | steering | EPS | ||
4 | Power form |
| Battery | |
5 | Operation Type |
| sit down | |
6 | Rated traction | Q(Kg) | 5000 | |
7 | Load center distance | C(mm) | 500 | |
8 | Hydraulic cylinder |
| Double | |
9 | colour |
| red yellow blue gray | |
10 | Surface treatment |
| Paint | |
11 | GW/NW | KG | 995/900 |
Size | |||
1 | Overall length | mm | 2145 |
2 | Overall width | mm | 850 |
3 | Overall height | mm | 1448 |
4 | Rear wheel size | mm | φ230*80 |
5 | Driving wheel size | mm | φ310*110 |
6 | Balance wheel size | mm |
φ200*75
|
7 | passage width | Ast(mm) | 900 |
8 | Minimum channel width truck turning around | Ast(mm) | 3000 |
9 | turning radius | Wa(mm) | 2600 |
Driving | |||
1 | Driving motor | Kw | 3 |
2 | 200 | ||
3 | Battery voltage/capacitance | V/Ah | 24/210(12/group) |
4 | Battery charged repeatedly |
| 750 |
5 | Battery Weight | Kg | 187 |
6 | Charger |
| 24V30A |
7 | Driving control type |
| AC |
8 | Driving motor form |
| vertical |
Others | |||
1 | Specify product certification |
| CE,BV,SGS,ISO90001 |
2 | Name of customs declaration |
| Electric pallet truck |
3 | FOB |
| shanghai |
4 | HS code |
| 8428909090 |
QA 3t 5T Additional equipment electric tow trucks
Certifications v 5T Additional equipment electric tow trucks
Applications v 5T Additional equipment electric tow trucks
and some other places(Workshop,Warehouse,Airport, Railway Station ,shipyard and so on) where need to carry and shift.
Workshop 5T Additional equipment electric tow trucks
Our service 5T Additional equipment electric tow trucks
F.A.Q 2t 5T Additional equipment electric tow trucks
1.Q:Does your factory have favorable?
A: Our factory will offer customers 3% vulnerable parts in free .
2.Q:Does your factory accept customizing?
A:Yes,pls send your reguirements to sales3(@).
3.Q: Does your factory accept Neutral Packing and Designed Brand?
A:Yes,we accept.
4:Q:Which is the nearest airport to your factory?
A:Shanghai.We can take you at the airport and provide accommodation.
5.A:Does your factory provide favorable?
Q:Yes,Our factory will offer customers 3% free vulnerable parts .
