Fork Lift Truck Scales
- 120 Set / Sets per Month
- Shanghai
- T/T L/C Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | HUIZE |
Model Number: | HZSCBD20-03 | Type: | Powered Pallet Truck | Power Souce: | DC Motor |
Rated Loading Capacity: | 2 Ton | Max. Lifting Height: | 270mm | Min. Lifting Height: | 155mm |
Fork Length: | 1150mm | Fork Width: | 550mm | Overall Dimensions: | L1*b1*h1=1850mm*700mm*1295mm |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Fork Lift Truck Scales 2 Ton
We are 9 years' pallet truck manufacturer

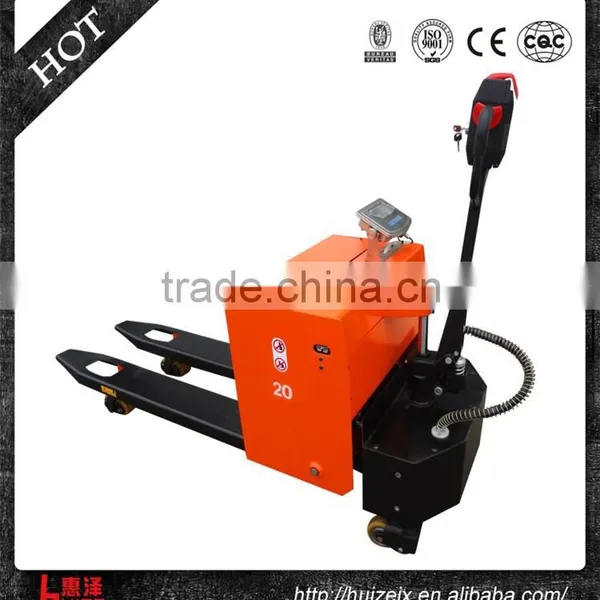

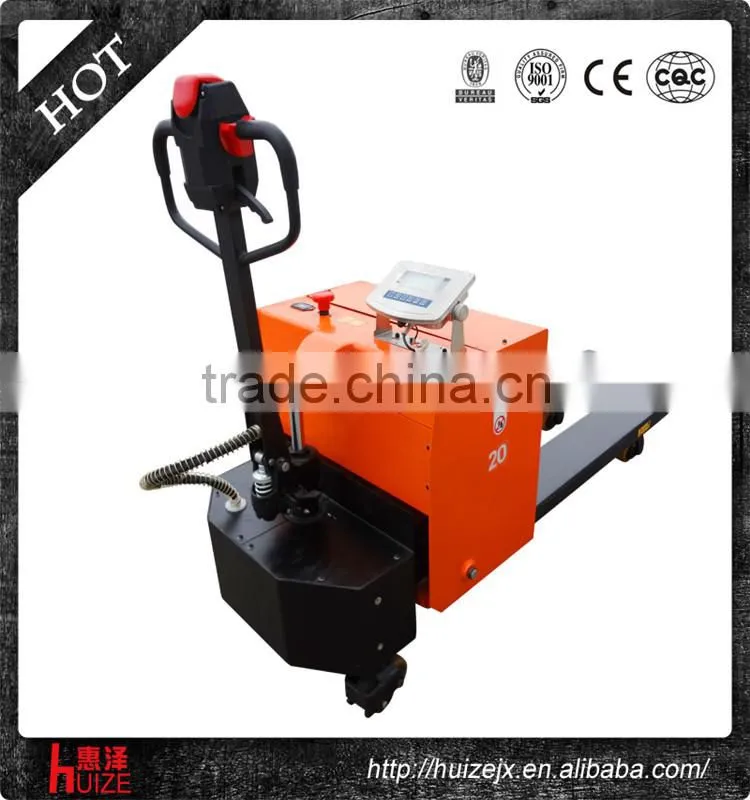

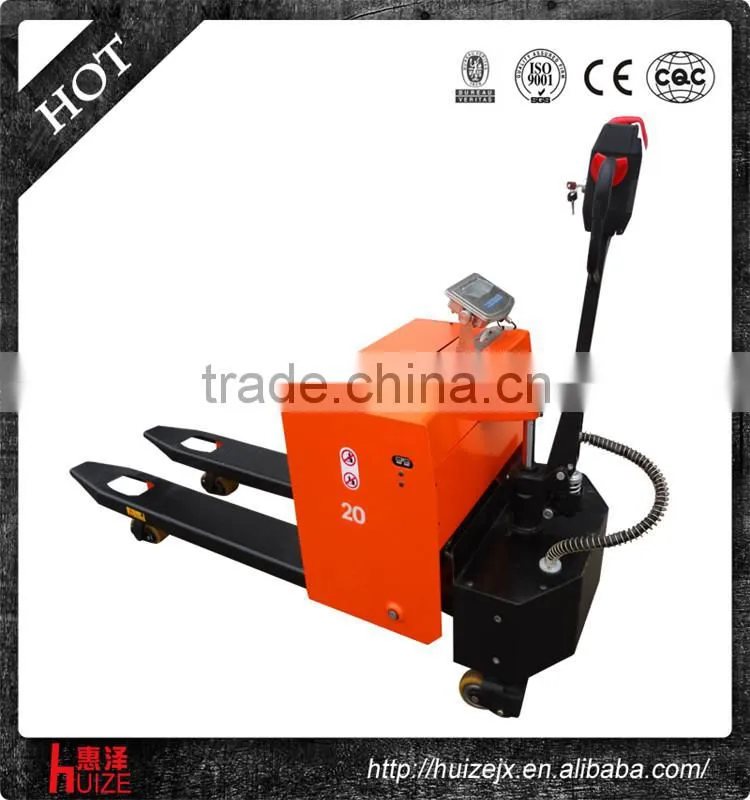

Product Pictures
Basic Technical Parameters
Loaded Capacity | Q | 2 Ton |
Load Center | C | 600mm |
Fork Size | b5 *l | 550mm*1150mm |
Wheel Type | Nylon Wheel | |
Battery Capacity | 165AH | |
Driving Control Type | Series Excitation | |
Color | Yellow |
More Parameters
Feature | ||
Power | Battery | |
Manipulation | Manual Hydraulic | |
Hydrocylinder | Diecast | |
Surface Treatment | Baked Paint | |
Wheel | ||
Wheel Type | Nylon Wheel | |
Driving wheel No.& Size | 1pcs, φ250mm*80mm | |
Balance wheel No.& Size | 2 pcs, φ100mm*40mm | |
Load Wheel No. & Size | 4 pcs, Φ80mm*70mm | |
Size | ||
Max Lifting Height | h3 | 115mm |
Min Lowered Height | h2 | 155mm |
Overall Length | L1 | 1850mm |
Overall Width | b1 | 700mm |
Overall Height | h1 | 1295mm |
Aisle Width(with 1000*1200mm pallet) | 1100mm | |
Aisle Width(with 800×1200mm pallet) | 800mm | |
Min Aisle Width for Turning Around | 2200mm | |
Turning Radius | RWa | 1900mm |
Performance | ||
Traveling Speed(with/without load) | 4/6 km/h | |
Lifting Speed(with/without load) | 7/7.5 mm/hydaulic | |
Lowering Speed(with/without load) | 50/45 mm/s | |
Gradient(with/without load) | 5/8 % | |
Braking Length(with/without load) | 500/350 mm |
Certificates
Workshop Show
Company Introduction
Huize Machine Co.,Ltd Specilizes in Electric Pallet Truck,Electric Stacker, Electric Counter Balance Stacker,Electric Oil Drum Truck, Electric Paper Roll Truck,Electric Crane, Electric Lift Platform and Aerial Order Picker,etc.
We were established in 2006 year, and located in Sancheng Industrial Zone,Jiangyan District,Taizhou City,Jiangsu Province,China. It is about 2.5 hours driving to Shanghai Airport, the transportation is very convenient.
Since our foundation in 2006, we have always insisted on quality is our life,so we operate and inspect every production process strictly to make sure all the products out of our factory 100% qualified, and also every year,our R&D team regularly develop 4-6 new models forklifts in light of market demands
Now we have exported our products to India, Pakistan, Vietam,Singapore, Australia,Saudi Arabia, USA,Canada,etc over 30 countries, and we have very high reputation among all our customers.
FAQ
1. Q: What is your minimum order quantity?
A: One Set
2. Q:What certificates do you have?
A:We are certificated by ISO9001,CE,SGS and BV to make sure our quality excellent.
3. Q: How to guarantee products quality?
A: First, we have our own QC to inspect and check the quality in each process,Second, we welcome your QC to our factory to inspect the goods, Third, we accept the third party inspection.
4. Q:Why choose Huize factory?
A:1.Supply required products with competitive price
2.Good after sales service
3.Weclome customers visit our factory to inspect and experience products
4.Supply our professional suggestion to help customers sell and use our products better
