Home > Products > Pallet Truck > Electric Mobile Scissor Lift Pallet Truck

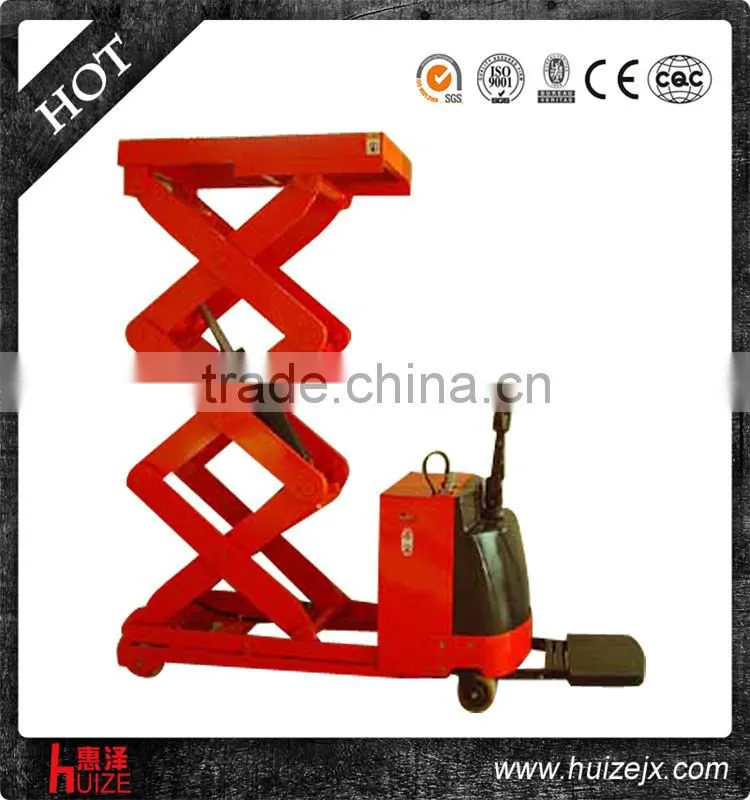

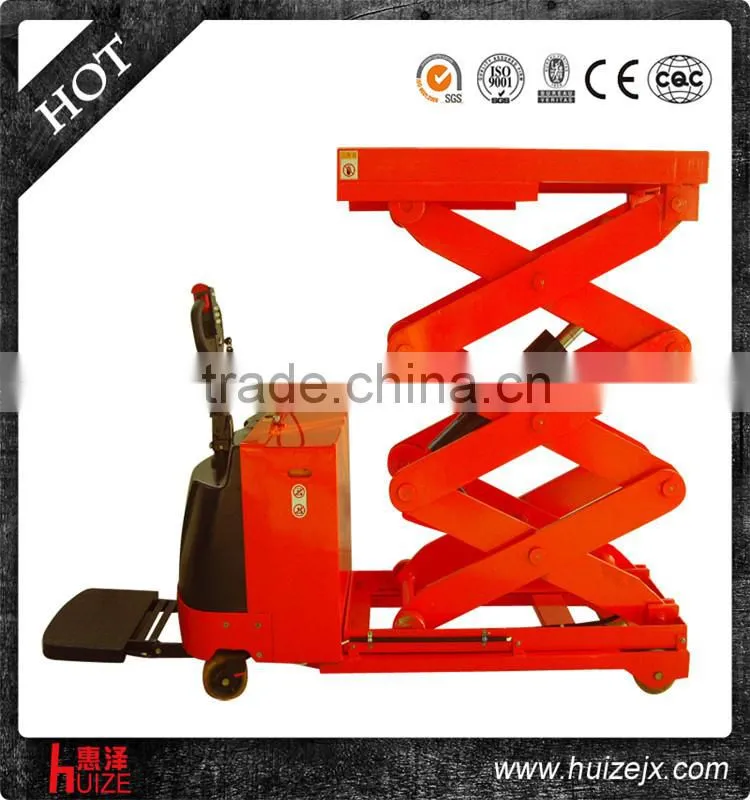

Electric Mobile Scissor Lift Pallet Truck
- 80 Piece / Pieces per Month
- Shanghai
- T/T L/C Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | HUIZE |
Model Number: | HZCDD10-16 | Type: | Powered Pallet Truck | Power Souce: | AC Motor |
Rated Loading Capacity: | 1Ton | Max. Lifting Height: | 1200mm | Min. Lifting Height: | 430mm |
Fork Length: | 1150mm | Fork Width: | 685mm | Overall Dimensions: | 2250x850x1500mm |
Certification: | CE,BV | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2 Ton Electric Scissor Lift Pallet Truck
One-Stop Warehouse Handling Solutions
Product Character
1. A fully powered pallet truck can lift and transfer pallets quickly and easily
2. The structure is firm and durable
3. The turning radius is small to operate lightly and nimbly
4. It can work nonstop for 6 hours after full charging
5. Continuously work 8~10 hours
6. High Safety Operation
Basic Features
1. Rated Capacity: 1 Ton
2. Load Center: 600mm
3.Fork Size: 685mm*1150mm
4. Battery: 24V165AH
5.Wheel: Polyurathane
6. Driving Wheel: AC Horizontal
Application
1. FOR FOOD FACTORY
2. FOR TEXTILE FACTORY
3. FOR MEDICAL FACTORY
4. FOR PLASTIC FACTORY
5. FOR CHEMICAL FACTORY
6. FOR ARRICULTURE FACTORY
ALL THE INDUTRIES
Certificate
CE Certificate
Executive Standard:
EN12100-1:2003+A1:2009, EN12100-2:2003+A1:2009
EN1726-1:1999,EN60204-1:2006+A1:2009
Min Order: 1 Sets
Port: Shanghai,Ningbo
Payment: TT, LC
Delivery : 10-15 days after received 30% deposit
Package: Standard Export Package
Photos
Electric Pallet Truck, Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck
Technical Parameter
Feature | ||
Rated Loading Capacity | 1 Ton | |
Load Center | 600mm | |
Power | Battery | |
Manipulation | Stand-on Steer Type | |
Pump Hydrocylinder | Double | |
Surface Treatment | Baked Paint | |
Wheel | ||
Wheel Type | Polyurethane Solid Wheel | |
Driving wheel Size | φ250mm*80mm | |
Balance wheel Size | φ125mm*50mm | |
Load Wheel Size | φ80mm*70mm | |
Size | ||
Max Lifting Height | 1200mm | |
Min Lowered Height | 430mm | |
Platform Height | 1100mm | |
Platform Width | 600mm | |
Overall Length | 1980mm | |
Overall Width | 720mm | |
Aisle Width | 800mm | |
Min Aisle Width for Turning Around | 2600mm | |
Turning Radius | 1900mm | |
Performance | ||
Traveling Speed(with/without load) | 4/6 km/h | |
Lifting Speed(with/without load) | 45/50 mm/s | |
Lowering Speed(with/without load) | 50/45 mm/s | |
Gradient(with/without load) | 5/8 % | |
Braking Length(with/without load) | 500/350 mm |
Our Service
24 hours online service
Enquiry will be replied in 2 hours
One year warranty
1%-2%Spare Parts
OEM and DEM are available
Free parts for any breakdown with convincing evidence
Company Introduction
Huize Machine Co.,Ltd Specilizes in Electric Pallet Truck,Electric Stacker, Electric Counter Balance Stacker,Electric Oil Drum Truck, Electric Paper Roll Truck,Electric Crane, Electric Lift Platform and Aerial Order Picker,etc.
We were established in 2006 year, and located in Sancheng Industrial Zone,Jiangyan District,Taizhou City,Jiangsu Province,China. It is about 2.5 hours driving to Shanghai Airport, the transportation is very convenient.
Since our foundation in 2006, we have always insisted on quality is our life,so we operate and inspect every production process strictly to make sure all the products out of our factory 100% qualified, and also every year,our R&D team regularly develop 4-6 new models forklifts in light of market demands
Electric Pallet Truck, Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck
Now we have exported our products to India, Pakistan, Vietam,Singapore, Australia,Saudi Arabia, USA,Canada,etc over 30 countries, and we have very high reputation among all our customers.
Strict Quality Control: 48 hours 100% inpsection of electronic parts test,100% Quality Control before delivery,includin Noisy,Driving,Lifting,and Welding Inspection
FAQ
Q:What's my consideration when i choose an electric pallet truck?
A: -The weight of goods.
-The Battery Capacity you require.
Q:What are the benefits of being a Huize Pallet Truck distributor?
A: - Special discount .
- Marketing protection.
- Priority of launching new design.
- Point to point technical supports and after sales services.
Q: How can i become a distributor of Huize?
A: Contact us immediately for further details by sending us an inquiry.
