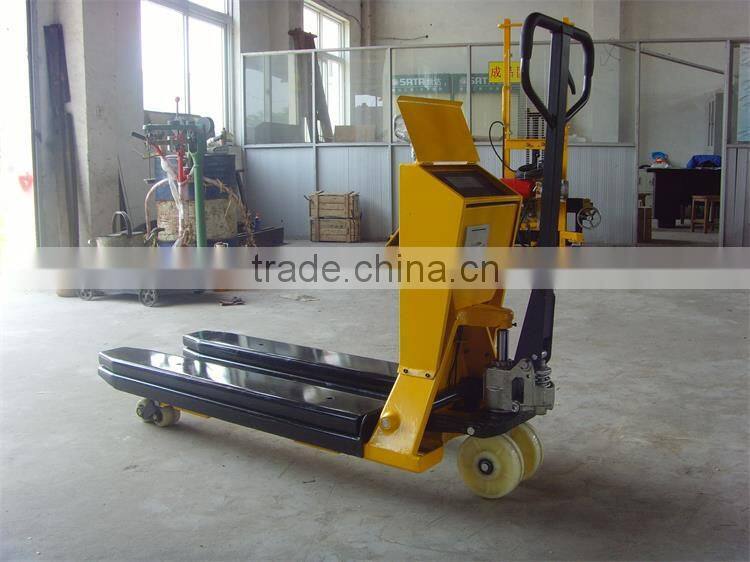

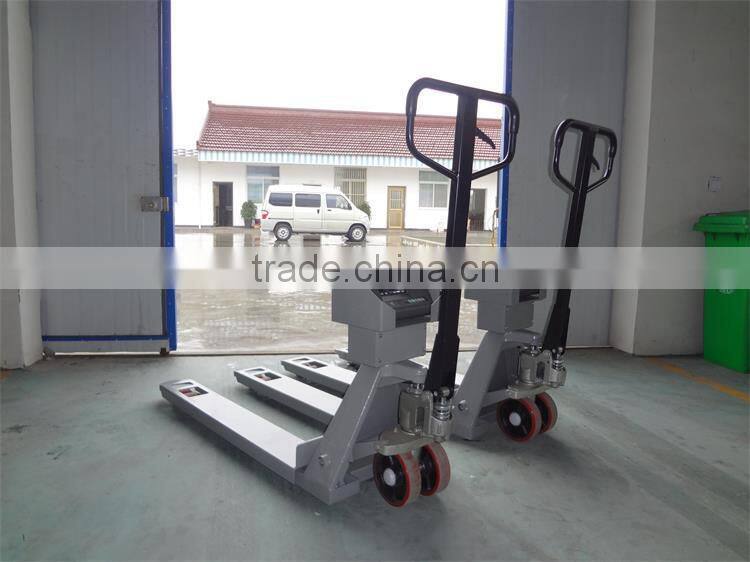

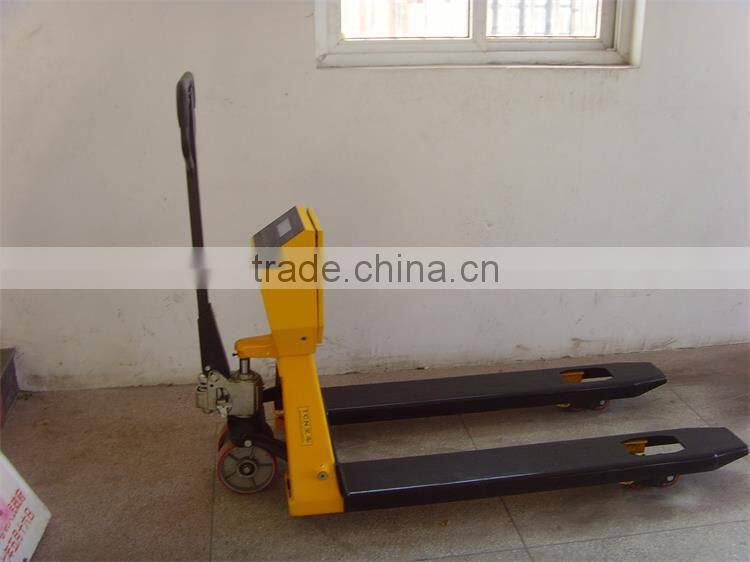

Hand Hydraulic Pallet Trucks With Scales
Characteristics
1.Truck body is heavy duty design, and wearable rider rings are equiped on the main moving parts
2.Hydrocylinder is diecast, beautiful appearance, firm and durable
3. coated chromium piston rod,inner overflow valves supply overload protection,and control lowering speed
4.Low maintain cost, suitable for use in the super market,workshop,warehouse,etc
1. |
Feature |
||
1.1 |
Name |
|
Pallet Trucks With Scales |
1.2 |
Model |
|
HZCBY10-04 |
1.5 |
Load Capacity |
|
1000kg |
1.6 |
Load Center |
|
600mm |
1.7 |
Hydro cylinder |
|
Diecast |
1.8 |
Color |
|
Red, Yellow ,Blue ,Gray |
1.9 |
Surface Treatment |
|
Baked Paint |
2. |
Wheel |
||
2.1 |
Wheel Type |
|
Nylon |
2.3 |
Balance wheel No.& Size |
|
2 pcs, φ180mm*50mm |
2.4 |
Load Wheel No. & Size |
|
4 pcs, Φ80mm*70mm |
3. |
Size |
||
3.1 |
Fork Size |
|
1220mm*685mm |
3.3 |
Overall Length |
|
1620mm |
3.4 |
Overall Width |
|
685mm |
3.5 |
Overall height |
|
1230mm |
3.6 |
Lifting Height |
|
115mm |
3.7 |
Lowered Height |
|
85mm |
3.8 |
Aisle Width(with 1000*1200mm pallet) |
|
1100mm |
3.9 |
Aisle Width(with 800×1200mm pallet) |
|
900mm |
3.10 |
Min Aisle Width for Turning Around |
|
2000mm |
3.11 |
Turning Radius |
|
1700mm |
4. |
Performance |
||
4.2 |
Lifting Speed(with/without load) |
|
7/7.5 mm/press |
4.3 |
Lowering Speed(with/without load) |
|
120/40mm/s |
4.4 |
Gradient(with/without load) |
|
5/8 % |
7. |
Weight |
||
7.1 |
G.W/N.W |
|
85/82 kg |
8. |
Production and delivery |
||
8.1 |
Monthly Production Capacity |
|
1000 sets |
8.2 |
Delivery Time for 10 Sets |
|
7 work days |
1.Supply required products with competitive price
2.Good after sales service
3.Weclome customers visit our factory to inspect and experience products
4.Supply our professional suggestion to help customers sell and use our products better
Taizhou Huize Machine Co.,Ltd is a professional manufacturer of Electric Forklifts in China for 9 years. We specialize in Electric Pallet Truck, Electric Stacker, Electric Drum Truck, Electric Reach Truck, Electric Scissor lift, Electric Crane, and other products in forklift.
Our core advantage is our strong technology. Our technicians can scheme out corresponding drawings according to customers’ thought to meet their requirements,and also every year our technical team develops 4-6 new products in the light of market demand.
For high quality guarantee, we have imported advanced equipments . In production, from the beginning to the end, our workers operate each process carefully, and the inspectors also inspect them strictly,which makes sure the finished products are 100% qualified.
Now we have exported our products to America, Australia, Brazil, France, Germany, India ,Singapore, Saudi Arabia, over 20 countries, and we have a very good reputation among our customers
Finally, all our staff are sincere to welcome all the customers at home and abroad to our factory for a visit and negotiation.
1. Q: Where is your factory located? Hong far is your factory away from Shanghai Airport?
A: Our factory is located in Taizhou City,Jiangsu ,China, and It is 3 hours driving from Shanghai International Airport, and we can arrange a car to pick you up if you are interested to visit our factory.
2. Q: How to guarantee products quality?
A: First, we have our own QC to inspect and check the quality in each process,Second, we welcome your QC to our factory to inspect the goods, Third, we accept the third party inspection.
3. Q: What Products are Our Special Products?
A: 1) 5T/8T Electric Pallet Truck, 2) Electric Lift Platform,3)Electric Stainless Steel Proof-Explosion Pallet Truck,4) 3T Electric Stacker,5) Electric Yarn Roll Pallet Truck,6) Electric Oil Drum with automotive clamp and tilt,7) Electric Paper Roll Truck with automotive clamp and tilt,8) Electric Pallet Truck and Stacker with Scale
4. Q:What is your advantage?
A: --Quick Delivery
--Low Maintenance
--Excellent Service
--High Quality
--Lower Cost
