1t Simple Operation Battery Operated Powered Mini Electric Pallet Truck

1t Simple Operation Battery Operated Powered Mini Electric Pallet Truck thumbnail-1
1t Simple Operation Battery Operated Powered Mini Electric Pallet Truck photo-1
US$ 3,100 - 3,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HUIZE
Contact Supplier Request Quote Chat Now
Taizhou Huize Machine Limited Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name HUIZE
Model Number HZCBD10A-01
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 1t
Max. Lifting Height 200mm
Min. Lifting Height 85mm
Fork Length 1150mm
Fork Width 160mm
Overall Dimensions 2250*800*1500mm
Certification CE,ISO9001,SGS,BV
After-sales Service Provided Engineers available to service machinery overseas

           1t simple operation battery operated powered mini electric pallet truck

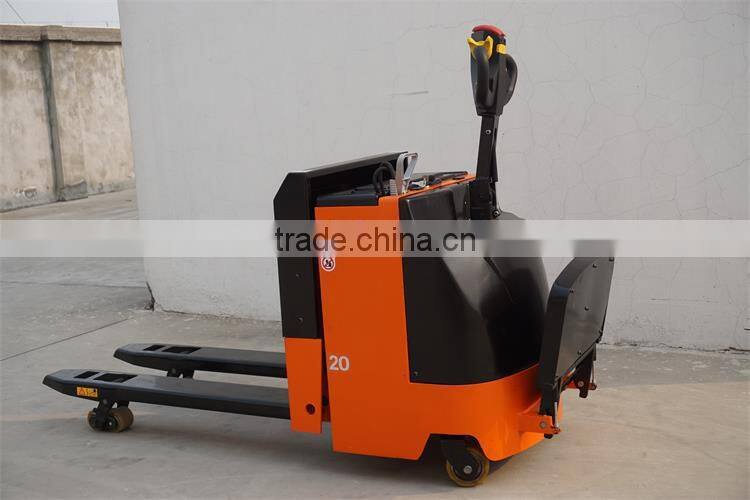

Picture show

1t simple operation battery operated powered mini electric pallet truck

Product description

posed by the import pump station, oil cylinder, import pieces of domestic driving wheel

  assembly, import electronic accelerator, battery, charger and so on

2.suitable for overload and cargo transport conditions for long, can greatly improve the efficiency of

   cargo handling, reduce labor intensity

3.variable speed, small turning radius, no noise pollution, reliable performance

Product parameters

1

Feature

1.1

Name



Full electric pallet truck

1.2

Power form



Battery

1.3

Operation Type



Standing

1.4

Load capacity

Q(Kg)

1000

1.5

Load center distance

C(mm)

600

1.6

Hydraulic cylinder



Single

1.7

Color



Red  yellow  blue  gray

1.8

Surface treatment



Paint

2

Size





2.1

Passage width,with1000×1200 pallet

Ast(mm)

1100

2.2

Passage width,with800×1200 pallet

Ast(mm)

900

2.3

Minimum channel width truck turning  around

Ast(mm)

2200

2.4

Turning radius

Wa(mm)

1900

3

Driving





3.1

Driving motor

Kw

0.75

3.2

Lifting motor

Kw

1.0

3.3

Battery voltage/capacitance

V/Ah

24/165

3.4

Battery charged repeatedly



750

3.5

Battery Weight

Kg

150

3.6

Charger



24V20A

3.7

Driving control type



AC

3.8

Driving motor



Horizontal

Climbing text

1t simple operation battery operated powered mini electric pallet truck

Product certification



Our other related products



                                           AC motor drive pallet stacker     small light duty electric lift truck





                                 heavy duty electric lift platform truck  hydraulic lift scissor electric pallet truck



FAQ



1. Q:What is the minimum order quantity?

A:1 set

2.Q:Can we use our own shipping agent ?

A:Yes, you can.(But Our factory advice you use our factory shipping agent. Because we have been cooperating with the

shipping company for 8 years,the cost is lower than customers’ pointing shipping agent. )

3.Q:what term of payment you can accept?

A:T/T30% DEPOSIT , or L/C at sight. Also you can choose EXW by cash paid USD or RMB.

Our factory will offer account number for you if you need. Also can show on the P/I.

4.Q:What are the favorable of your product?

A: Our factory will offer customers 3% free vulnerable parts.
