Help CenterFG Wilson P 7.5-4S 6.8kW 7.5kVA @ 50Hz Power Generator
Related Products
-
FGWilson P9.5-4 6.8kW 8.5kVA @ 50Hz 10kVA @ 60Hz Engine 403D-15G Electric GeneratorUS$ 3,500 - 4,500MOQ: 1 Set -
P11-6S FG Wilson 10.0kVA 10kW @ 50Hz 15kVA @ 60Hz Engine 403D-15G Generators PricesUS$ 3,500 - 4,600MOQ: 1 Set
-
P13.5-6 FG Wilson 12.5kVA 10kW @ 50Hz 15kVA @ 60Hz 403D-15G ISO9001 Generator SetUS$ 3,500 - 4,800MOQ: 1 Set
-
P14-6S FG Wilson 13kVA 404D-22G Diesel GeneratorUS$ 3,500 - 4,800MOQ: 1 Set
-
P16.5-6S FG Wilson 15kVA 17.6kVA @ 50/60Hz CE Approved 404D-22G Generator Set ElectricUS$ 4,000 - 5,400MOQ: 1 Set
Specifications
Power Generators1.Automatic transfer ,60Hz and 50Hz
2.OEM parts service
3.Two weeks Delivery
4.CE and TUV approved

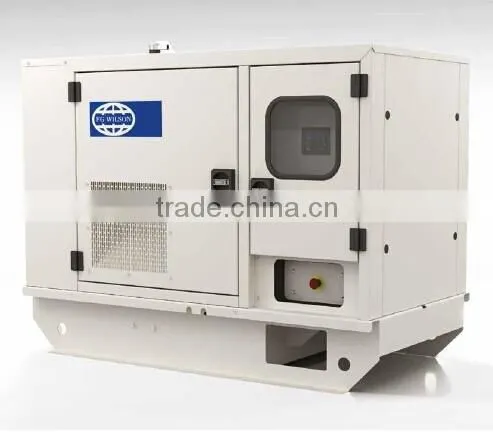

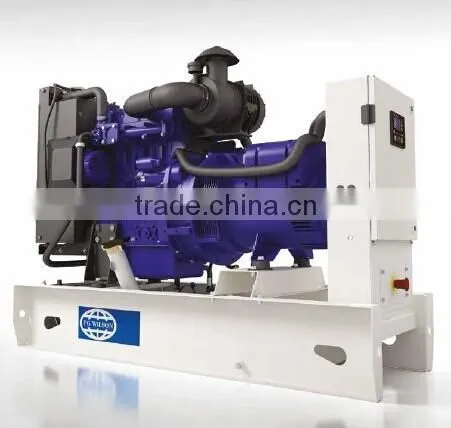

FG Wilson P 7.5-4S 6.8kW 7.5kVA @ 50Hz Power generator
| Diesel Generator Set Name | kVA @ 50 Hz | kW @ 50 Hz | kVA @ 60 Hz | kW @ 60 Hz |
| P 7.5-4S | 6.8 / 7.5 | 6.8 / 7.5 | 8.0 / 8.8 | 8.0 / 8.8 |
| P 9.5-4 | 8.5 / 9.5 | 6.8 / 7.6 | 10.0 / 11.0 | 8.0 / 8.8 |
| P11-6S | 10.0 / 11.0 | 10.0 / 11.0 | 12.0 / 12.0 | 12.0 / 13.0 |
| P13.5-6 | 12.5 / 13.5 | 10.0 / 10.8 | 15.0 / 16.5 | 12.0 / 13.2 |
| P14-6S | 13.0 / 14.0 | 13.0 / 14.0 | 15.5 / 17.0 | 15.5 / 17.0 |
| P16.5-6S | 15.0 / 16.5 | 15.0 / 16.5 | 17.6 / 19.4 | 17.6 / 19.4 |
| P18-6 | 16.5 / 18.0 | 13.2 / 14.4 | 20.0 / 22.0 | 16.0 / 17.6 |
| P22-6 | 20.0 / 22.0 | 16.0 / 17.6 | 22.5 / 25.0 | 18.0 / 20.0 |
Genset Model |
SMLP7.5-4S |
||
Prime |
Standby |
||
Genset Power (kW/KVA) |
7/9 |
7.7/9.9 |
|
Engine Model |
403D-11G |
||
Engine Power (kW) |
11 |
12 |
|
Engine Make |
FG Wilson |
||
Engine Cooling Method |
Wind Cool |
||
Speed Governing System |
Mechanical Governor |
||
Starting Method |
12 V Electric Start |
||
Engine Filter System |
Dry-type air cleaner, fuel filter, oil filter |
||
Fuel System |
Direct Injection |
||
Engine Displacement (L) |
1.13 |
||
Cylinder Bore×Stroke(mm) |
77×81 |
||
Fuel Consumption 100% Load (L/h) |
2.4 |
2.6 |
|
Oil Load(L/h) |
0.02 |
||
Air-flow(m3/min) |
70 |
||
Gas Consumption(m3/min) |
0.7 |
||
Exhaust Smoke Level (m3/min |
1.66 |
||
Exhaust Temperature () |
400 |
||
Oil Capacity (L |
4.4 |
||
Coolant Capacity (L |
6.2 |
||
Generator Make |
Stamford or Leroy somer |
||
Generator Excitation Type |
Brushless Self-exciting |
||
Short Circuit Protection |
MCCB Airbreak Switch |
||
Rated Voltage/frequency/Power Factor |
50Hz, 0.8 delay,3-phase, 4-wire |
||
Steady Frequency Change |
Better than 3% |
||
No Load Voltage Adjusting Range |
≥95%105% |
||
Steady Voltage Adjusting Rate |
Better than ±1% |
||
Insulation Degree/ Protection Levels |
H Degree/IP22 |
||
Tel. Influence coefficient/Harmonic Wave Factor |
THF2% |
||
Accessories |
Starting battery, connecting lines, fume exhaust curved pipe, flange, muffler, chassis shock absorber |
||
Dimensions(mm) |
1330×560×1270 |
||
Genset Weight (kg) |
403 |
||
Genset Noise dB(A) |
98 |
||
Other Brand Portable Generator
SML Twin Cylinder 10kw Power Solution
Diesel
SMLDG10LS 10kw Silent 3000/3600rpm Portable
SMLDG10L 10kw Open 3000/3600rpm Portable
SMLW10S 10kw Silent 1500/1800rpm Heavy Duty
SMLW10 10kw Open 1500/1800rpm Heavy Duty
Gasoline
SMLSG10S 10kw Silent 3000/3600rpm Portable
SMLSG10L 10kw Open 3000/3600rpm Portable
Picture for SMLDG10L portable
Diesel SMLW10 series --Weichai,Yangdong,Isuzu,FG Wilson
Diesel Generator Outputs from 5kva to 3000kva, 50hz and 60hz.
1. We provide one year warranty for all of our products count from the datd of B/L. If the machine break during he warranty period due to quality or assembling problem, we provide free spare parts to our customer for reparing. After expiration, we provide cost spare parts service.
2. We provide free technical consultant if you have any question about the usage of our products.
3. We can make OEM as per request of our customer, such as customer brand, label, package, special model design, color, etc.
1. Q: What's the MOQ for this model ?
A: The MOQ for this products is 20 units. But for sample order, we also accept 1-2 units.
2. Q: What's the delivery time ?
A: For sample order, the delivery time usually within 1-2 weeks, for container order, usually cost 1 month. Please check with sales for exact information.
3. Q: How about the production capacity ?
A: FYI, the current production capacity for our gasoline engine products is 1,000units/month.
We will reply within 1-12 hours. Thank you for your time!
