Home > Products > UK EPA and Japan Generator > FGWilson P9.5-4 6.8kW 8.5kVA @ 50Hz 10kVA @ 60Hz Engine 403D-15G electric generator

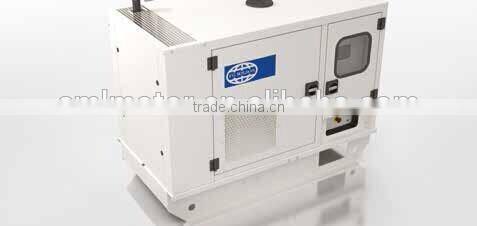

FGWilson P9.5-4 6.8kW 8.5kVA @ 50Hz 10kVA @ 60Hz Engine 403D-15G electric generator

FOB Price

USD $3,500 - $4,500 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Fuzhou Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	Saint Meilan or OEM, Saint Meilan
Model Number	SMLP P 9.5-4, P 9.5-4	Output Type	AC Three Phase
Speed	1500/1800RPM	Frequency	50Hz/60HZ
Rated Power	5kva--1000kva	Rated Voltage	220V/380V, 230V/400V, 240V/415V
Rated Current	5-200A

Product Description

Specifications

Power Generators
1.Automatic transfer ,60Hz and 50Hz
2.OEM parts service
3.Two weeks Delivery
4.CE and TUV approved

FGWilson P9.5-4 6.8kW 8.5kVA @ 50Hz 10kVA @ 60Hz electric generator

Diesel Generator Set Name	kVA @ 50 Hz	kW @ 50 Hz	kVA @ 60 Hz	kW @ 60 Hz
P 7.5-4S	6.8 / 7.5	6.8 / 7.5	8.0 / 8.8	8.0 / 8.8
P 9.5-4	8.5 / 9.5	6.8 / 7.6	10.0 / 11.0	8.0 / 8.8
P11-6S	10.0 / 11.0	10.0 / 11.0	12.0 / 12.0	12.0 / 13.0
P13.5-6	12.5 / 13.5	10.0 / 10.8	15.0 / 16.5	12.0 / 13.2
P14-6S	13.0 / 14.0	13.0 / 14.0	15.5 / 17.0	15.5 / 17.0
P16.5-6S	15.0 / 16.5	15.0 / 16.5	17.6 / 19.4	17.6 / 19.4
P18-6	16.5 / 18.0	13.2 / 14.4	20.0 / 22.0	16.0 / 17.6
P22-6	20.0 / 22.0	16.0 / 17.6	22.5 / 25.0	18.0 / 20.0

Technical Data
GROUP	Manufacturer				Saint Meilan
	Model				PS15
	Frequency				50HZ
	Power	Standby Power			13KW 15KVA
		Prime Power			10KW 13KVA
	Open type		Dimension(LWH)	mm	1390×500×1190
			Weight	Kg	390
DIESEL ENGINE	Engine Manufacturer				FG Wison
	Model				403D-15G
	Cylinder Arrangement				3 in line
	Cycle				4 stroke
	Aspiration				Natural Aspiration
	Bore×Stroke (mm×mm)				84 x 90
	Displacement(Liter)				1.496
	Compression Ratio				22.5:1
	Prime Power/Speed (kW/rpm)				12.0/1500
	Standby Power/Speed (kW/rpm)				13.3/1500
	Speed Governor				Mechanical
	Cooling System				Water-cooled
	Total lubrication system capacity (L)				6.0
	Coolant capacity (inc. radiator) (L)				6.0
	Fuel Consumption at 100% Load (g/kWh)				264 (at 1500RPM)
Alternator	Manufacturer				Stamford
	Model				PI044F
	Rated Voltage				230/400V
	Voltage regulation mode				Auto
	Exciter Type				Brushless self exciting
	Power factor				0.8
	Capacity (Kva)				13.5
	Insulation class				H
	Protection class				IP23

Other Brand Portable Generator

SML Twin Cylinder 10kw Power Solution

Diesel

SMLDG10LS 10kw Silent 3000/3600rpm Portable

SMLDG10L 10kw Open 3000/3600rpm Portable

SMLW10S 10kw Silent 1500/1800rpm Heavy Duty

SMLW10 10kw Open 1500/1800rpm Heavy Duty

Gasoline

SMLSG10S 10kw Silent 3000/3600rpm Portable

SMLSG10L 10kw Open 3000/3600rpm Portable

Picture for SMLDG10L portable

Diesel SMLW10 series --Weichai,Yangdong,Isuzu,FG Wilson

Diesel Generator Outputs from 5kva to 3000kva, 50hz and 60hz.

Our Services

1. We provide one year warranty for all of our products count from the datd of B/L. If the machine break during he warranty period due to quality or assembling problem, we provide free spare parts to our customer for reparing. After expiration, we provide cost spare parts service.

2. We provide free technical consultant if you have any question about the usage of our products.

3. We can make OEM as per request of our customer, such as customer brand, label, package, special model design, color, etc.

FAQ

1. Q: What's the MOQ for this model ?

A: The MOQ for this products is 20 units. But for sample order, we also accept 1-2 units.

2. Q: What's the delivery time ?

A: For sample order, the delivery time usually within 1-2 weeks, for container order, usually cost 1 month. Please check with sales for exact information.

3. Q: How about the production capacity ?

A: FYI, the current production capacity for our gasoline engine products is 1,000units/month.
