Specifications
1.Digital2.warranty
3.CE,ISO,SONCAP
4.Easy operating

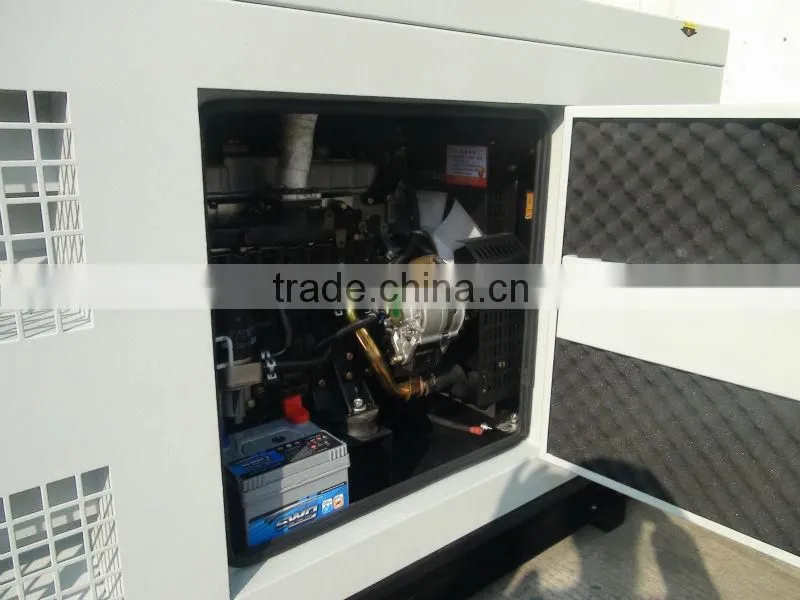

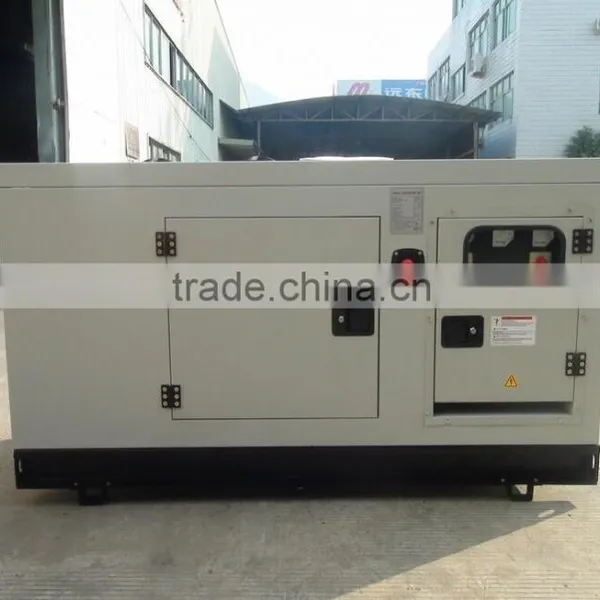

380 volt 10 kw and 20kva Genset Isuzu Generator Prices
10kw to 1300kw powered by :
| Rated speed / frequency | 1500RPM/50Hz 1800RPM / 60Hz |
| Continuous output(KW/KVA) | 20/23 |
| Standby output(KW/KVA) | 24/30 |
| Voltage, Phase and wire | 400V/230V, 3 Phase and 4 Wires |
| Rated power factor | 0.8(lagging) |
| Dimension(L*W*H) (mm) | 2150*900*1050 |
| Weight(kg) | 1370 |
| Rating Definitions (Operation at Altitude ≤1000m, Ambient temperature ≤ 40°C) | |
| These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. | |
| Diesel Engine | |
| DIESEL ENGINE MODEL | 4JB1 |
| Engine Characters | Water-cooled, 4 cylinders in line, 4-cycle, direct injection |
| The engine output(KW) | 24 |
| Aspiration | Turbocharge |
| Bore(mm)×Stroke (mm) | 102X120 |
| Compression ration | 17.5:1 |
| Fuel consumption(L/H) | 17.2(100% load) |
| Displacement(Liters) | 5.9 |
| Exhaust air flow(m3/min) | 96 |
| Compress air flow(m3/min) | 5.1 |
| Exhaust gas flow(m3/min) | 14 |
| Exhaust highest temperature | 510 |
| Lub-oil pan capacity(L) | 16.4 |
| Cooling water capacity(L) | 22 |
| Voltage for start(V) | 24 |
| Instrument for adjusting speed | Electronically |
| Noise level(A) | |
| ALTERNATOR | |
| ALTERNATOR MODEL | SLG184F |
| Excitation | Brushless |
| Insulation class | H |
| Protection class | IP22 |
| Efficiency | 90.20% |
| Voltage adjust range | ±1% with 4% engine governing |
| Steady state voltage regulation | ≤±1% |
| Voltage Control | AVR |
Accessories:
1)Standard accessories: Standard 40 radiator mounted on skid. Common steel frame, circuit nreaker, damper, exhaust silencer, flexible pipe,battery and connecting wire, Standard tool skit, operation manual and document
2) Optional accessories: Engine collant and oil heater, alternator space heater, cooling for heating exchange, communictaion interface, battery charger by main supply, daily fuel tank, ATS and paralleling system,soundproof canopy and moving trialer
Warranty policy:
Guarantee for one year or 1500 hours (accord to whichever reach first)from ex-factory date.During the guarantee period,our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material,except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation.After expiration,our company provides cost spare parts maintenance for gen-set.
Japan Isuzu

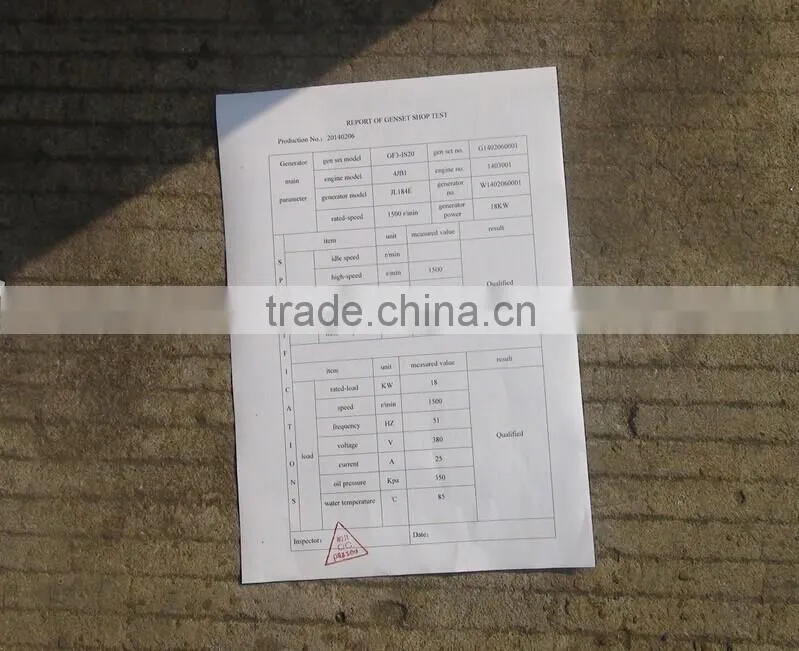

Test report of our generator
Voltage as your requirement 110V-480V
Diesel generator from 3kw to 2000kw
Very Quiet Low Noise 65db standard
SML Group wait for you
