25KVA EPA Yangdong Generator Set

Specifications

EPA Generator set
1.Automatic transfer ,60Hz and 50Hz
2.OEM parts service
3.Two weeks Delivery
4.CE and TUV approved

EPA /CE/ ISO Certification  Generator Set Yangdong/Laidong



Our Laidong and Changchai generator sets also have EPA certification







Genset Model	SML-Y20
Rated  Output(KW)	20
Rated  Output(KVA)	25
Rated  Voltage(V)	220/380V,230/400V,etc.
Frequency(HZ)	50 or 60HZ
Engine Brand	Yangdong
Engine Model	Y4100G
Rated ouput  (kw)	27
Governing  method	Mechanical
Bore x Stroke(mm)	100*115
Intaking  method	Nature
Oil  volume(L)	9
Fuel  Consumption(g/kw.h)	≤230
Fuel  Consumption(L/H)	5.34
Oil  Consumption(L/H)	1.08
Exhaust Flow(L/S)	67.5
Exhaust Temperature(°C)	380
Water volume(L)	20
Cooling System	Closed  water  cooled
Starting Method	D.C12V Electric starting

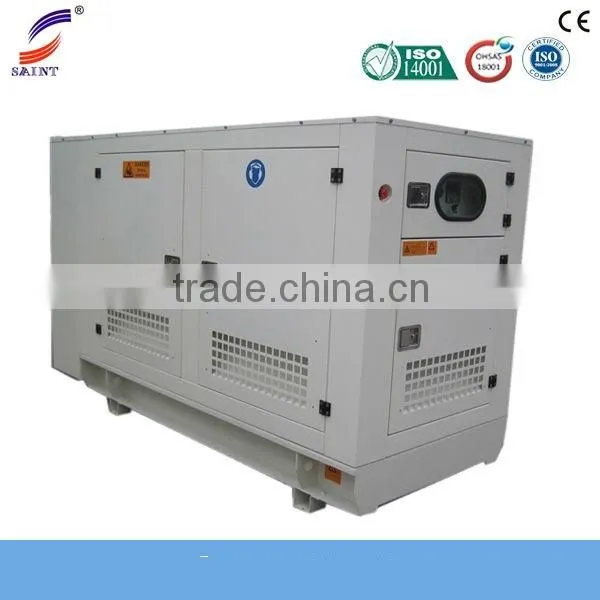

60Hz Silent Type with Silencer inside

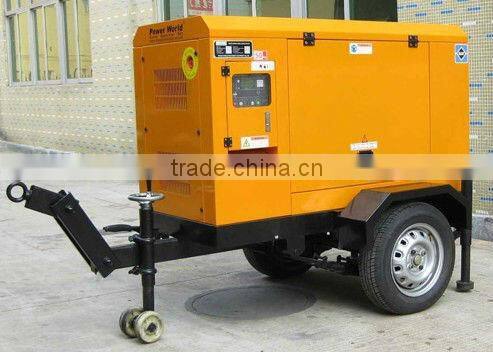

Mobile Trailer Units (Optional)

Mobile generating sets are available throughout the full kva rating of the Saint Meilan range. Trailers (2 to 6 wheel) meet all relevant road traffic regulations and are generally used in conjunction with with weatherproof canopies or sound shields.

We offer several different trailer options, namely basic braked and none braked site trailers which are only suitable for off highway use due to the lack of lights etc., then there are full EC and none EC trailers which are suitable for on highway use depending on which Country the unit will be used in.





Warranty:



12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; after the warranty period, we can supply the required spare parts for you under cost prices.
