Generator diesel 6500W
SAINT MEILAN CHINA GOOD FACTORY
---- THE BEST CHOICE FOR YOU !!!
Diesel Generator Features:
1. Power by 4-stroke air-cooled direct injection diesel engine
2. Rated output at 4.5kW, Max. Output at 5.0kW.
3. Large fuel tank ensures hours of continuous running.
4. Brushless alternator for easy maintenance.
5. 12-volt DC output as standard configuration for battery charging and low voltage appliance.
6. Standard configuration of voltmeter enables convenient use.
7. Hydrautic-Mafnetic Circuit Breakers for overload protection and convenience

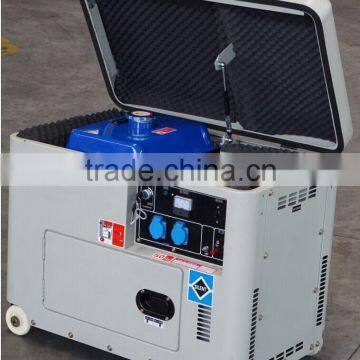

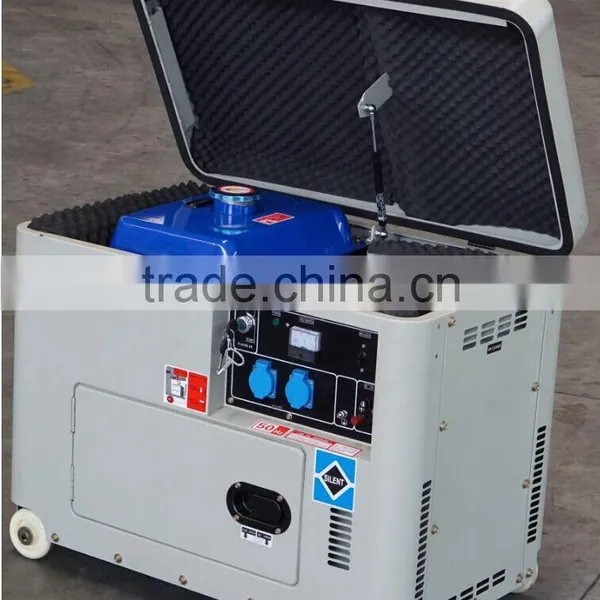

8. Sound-absorbing panels keep lower noise.
9. Wheels for easy move.
10. Full frame protection which looks more luxurious for easy
Warranty policy
Guarantee for one year or 1200 hours whichever reach first from ex-factory date ,During the guarantee period ,Saint will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material,After expiration ,"Saint "provides cose spare pars maintenance of gensets.
Manufacturing standards
ISO9001 2008 ,CE ,GB/T2820,GB755 ,SONCAP ,AND SO ON.
Specification:
| Air-cooled Diesel Generator Sets (Single Phase) | ||||||
| Model | SML3GF-LN | SML5GF-LN | SML6GF-LN | |||
| Rated frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated voltage(v) | 110,120,220,230,240,220/110,240/120 | |||||
| rated output power(kw) | 2.8 | 3.3 | 4.2 | 5 | 5 | 5.5 |
| Max output power(kw) | 3 | 3.6 | 5 | 5.5 | 5.5 | 6 |
| Dc output | 12V-8.3A | |||||
| Power factor cos1 | 1 | |||||
| Phase number | Single-phase | |||||
| Fuel tank capacity (l) | 16 | |||||
| Continuour running time (hr)(at rated power) | 12.5 | 11.5 | 8.5 | 7.5 | 8.5 | 7.5 |
| Noise level{db(A)/7m}(zero load-full load) | 70-74 | |||||
| Overall dimension{mm}(LXWXH) | 825*520*740 | 910*520*740 | 935*520*715 | |||
| Packing dimension {mm}(lXWXH) | 855*550*780 | 950*550*780 | 960*550*770 | |||
| Net weight kg | 132 | 156 | 171 | |||
| Gross weight kg | 150 | 170 | 185 | |||
| starter system | electric starter | |||||
| Engine model | 178FGE | 186FGE | 186FAGE | |||
| Engine type | Single cylinder,4-stroke,air-cooled,vertical,diesel engine | |||||
| Bore*stroke(mm) | 78*62 | 86*70 | 86*72 | |||
| Displancement (cc) | 296 | 406 | 418 | |||
| Rated rotation speed (rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
Warranty:
Guarantee for one year or 1200 running hours (accord to whichever reach first) from installed date. During the guarantee period, our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets.
Delivery:
25-30days upon received your down payment.
Looking forward to your early enquiry!!!
keywords: diesel generator, small generator, 5kw diesel generator, 5kw generator, generators, diesel generators, power generator, diesel generator set
