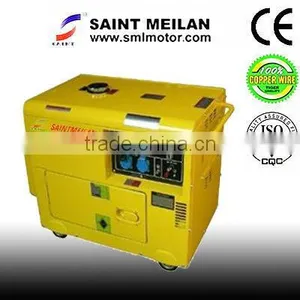

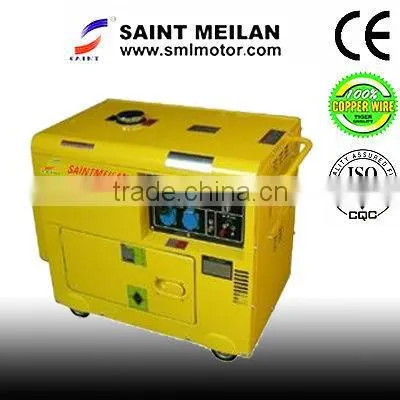

5kw Silent Generator

Name: 5kw Silent Generator
Brand: SAINT
SKU: 129248293
Availability: InStock

US$ 510 - 700 MOQ: 2 Sets

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

SAINT

Model Number:

GF3-5kw

Fujian Saint Meilan Motor Wiring Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name SAINT

Model Number GF3-5kw

Output Type AC Single Phase

Speed 3000rpm

Frequency 50hz/60hz

Rated Power 5kw

Rated Voltage 230V

Rated Current 15.7A

Specifications

Silent generator
air-cooled engine,brushless alterator with capacitor
pure copper wire,standard meters
Low noise,low oil
CE

5kw Silent generator

1. Rated power: 3kw , 5kw , 6kw

2. 178, 186 engine, air cooled , single phase

3. brushless alterantor or brush alterantor for your option

We Professional in produce:

diesel generator / gasoline generator / diesel engine / welder

Alternators / pumps / high pressure washer

Air-cooled Diesel Generator Sets (Single Phase)
Model	SML3GF-LN		SML5GF-LN		SML6GF-LN
Rated frequency(Hz)	50	60	50	60	50	60
Rated voltage(v)	110,120,220,230,240,220/110,240/120
rated output power(kw)	2.8	3.3	4.2	5	5	5.5
Max output power(kw)	3	3.6	5	5.5	5.5	6
Dc output	12V-8.3A
Power factor cos1	1
Phase number	Single-phase
Fuel tank capacity (l)	16
Continuour running time (hr)(at rated power)	12.5	11.5	8.5	7.5	8.5	7.5
Noise level{db(A)/7m}(zero load-full load)	70-74
Overall dimension{mm}(LXWXH)	825520740		910520740		935520715
Packing dimension {mm}(lXWXH)	855550780		950550780		960550770
Net weight kg	132		156		171
Gross weight kg	150		170		185
starter system	electric starter
Engine model	178FGE		186FGE		186FAGE
Engine type	Single cylinder,4-stroke,air-cooled,vertical,diesel engine
Bore*stroke(mm)	78*62		86*70		86*72
Displancement (cc)	296		406		418
Rated rotation speed (rpm)	3000	3600	3000	3600	3000	3600
