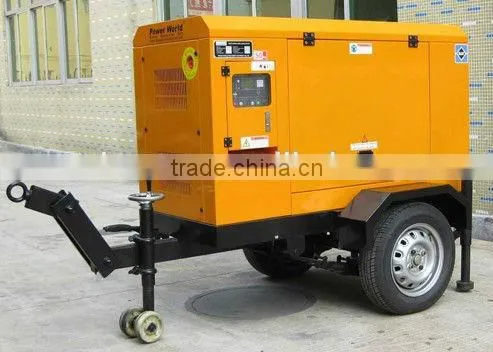

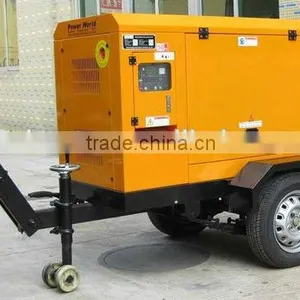

Sound Proof Generator Electrical Equipment & Supplies
US$ 2,000 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Yui Tat
Model Number:
GF3
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC Three Phase Output Type Generator Price DubaiUS$ 3,300 - 50,000MOQ: 1 Set -
Three Phase Output Type 15kva Super Silent Power Diesel GeneratorUS$ 3,300 - 50,000MOQ: 1 Set
-
DG8500 6.5KVA Portable Silent Diesel GeneratorUS$ 500 - 600MOQ: 1 Set
-
5KW Portable Silent Diesel GeneratorUS$ 550 - 900MOQ: 1 Set
-
Low Noise Air Cooled Portable Diesel GeneratorUS$ 550 - 900MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Yui Tat
Model Number
GF3
Output Type
AC Three Phase
Speed
1500/1800RPM
Frequency
50/60HZ
Rated Power
20-500KW
Rated Voltage
110/220, 220/380, 230/400, etc
Rated Current
Depend on the voltage
Specifications

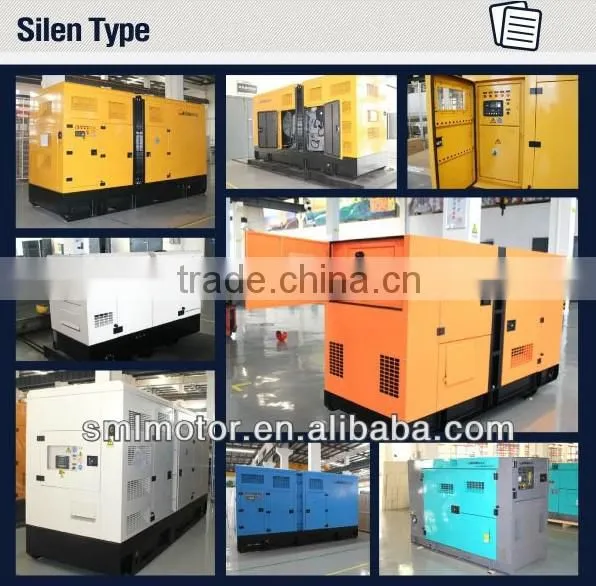

sound proof generator electrical equipment & suppliesSilent: 65Db@7M
High capacity
Easy maintenance
Most cost-effective
Sound proof generator electrical equipment & supplies
Product Description
| ISUZU Series Generator | |||||
| YUI TAT-ISUZU Series Generator Set, Selects the isuzu engine from Forward Engine(beijing)Machinery Equipment Co.,Ltd in china.,base on isuzu engine,developed by FOTON Company through the cooperation with AVL company from Austriia. | |||||
| It has the following feature: | |||||
| 1. Reliability: crankshaft is forged by alloy steel,which can make the use-life 3 time than common cast-iron crankshaft | |||||
| 2.Economical:Cylinder-bore diameter is 93 mm,and the displacement is small.fuel consumption can reach 213g/kw.h | |||||
| 3.Environmental: Crankshaft pulleys uncounterbalance would less than 30g.cm,and assured the compression ratio of the engine invariably and work stably | |||||
| 4.Low Noise : ≤92dB(A) at 1 meter away from the engine. | |||||
| Technical Parameter | Unit | YTI-20 | YTI-25 | ||
| Frequency | Hz | 50 | 60 | 50 | 60 |
| Speed | rpm | 1500 | 1800 | 1500 | 1800 |
| Max Power | KVA | 27.5 | 32.5 | 34.4 | 41.3 |
| KW | 22 | 26 | 27.5 | 33 | |
| Rated Power | KVA | 25 | 30 | 31.3 | 38 |
| KW | 20 | 24 | 25 | 30 | |
| Rated Voltage | V | 400/230 | 400/230 | ||
| Rated Current | A | 36 | 43 | 45 | 54 |
| Power Factor | cosØ | 0.8 | 0.8 | ||
| Noise Emission(7m distance) | DBA | 72 | 72 | ||
| Fuel Consumption | g/KW.H | ≤230 | ≤230 | ||
| Fuel Tank Capacity | L | 23 | 23 | ||
| Continue Work | hr | 4 | 2.8 | 3.2 | 2.5 |
| Speed Regulation Mode | TYPE | mechanism | mechanism | ||
| Excitation Mode | TYPE | Brushless alternator + AVR | Brushless alternator + AVR | ||
| Insulation Class | TYPE | H | H | ||

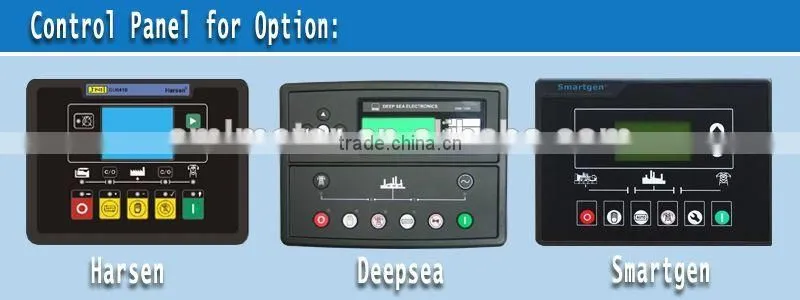

| Generator Controller | TYPE | Auto Multi-function | Auto Multi-function | ||
| Engine Model | TYPE | 4JB1 | 4JB1T | ||
| Engine Technology | TYPE | Isuzu | Isuzu | ||
| No. of Cylinder | 4 Cylinder | 4 Cylinder | |||
| Displacement Total | L | 2.771 | 2.771 | ||
| Bore×Stroke | mm | 93×102 | 93×102 | ||
| Dimensions(L×W×H) | mm | 2200*900*1100 | 2200*900*1100 | ||
| Net Weight | kg | 786 | 836 | ||
| Note: 1.The above parameter is per 50HZ, 1500rpm, 400/230V, PF=0.8, 3 phase 4 line standard.If 60HZ and other special gensets required, please contact our for more information.Alternator option with Stamford, Marathon, Lorysomer,TFW, Engga. | |||||
| 2. In line with our policy of continuous product development, we reseve the right to change specification without notice. | |||||
FAQ
1.Q: What is your MOQ of this item?
A: 1-10PCS
2.Q: What is the lead time?
A: 25-30 days after receiving your L/C or TT deposit.
3.Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A: Fuzhou, China Port.
5.Q: What are your payment terms?
A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
6.Q: What is your company's available production capacity?
A: 3000-5000 pieces against your orders.
