Help CenterDG8500 6.5KVA Portable Silent Diesel Generator
Related Products
-
5KW Portable Silent Diesel GeneratorUS$ 550 - 900MOQ: 1 Set -
Low Noise Air Cooled Portable Diesel GeneratorUS$ 550 - 900MOQ: 1 Set
-
10KW Air-cooled Diesel Generator Set SML12000US$ 1,000 - 2,000MOQ: 1 Set
-
10KW Two Cylinder Air-cooled Single Phase Diesel Generator SetUS$ 1,000 - 2,000MOQ: 1 Set
-
10KW Two Cylinder Water-cooled Three Phase Diesel Generator SetUS$ 1,000 - 2,000MOQ: 1 Set
Specifications
6.5KVA Diesel Generator1.portable
pper wire,circuit breaker,AVR
3.electric start
4 silent

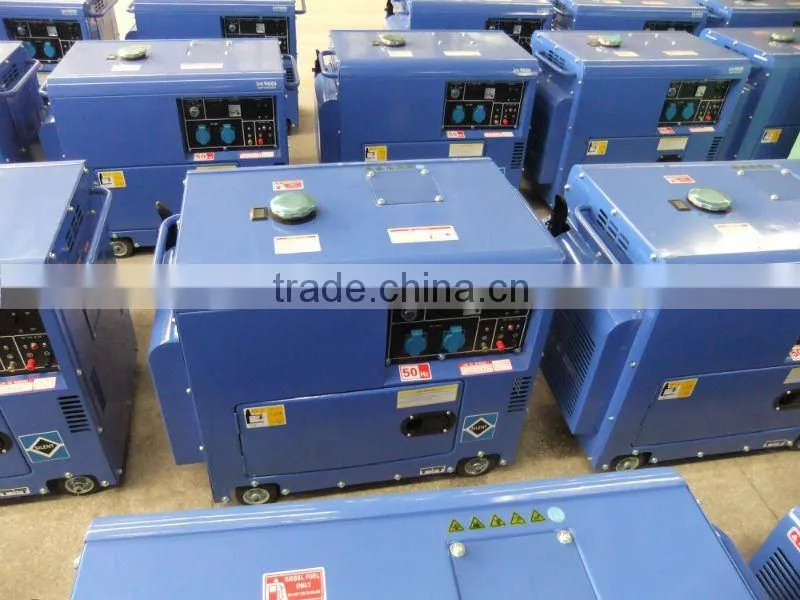

DG8500 6KVA/ 6.5KVA Portable Silent Diesel Generator
Air cooled open /silent type portable diesel generator DG8500
1. Rated power: 3kw , 5kw , 6kw
2. 186FA engine, air cooled , single phase
3. brushless alterantor or brush alterantor for your option
4. with digital meter,ats,AVR, Circuit breaker ,soundproof box
5. generator available voltage 120, 220, 230, 240V
DG6500SE Silent Diesel Generator Specification:
GENERATOR |
Model |
DG8500 |
|
|
Frequency(HZ) |
50 |
60 |
|
Max. output(kw) |
6.5 |
7 |
|
Rated output(kw) |
6 |
6.5 |
|
Rated. AC voltage(v) |
120, 220, 230, 240 |
|
|
Power factor(cosΦ ) |
cosΦ =1 |
|
|
DC output (v) |
12V/8.3A |
|
|
Phase |
Single phase |
|
|
Alternator type |
self-excited, 2-pole, single phase alternator |
|
|
Starting system |
Electric |
|
|
Operating noise level(at 7m) |
68~72 |
|
|
Fuel tank capacity(L) |
16 |
|
|
Continues work(hr) |
8.5 |
7.8 |
ENGINE |
Model |
186FA |
|
|
Engine type |
Single-cylinder, vertical, 4-stroke air-cooled diesel engine |
|
|
Bore× stroke(mm) |
92× 75 |
|
|
Fuel |
0# or -10# light diesel fuel |
|
|
Lubrication oil volume(L) |
1.65 |
|
|
Combustion system |
Direct lnjection |
|
STANDARD FEATURES |
Voltmeter |
yes |
|
|
AC Output Socket |
2 |
|
|
AC circuit breaker |
yes |
|
|
Oil warning light |
yes |
|
|
Oil alert |
yes |
|
DIMENSIONS |
Dimension(L× W× H)(mm) |
950× 560× 710 |
|
|
Net weight(kg) |
155 |
|
|
20FT |
72 |
|
|
Air-cooled Diesel Generator Sets (Single Phase /Three Phase) | ||||||
| Model | SML3GF-LN | SML5GF-LN | SML6GF-LN | |||
| Rated frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated voltage(v) | 110,120,220,230,240,220/110,240/120 | |||||
| rated output power(kw) | 2.8 | 3.3 | 4.2 | 5 | 5 | 5.5 |
| Max output power(kw) | 3 | 3.6 | 5 | 5.5 | 5.5 | 6 |
| Dc output | 12V-8.3A | |||||
| Power factor cos1 | 1 | |||||
| Phase number | Single-phase | |||||
| Fuel tank capacity (l) | 16 | |||||
| Continuour running time (hr)(at rated power) | 12.5 | 11.5 | 8.5 | 7.5 | 8.5 | 7.5 |
| Noise level{db(A)/7m}(zero load-full load) | 70-74 | |||||
| Overall dimension{mm}(LXWXH) | 825*520*740 | 910*520*740 | 935*520*715 | |||
| Packing dimension {mm}(lXWXH) | 855*550*780 | 950*550*780 | 960*550*770 | |||
| Net weight kg | 132 | 156 | 171 | |||
| Gross weight kg | 150 | 170 | 185 | |||
| starter system | electric starter | |||||
| Engine model | 178FGE | 186FGE | 186FAGE | |||
| Engine type | Single cylinder,4-stroke,air-cooled,vertical,diesel engine | |||||
| Bore*stroke(mm) | 78*62 | 86*70 | 86*72 | |||
| Displancement (cc) | 296 | 406 | 418 | |||
| Rated rotation speed (rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
Diesel Generator 5kva Shining Points:
- The lightest and smallest among the gensets with same outpout
- Full automatic generator protection system
- Special dual protection system
- Unique unloading system for stopping the generator
- Steady frequency-governing ratio ≤ 3%, complying with military standard
- Automatic Voltage Regulation for maintaining steady voltage
- Automatic transfer switching,remote monitoring, to realize guardless by human
- Low noise,only 70dB/7m
- New patent design,low inner housing temperature,stable output and good reliability
Diesel Generator Features:
1. Comparing other generators with same output, it is of compact structure (1100*660*740mm), light weight (248kg)and reliable performance.
2. Adopting the technique of new patented design structure
Our company has adopted the technique of new-patented design structure to separate fully cold & heat wind passages in inner housing. It makes the generator output be no power drop for long-period operation.
The wind passage with special labyrinth design makes the generator be of lower noise.
3. Application of intelligent control panel
Our company has adopted new-type intelligent control panel, which facilitate the operation. The operator can know the real working condition of the generator from panel reading. There are more than ten protections of the generator in the panel, such as protections of frequency, voltage, current, low oil pressure, low fuel level, and electric fan adjusting the temperature automatically when inner-housing temperature over 60, and automatic unload before engine stopped each time etc. The diesel/water separator can ensure the fuel quality.
4. Application of automatic shifting switch (ATS)
Our company can fit ATS based on customer requirement, which can make the generator be automatic operation without the operator on the spot. When city power net breaks down, ATS can deliver the signal in shortest time to the generator for starting. When city power net is recovered, ATS can shift the power from the generator to city power net and the generator will be automatically stopped later.
5. Application of new-generation intelligent AVR
Our company has adopted new-generation intelligent AVR (automatic voltage-constant) to make the output voltage be steady.
