Help CenterThree Phase Output Type 15kva Super Silent Power Diesel Generator
Related Products
-
DG8500 6.5KVA Portable Silent Diesel GeneratorUS$ 500 - 600MOQ: 1 Set -
5KW Portable Silent Diesel GeneratorUS$ 550 - 900MOQ: 1 Set
-
Low Noise Air Cooled Portable Diesel GeneratorUS$ 550 - 900MOQ: 1 Set
-
10KW Air-cooled Diesel Generator Set SML12000US$ 1,000 - 2,000MOQ: 1 Set
-
10KW Two Cylinder Air-cooled Single Phase Diesel Generator SetUS$ 1,000 - 2,000MOQ: 1 Set
Specifications
diesel generatorair cooled deutz diesel engine generator
ce,iso9001
generator ATS digital remote controller
canopy type

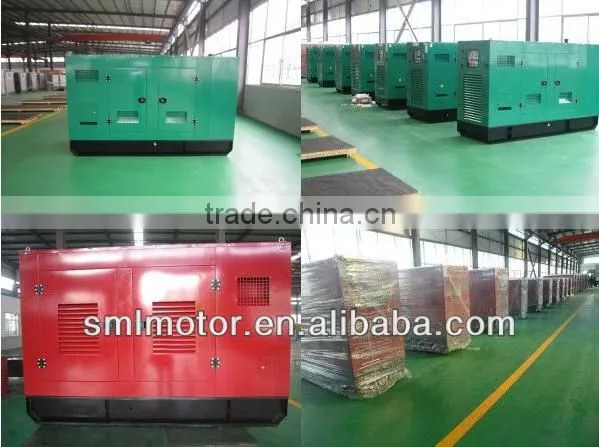

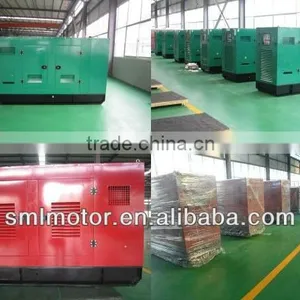

Three Phase Output Type 15kva super silent power diesel generator
water cooled weichai deutz diesel engine or air cooled genmany deutz diesel engine
- deutz air cooled diesel engine: F2L912 ,F3L912 ,F4L912 ,F6L912 ,BF6L913ADG ,BF6L913CADG
- water cooled Weichai DEUTZ Diesel Engine D226B-3D,TD226B-3D,TD226B-4D,TD226B-6D,TBD226B-6D,TBD226B-6D5,BF4M1013E,BF4M1013EC,BF6M1013E,BF4M1013FC,BF6M1015,BF8M1015C Series
- Multi-cylinder in-line or ver engine, 4-stroke, direct injection
- Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
- Machinery or electronic governing
- Fuel injection pump
- Electric motor starting system
- Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
- low discharge, and low fuel consumption
- Installed conveniently and maintain easily
Good Brushless Alternator
- AC alternator: Option : Marathon, Leroysomer,Stamford, Engga ,ST/STC
- Brushless, 4 poles, rotation magnet, H class insulation system
- IP21-23(NEMA1) enclose is standard for all industrial alternators with avr adjustment
- AVR self-regulated, voltage regulation rate:<=±1%
- Simple installation and maintenance with easy access to termial, rotating diodes and coupling bolts.
- Wide range of flange adaptors and single bearing disc coupling
- Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
- Moisture-proof, sand-proof, dustproof,salt-proof and vibration-proof
Portable Generator Optional
a) Trailer Mobile Mount
b) Soundproof canopy / water proof Silent type
c) ATS (automatic transfer switch)
d) Parallel system
e) Remote system
Generator Control Panel ( ComAp/Deepsea/Smartgen)
a) High water Temperature Shutdown
b) Low Oil Pressure Shutdown
c) Over Speed Shutdown
d) Over Crank Shutdown
e) Protection as Emergent Stop
Parameters of Operation: Digital type, all function showed by LED
68db in 7 meters super silent deutz generator specifIcations (Air /water cooled diesel portable generator)
portable generator installation diagram
Open Type portable diesel generating sets
Weichai Deutz Sound proof Silent 10KW Portable Generator
Mobile Trailer Portable Generator (Optional)
Mobile generating sets are available throughout the full kva rating of the Saint Meilan range. Trailers (2 to 6 wheel) meet all relevant road traffic regulations and are generally used in conjunction with with weatherproof canopies or sound shields.
We offer several different trailer options, namely basic braked and none braked site trailers which are only suitable for off highway use due to the lack of lights etc., then there are full EC and none EC trailers which are suitable for on highway use depending on which Country the unit will be used in.
Invitation to visit our factory
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Fuan City,FuJian Province, which is famous generator city, it is about 2 hours away from fuzhou changle air port and xiamen airport.
3. When you come to FuJian province or FU'AN City, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
