16 Heads Standard Manufacture Plastic Cup Filling Sealing Machine
- shanghai port or any chinese port
- T/T Money Gram Credit Card
You May Like
-
18 Heads Standard Manufacture Plastic Cup Filling Sealing Machine
-
24 Heads Standard Manufacture Plastic Cup Filling Sealing Machine
-
24 Heads High Capacity Plastic Cup Filling Sealing Machine
-
Automatic Drink Water Bottle Filling Machine/Mineral Water Filling Plant
-
High Speed Mineral Water 330ml PET Bottle Filling Machine
-
Automatic Drink Water Bottle Filling Machine/hot Filling Machine
Product Details
| Condition | New | Application | Beverage, Chemical, Commodity, Medical | |
| Packaging Type | Other, Cup | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V50HZ | Power | 20KW | |
| Place of Origin | Shanghai, China | Brand Name | Hongli | |
| Model Number | CFM-16 | Dimension(L*W*H) | 4500*1050*2200mm | |
| Weight | 2200KGS | Certification | ISO9000 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

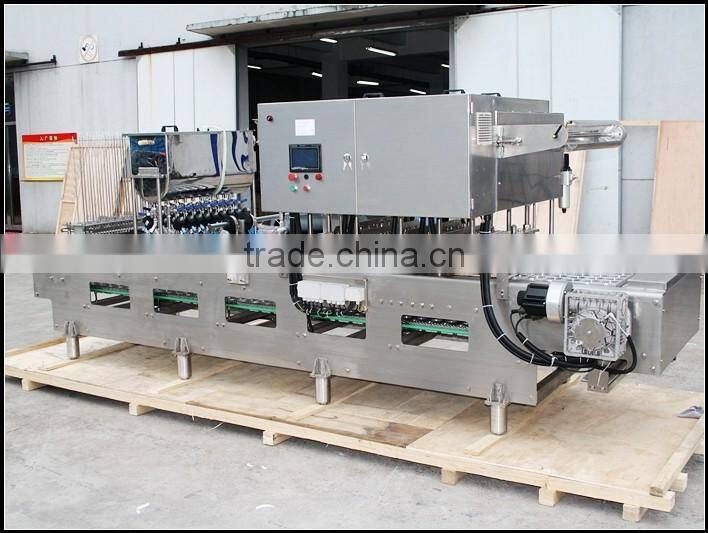

16 heads standard manufacture plastic cup filling sealing machine
Technical Specification for filling Cup 16 Lines.
1. Capacity :14400—19200 Cup /H
2. Power Electric : 30 KW 380 Volt 3phase
3. Air Consumption : 2 000 L / m 6 Bar
4. Water Consumption : 6 M³ / H
5. Dimension : 4500 x 1900 x 1900
Description of part Automatic Filling Cup
1. Frame : SUS 304 t8 mm
2. Safty Main drive : SUS 304
3.Sprocket main drive :SUS 304
4.Roller chains : SUS 304 RS 60-WA-2
5.Mould Bucket :Alloy
6.Presure Heater Support :MS Finish Galvanise
B.2 Chmber Unit
1. Base Camber : MS finish Galvanise
2. Cover Chamber : SUS 304
3. Pneumatic Support : MS finish Coating
B.3 Sealing Unit
1. Base Heater : MS Finish Galvanise
2. Bucket Heater :MS finish Galvanise
3. Heater : Casting
B.4 Trimming Unit
1. Base Trimming : Alloy
2. Cutting Trimming :MS Hardest
B.5 Filling Unit
1. Hoper Filling : SUS 304
2. Nozzle Filling :SUS 304
3. Ball Valve :SUS 316
4.Automatic Valve Filling :Angle valve

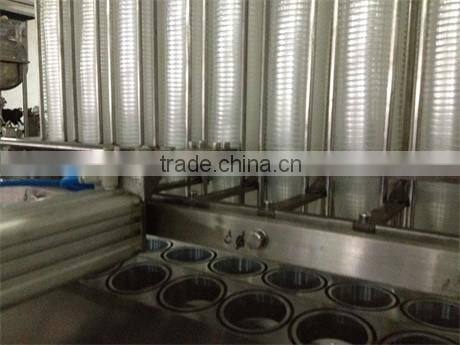

B.6 Cup Supply Unit
1. Frame : SUS 304
2.Upper Sliding : Alloy
3. Lower Sliding : SUS 304

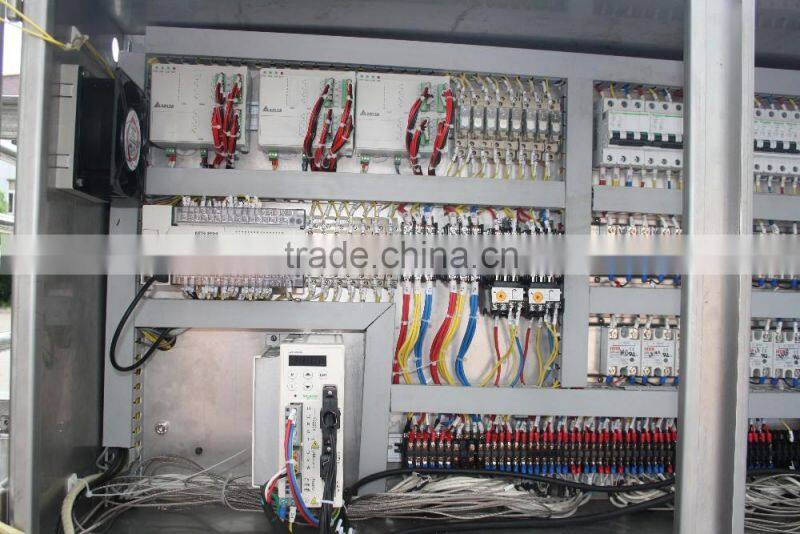

B.7 Electric Unit
1. PLC :Mitsubishi
2. Temperature Control : Delta
3. Motor Servo : Schneider
4.SSR : Fortec
B.8 Pnenmatic Unit
1. Selenoide valve : AIRTAC
2. Cylinder : AIRTAC
