Home > Industrial Equipment & Components > Heater & Heat Exchanger > Heat Exchanger > Heat Exchanger

Heat Exchanger

Name: Heat Exchanger
Brand: SHANGHAI CHANGLONG
SKU: 129244201
Availability: InStock

Shanghai Unibang International Trading Co., Ltd.

US$ 3,000 - 3,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

SHANGHAI CHANGLONG

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI PORT

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shanghai, China

Brand Name SHANGHAI CHANGLONG

Model Number BR16 BR26 BP2 BQ2......

Processing Types Juice

Voltage 220v/380v/customized

Power(W) 3-15KW

Weight Customer's Requirement

Dimension(L*W*H) 1300x750x1500

Certification ISO9001:2008 CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

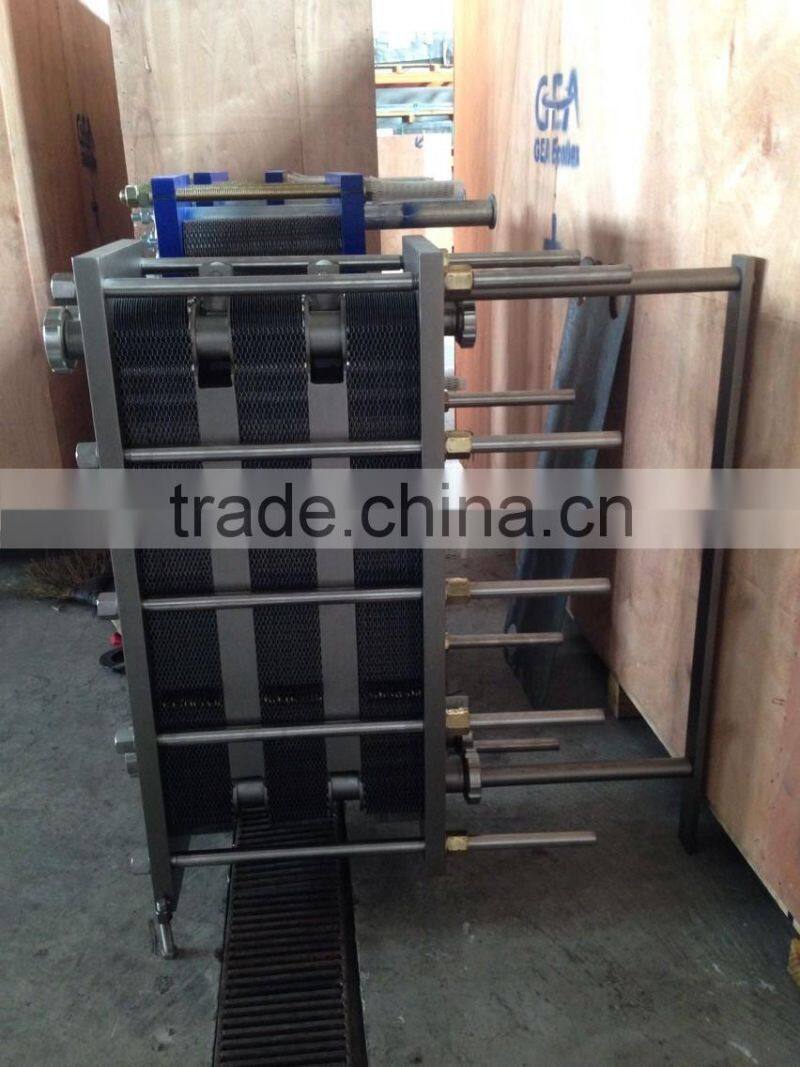

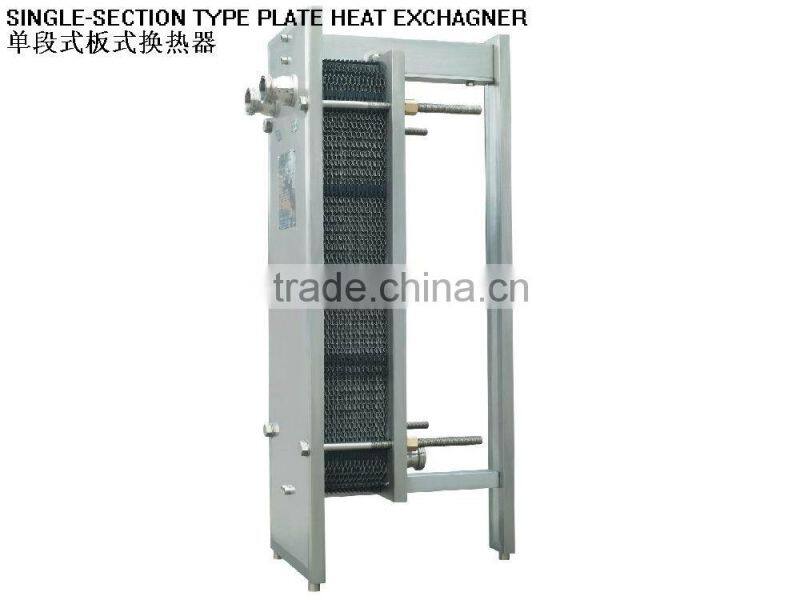

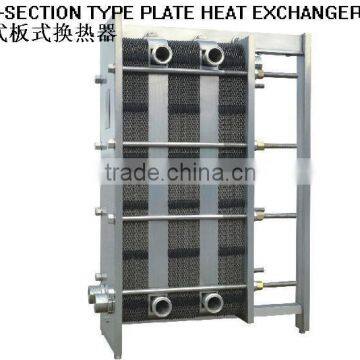

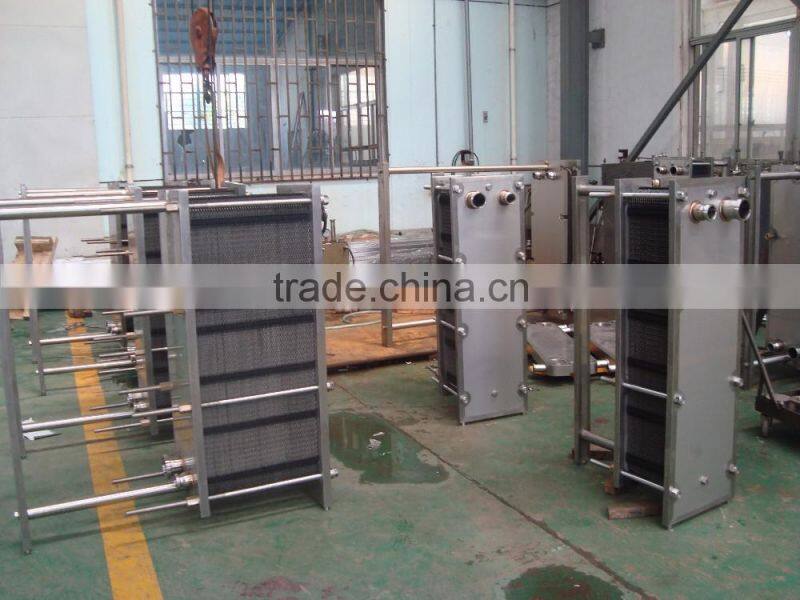

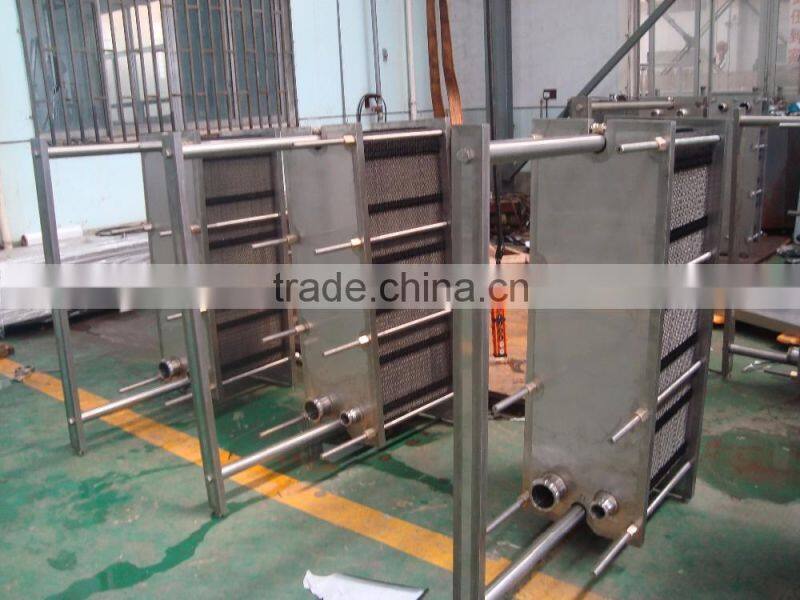

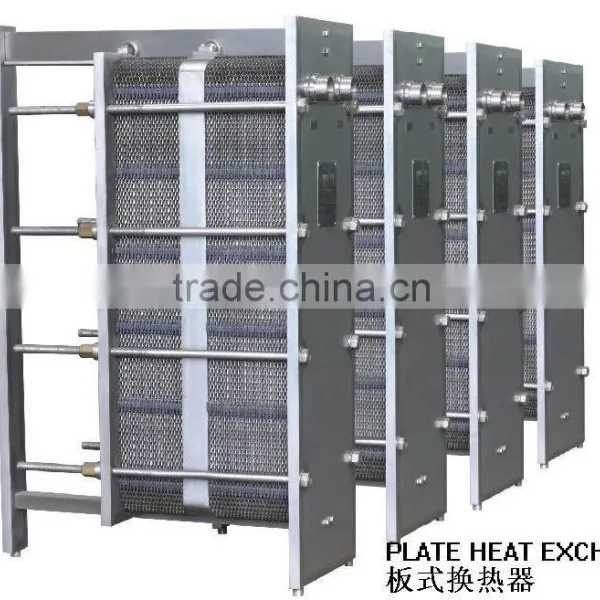

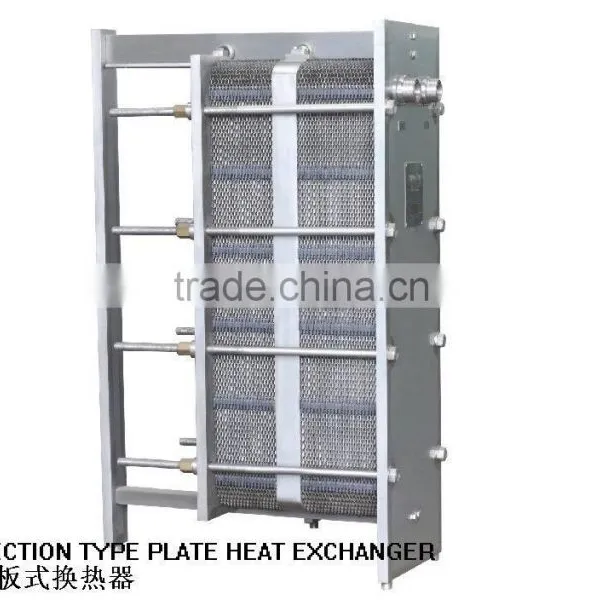

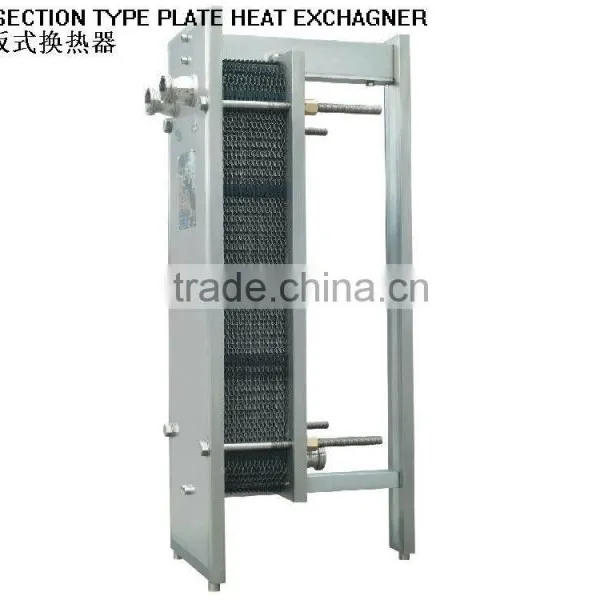

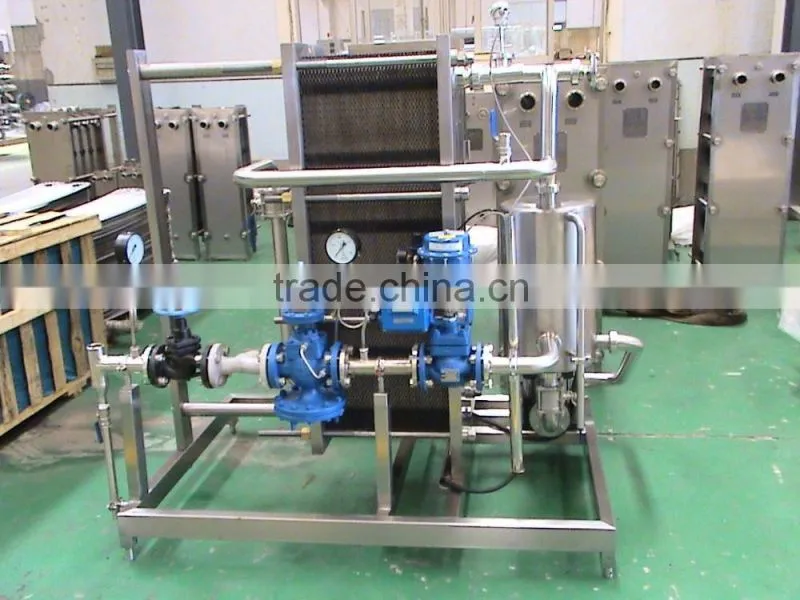

Single-section plate heat exchanger

MILK COLLECTING AND COOLING

Material : 30℃→4℃, ice water : 1℃, flow rate : 1:3

Material : 20℃→4℃, ice water : 2℃, flow rate : 1:3

Technical Parameter

Model	Flow rate	Heat exchanging are	Material diameter	Medium diameter	Outline dimensions	Weight
Model	(l/h)		(mm)	(mm)	(mm)	(kg)
BR1-J-2B	1000	2	25	25	350285810	100
BR16-J-6B	3000	6	38	38	10003501320	180
BR16-J-8B	5000	8	38	38	10003501320	250
BR26-J-10B	8000	10	51	51	11004601520	520
BR26-J-12B	10000	12	51	51	12004601520	600
BR26-J-20B	15000	20	51/63	51/63	13004601520	800
BR4-J-25B	20000	25	51/63	63	14504601520	950
BR4-J-30B	30000	30	51/63	63	14007001550	1050
BR4-J-40B	40000	40	63	76	15007001550	1150
BR4-J-50B	50000	50	63/76	76/101	16007001550	1250
BR56-J-80B	80000	80	63/76	101	17008101600	1350
BR56-J-100B	100000	100	76	101	18008101600	1550

Company Information

Established in 1996,Shanghai Changlong Lndustrial Equipment Co.,Ltd. is an enterprise specialized in designing and researching various series of plate type(tubular) heatexchangers,plate type (tubular) whole set sterilizer units, ice cream shole set equipment, concentrators,degassing units,tanks and vessels etc,.providing achain of services including design,manufacturing,installation,commissioning and training etc.for the equipment and projects.Thanks to its richexperience in the production of heat exchangers and sterilizers,the company has become a leader in the industry of heatexchangers and sterilizers.The products are widely applied indairy, fruit beverage,brewage,chemical industry,electricpower and agriculture etc.Industries.

Shanghai Changlong Industrial Equipment Co.,Ltd.has many designers specialized in the application of heat exchangers and sterilizers,invites experienced experts from dairy industry as technical consultants and employs professiona engineers to design the series units, so as to guarantee safe and reliabgle operation of the equipement.

The feeding pump automatic control device of the sterilizer,the nozzle device of the degasser and the heat exchange stheet designed by the company have been granted nationalpatents.The registered trademarks approved by State Administration for Industry & Commerce have been applied in 45 industries,and under the approval of China Council for the Promotion of International Trade,they have been success fully registered in Russia and Japan etc. Countries.

Changlong products have passed the inspection by National Quality Supervision and Inspection Center,and the product quality is guaranteed due to strict implementation of ISO9001:2000 international quality management system.Some products have been awarded Technical Results Transformation Prize fo Shanghai and New Product PLan Prize of Shanghai.Now Changlong Enterprise has become a high-tech enterprise.

Changlong products not only enjoy high reputation in the country,but also have been exported to Germany,Japan,Australia,Russia,Southeast Asia and Mid East untries and areas.It has also established Australia Changlong Company in Australia,Which has made it more convenient and prompt to push domestic products to the world.
