Specifications
diesel generator1.standby power 6kw
pper wire,circuit breaker,AVR
3.recoil (hand )start or electric
4.trailer wheels

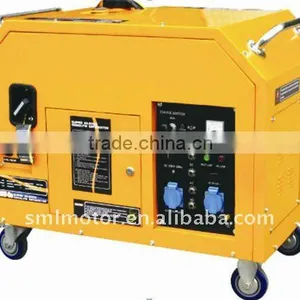

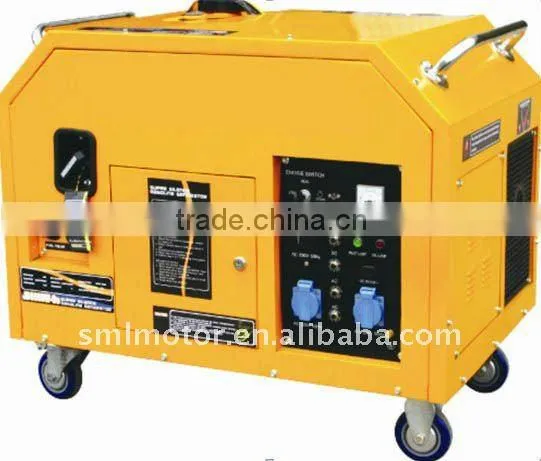

China Manufacturer !! portable diesel generator 6kw
5.0kw rated output
- One year warranty
- Container order with 3% free extra spare part
- New Automatic Voltage Regulator
low Oil Pressure Alarm System
Electric starting system
Best After-sale Service
Diesel Generator Characteristics :
1)Silent diesel generator
2)12 volt D.C. auxiliary charging
3)Circuit breaker
4)AVR alternator
5)Emergency low oil shutdown system
Diesel Generator Features:
1. Rated power: 3kw , 5kw , 7kVA,15KVA-200KVA
2. 178, 186 ,188 engine, air cooled , single /3-phase
3. air-cooled engine, brushless alterator with capacitor
1- coupled to a reliable and fun cooling diesel engine so it is compact in structure ,light in weight,low fuel consumption and convenient for operating.
2- low oli shutdown stops the engine immediately when the lube oil drops below a safe level so it can avoid to the damage and loss
3- durable-4 sheel rolling structure fortability and operating indoors or outdoors
4- no fuse circuit breaker provides overload protection
5- large fuel tank ensures hours of continuous running
6- inside it is coupledto high efficient noise-proof materials,virbrations-reducing structure combine to a form a silent machine
Diesel generator colours Series:
| Air-cooled Diesel Generator Sets (Single Phase) | ||||||
| Model | SML3GF-LN | SML5GF-LN | SML6GF-LN | |||
| Rated frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated voltage(v) | 110,120,220,230,240,220/110,240/120 | |||||
| rated output power(kw) | 2.8 | 3.3 | 4.2 | 5 | 5 | 5.5 |
| Max output power(kw) | 3 | 3.6 | 5 | 5.5 | 5.5 | 6 |
| Dc output | 12V-8.3A | |||||
| Power factor cos1 | 1 | |||||
| Phase number | Single-phase | |||||
| Fuel tank capacity (l) | 16 | |||||
| Continuour running time (hr)(at rated power) | 12.5 | 11.5 | 8.5 | 7.5 | 8.5 | 7.5 |
| Noise level{db(A)/7m}(zero load-full load) | 70-74 | |||||
| Overall dimension{mm}(LXWXH) | 825*520*740 | 910*520*740 | 935*520*715 | |||
| Packing dimension {mm}(lXWXH) | 855*550*780 | 950*550*780 | 960*550*770 | |||
| Net weight kg | 132 | 156 | 171 | |||
| Gross weight kg | 150 | 170 | 185 | |||
| starter system | electric starter | |||||
| Engine model | 178FGE | 186FGE | 186FAGE | |||
| Engine type | Single cylinder,4-stroke,air-cooled,vertical,diesel engine | |||||
| Bore*stroke(mm) | 78*62 | 86*70 | 86*72 | |||
| Displancement (cc) | 296 | 406 | 418 | |||
| Rated rotation speed (rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
Run steadily.Small size.Light.With wheel.Easily moved.Very convenice.Fuel-efficient,Excellent performance, economic use, long service life.Light and easy to move.
Diesel Generator Warranty policy
Guarantee for one year or 1200 hours whichever reach first from ex-factory date ,During the guarantee period ,Saint will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material,After expiration ,"Saint "provides cose spare pars maintenance of gensets.
