Specifications
diesel generatorCE ISO SONCAP
china changfa engine diesel
silent canopy,low noise copper wire alternator
6 months warranty

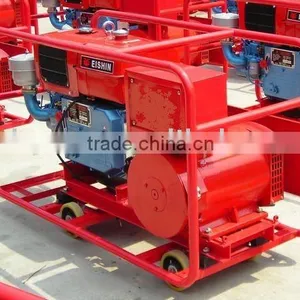

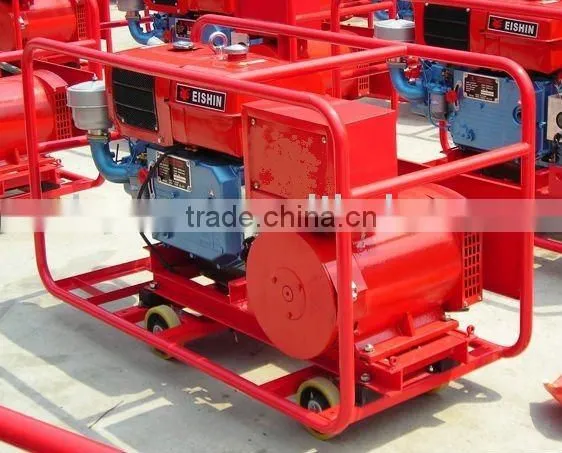

GF1 Quanchai 1-cylinder portable diesel generator
Fram cover---Safe protection.
4 pole alternator
Alternator---Easy maintenance.
Radiator diesel---Simple using.
Electric starter---Convenient operation.
Four wheels rolling frame---Easy moving.

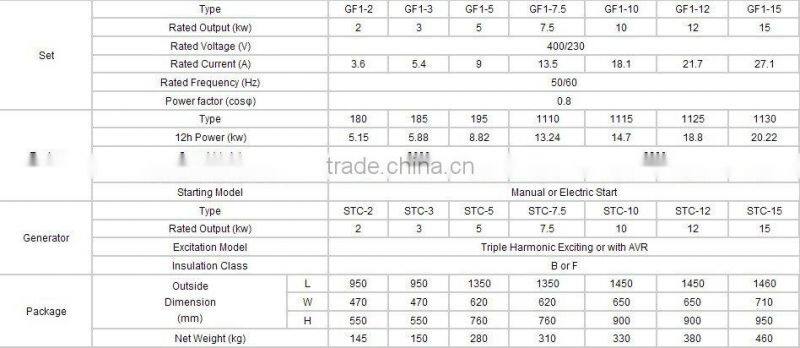

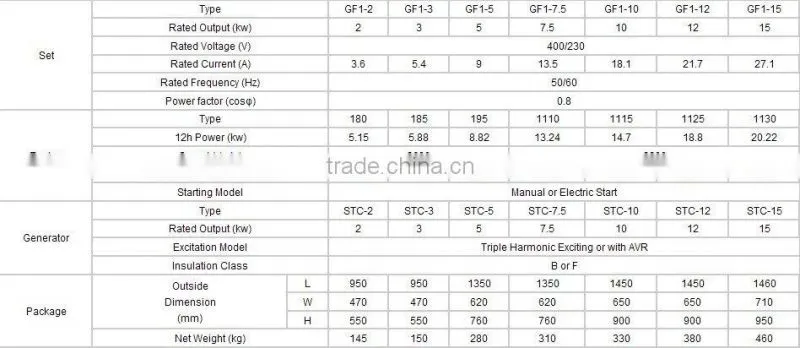

Detailed product description:
1) Rated output: 3kw-20kw
2) Rated voltage: 400 / 230V, 380 / 220, 220 / 120
3) Rated frequency: 50 / 60Hz
4) Power factor: 0.8.
5)Protection:IP21 or IP23
6)Insulation :F
7)Type /diesel engine:Quanchai ,Changying ,single-cylinder ,four-stroke ,air or water cooled
8)Starting system: manual /electric start
9)Connecting model:belt
Engine: Changchai DIESEL engine
1)Cooling method: closed water cooling or air force cooled
2)Starting method: electric start.
3)Rated speed: 1,500 / 1,800rpm
4) Noise level: 65dB to 75dB 7 meter away
Alternator:
1) Brand: Stamford or Leroysomer or Our SNOOD series
2) Rated output: 8kw to 2000kw
3) Rated voltage: 400 / 230V according to your requested
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,500rpm / 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic
12) 1.0% voltage regulation (max.) in static conditions
13) Protection class: IP 22 or IP23
14)Connect with engine:Direct coupled with flywheel
Control panel:
1) The generator control panel is manufactured locally by
2) The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer system)
i) With EPA certification
Packing:
Wooden case or plywood case
Remark:Control panel(including Automatic protection):low and high frequency,low oil pressure protection and high water temperature protection
Synchronization panel is available at our factory.
Warranty:Guarantee for one year or 1200hours
